With Manufacturer's Scan Tool




Using LEXUS hand-held tester, check the DTC.

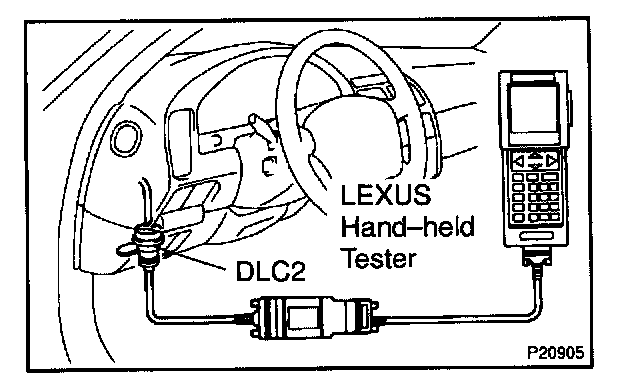

1. Hook up the LEXUS hand-held tester to the DLC2.
2. Read the DTCs by following the prompts on the tester screen.
Please refer to the LEXUS hand-held tester operators manual.
