Vehicle Height Control Prohibition/Actuator Check Mode

HINT: The vehicle height control prohibition and actuator check mode is activated as follows.

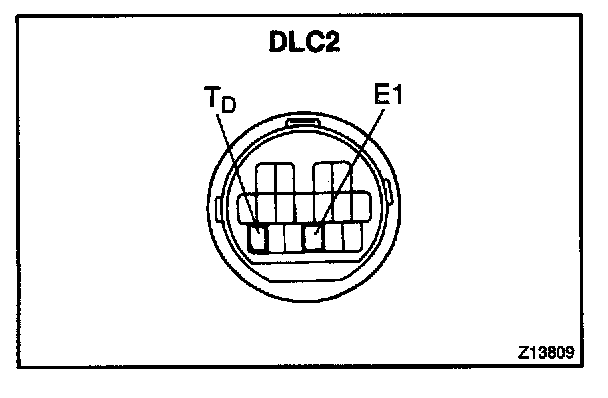

a. Using SST, connect between terminals TD and E1 of DLC2.
SST 09843-18020
b. Turn the ignition switch ON.

HINT:
- As you enter the mode, switch the suspension control actuator to soft for all 4 wheels.
- While in the mode, the height control indicator light blinks at 0.5 second intervals.

NOTE:
- Before jacking up the vehicle when the engine has been run, always first put the vehicle into this mode.
- If the vehicle height is particularly low when the vehicle is jacking down, return the vehicle height to the standard height either start the engine or using the height control connectors, then move the vehicle.
