TD Terminal Circuit

CIRCUIT DESCRIPTION
By connecting terminals TD and E1 of the DLC2, the vehicle height control is not carried out.

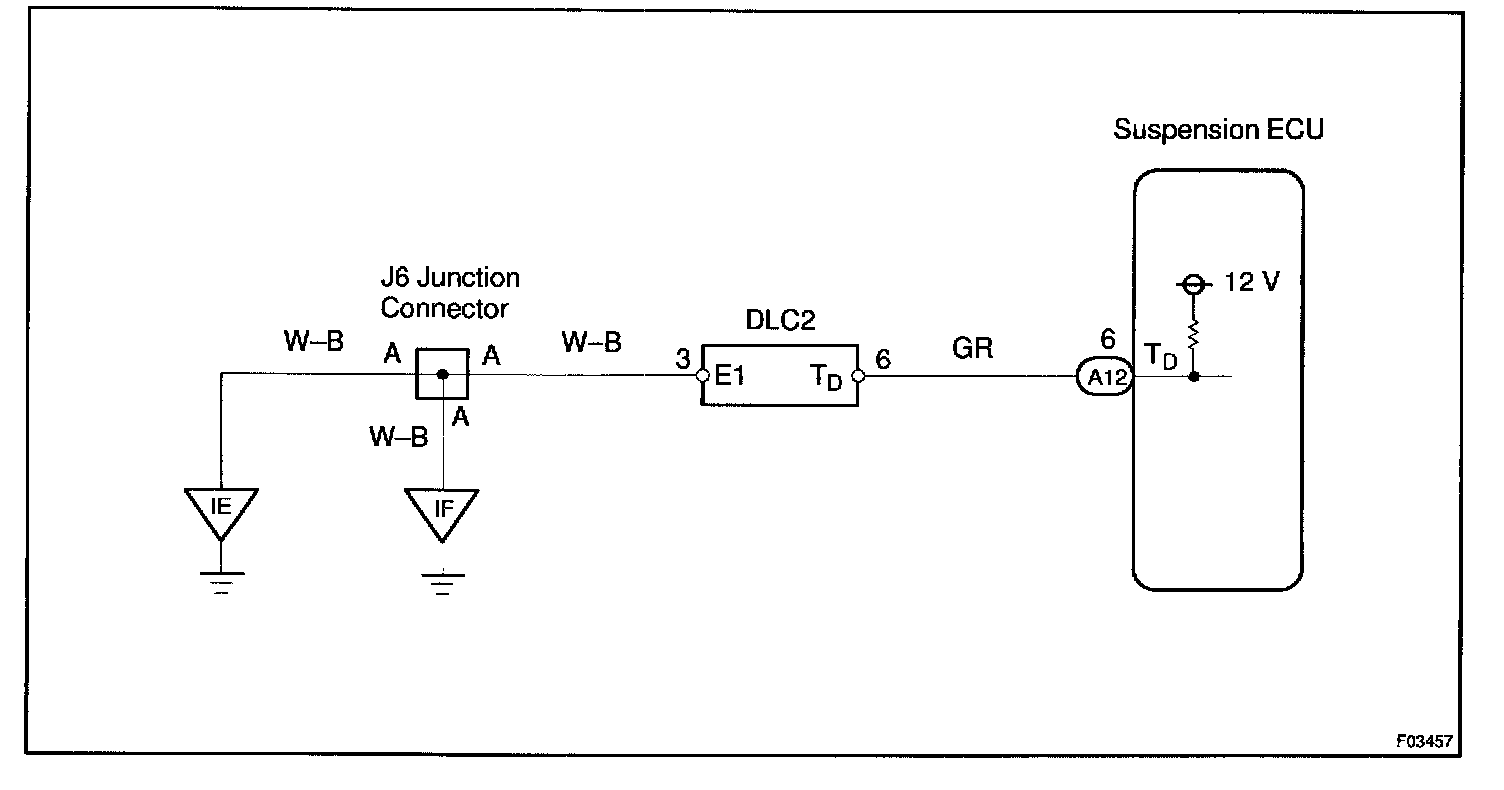

WIRING DIAGRAM

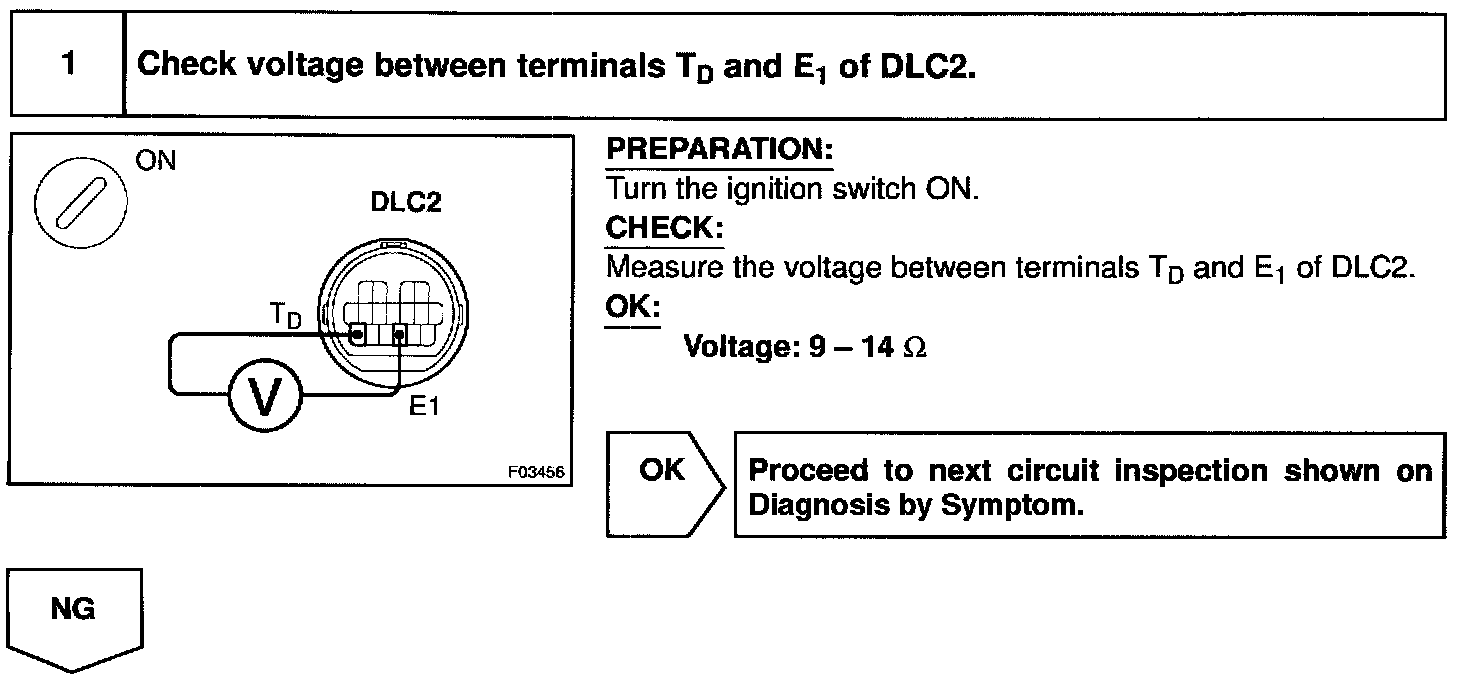

Step 1:

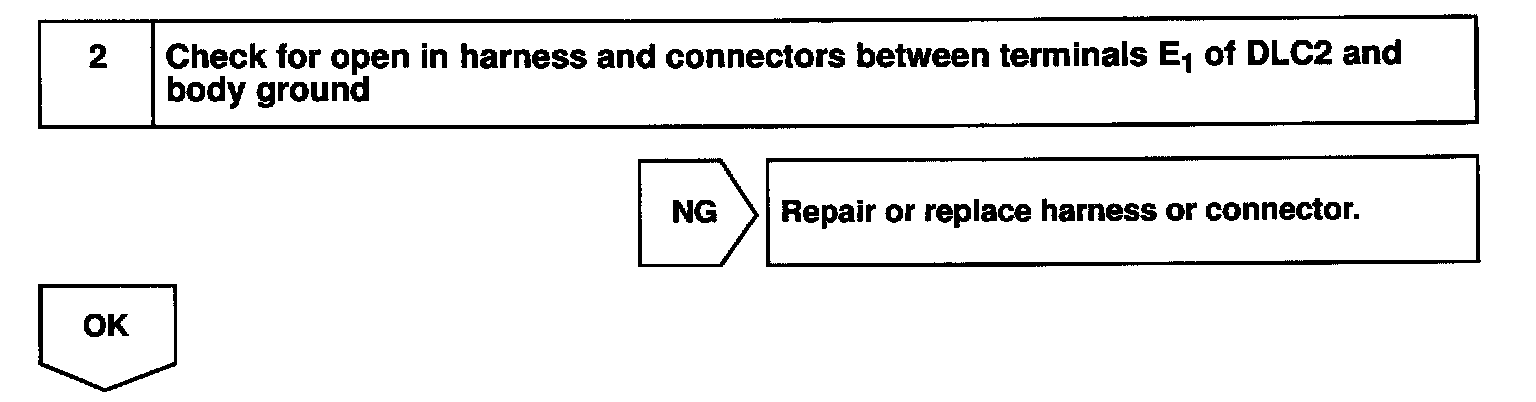

Step 2:

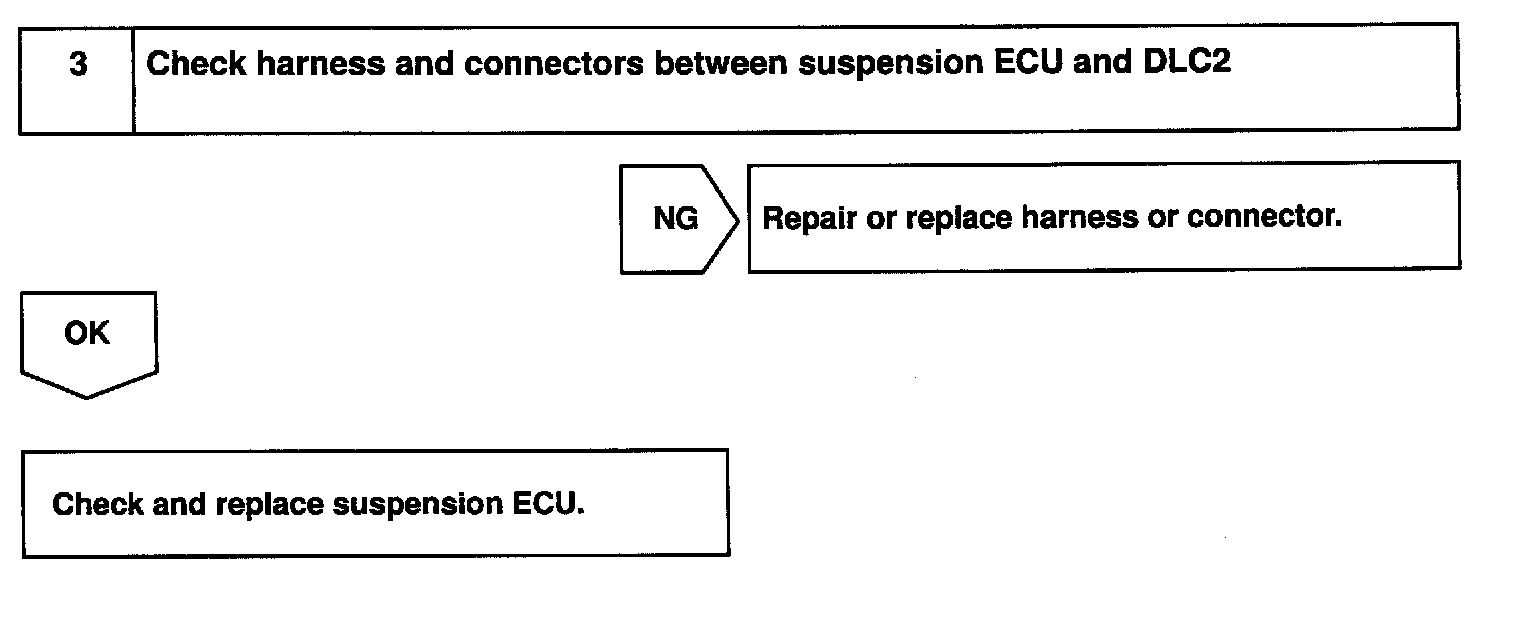

Step 3:

INSPECTION PROCEDURE
