Indicator Light Check

DIAGNOSIS SYSTEM




Check the indicator light.
1. Turn ignition switch ON.

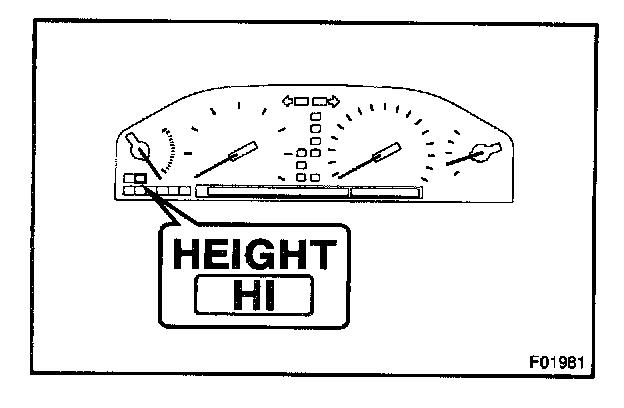

2. Check that height control indicator lights come on immediately.

HINT:
- When the height control switch is pressed to the "HIGH" side, the height control indicator light continues to light up.
- When the height control indicator light flashes at 1 second intervals, it indicates that the ECU stores the malfunction codes in memory.

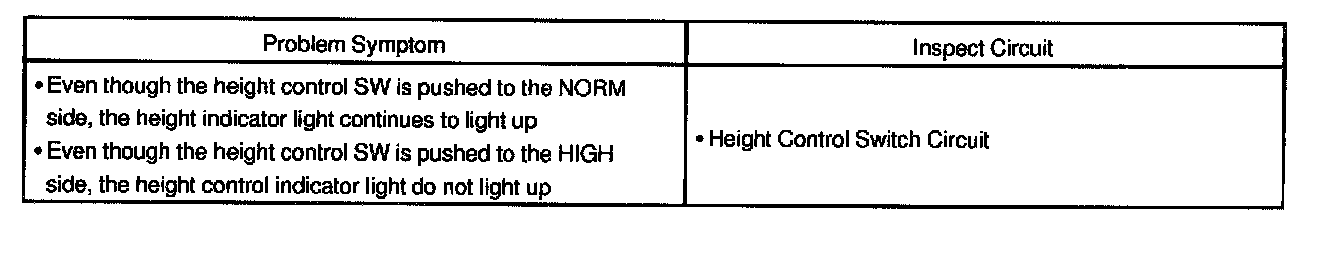

If the following troubles occur in the indicator light check, proceed to check the corresponding circuit and carry out troubleshooting.
