Compressor/Pump: Service and Repair

REMOVAL
1. REMOVE FRONT RIGHT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
2. REMOVE FRONT RIGHT FENDER LINER
3. REMOVE HEIGHT CONTROL COMPRESSOR AND DRYER

HINT: At the time of installation, after installation, check for air leakage. Refer to Electronic Level Control; Testing and Inspection.

a. Remove the connector.
b. Remove the air tube.
1. Remove the holder.
2. Spread the clip and pull the air tube out straight and slowly.

NOTICE: Do not get scratches or foreign particles on the ring, ring seal and flare section.

HINT: At the time of installation, please refer to the following items.
^ If replacing the ring, coat it with MP grease.
^ Push the air tube in straight to connect it until the clip makes "click" sound.

3. Remove the clip.

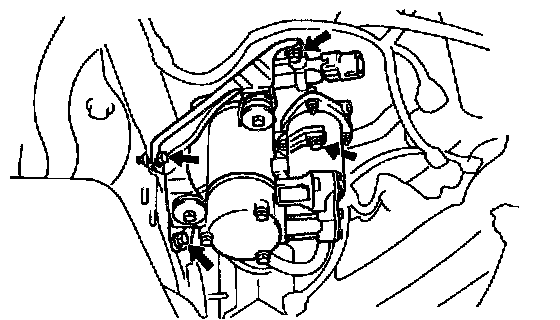

c. Remove the 4 bolts and the height control compressor and dryer with the bracket.
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.)





d. Remove the 3 bolts and the bracket from the height control compressor.
Torque: 5.9 Nm (60 kgf-cm, 52 inch lbs.)
e. Remove the bolt and the dryer from the height control compressor.
Torque: 6.4 Nm (65 kgf-cm, 56 inch lbs.)

NOTICE: Slowly pull out or push in the dryer along the dryer axis and do not damage the O-ring on the compressor side.

HINT: At the time of installation, if replacing the O-ring, coat it with MP grease.

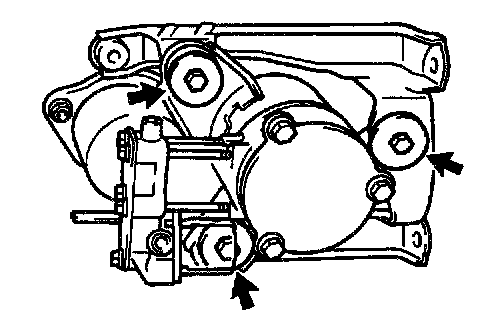

4. REMOVE BUSHING AND SPACER


INSTALLATION
Installation is in the reverse order of removal.
