Removal and Installation

REMOVAL
1. REMOVE ENGINE UNDER COVER
Remove the 9 bolts, 6 screws, 2 clips and engine under cover.
2. REMOVE RH REAR ENGINE UNDER COVER
Remove the 3 bolts and RH rear engine under cover.
3. REMOVE AIR CLEANER INLET AND BATTERY CLAMP COVER
Remove the bolt, air cleaner inlet and battery clamp cover.
4. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
a. Disconnect the MAF meter connector.
b. Remove the clamp.
c. Remove the 3 bolts and air cleaner assembly with air cleaner hose.
5. REMOVE BRAKE ACTUATOR ASSEMBLY. Refer to Brakes and Traction Control; Antilock Brake System.





6. REMOVE DRIVE BELT

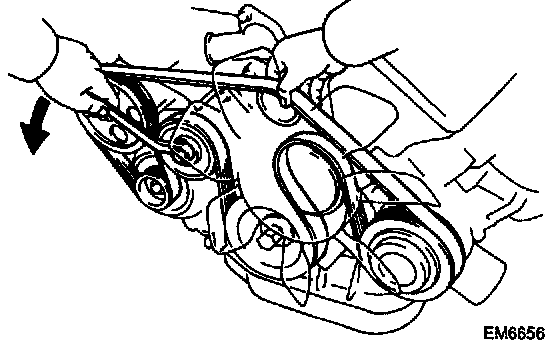

Loosen the drive belt tension by turning the drive belt tensioner counterclockwise, and remove the drive belt.
7. DISCONNECT 2 VACUUM HOSES
Remove the 2 clips and disconnect the 2 vacuum hoses.
8. DISCONNECT RETURN HOSE
Remove the clip and disconnect the return hose.
9. DISCONNECT PRESSURE FEED TUBE
Remove the union bolt and gasket, and disconnect the pressure feed tube.
10. REMOVE PS VANE PUMP ASSEMBLY
Remove the 2 bolts, nut and PS vane pump assembly.


INSTALLATION
1. INSTALL PS VANE PUMP ASSEMBLY
Install the PS vane pump assembly with the 2 bolts and nut.
Torque:
Bolt: 39 Nm (400 kgf-cm, 29 ft. lbs.)
Nut: 43 Nm (440 kgf-cm, 32 ft. lbs.)





2. INSTALL PRESSURE FEED TUBE
Install a new gasket, then connect the pressure feed tube with the union bolt.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)

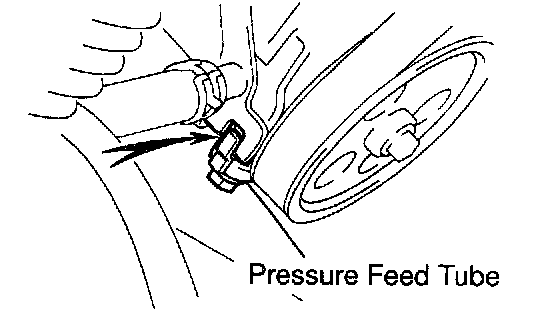

HINT: Make sure the stopper of the pressure feed tube touches the PS vane pump body as shown in the illustration, then torque the union bolt.

3. CONNECT RETURN HOSE
Connect the return hose with the clip.
4. CONNECT 2 VACUUM HOSES
Connect the 2 vacuum hoses with the 2 clips.





5. INSTALL DRIVE BELT
Loosen the drive belt tension by turning the drive belt tensioner counterclockwise, and install the belt.
6. INSTALL BRAKE ACTUATOR ASSEMBLY. Refer to Brakes and Traction Control; Antilock Brake System.
7. INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
a. Install the air cleaner assembly with air cleaner hose with the 3 bolts.
b. Install the clamp.
c. Connect the MAF meter connector.
8. INSTALL AIR CLEANER INLET AND BATTERY CLAMP COVER
Install the air cleaner inlet and battery clamp cover with the bolt.
9. INSTALL RH REAR ENGINE UNDER COVER
Install the RH rear engine under cover with the 3 bolts.
10. INSTALL ENGINE UNDER COVER
Install the engine under cover with the 9 bolts, 6 screws and 2 clips.
11. BLEED POWER STEERING SYSTEM. Refer to Steering; Service and Repair.
