Ignition Control Module: Testing and Inspection

INSPECTION PROCEDURE

Steps 1 - 2:

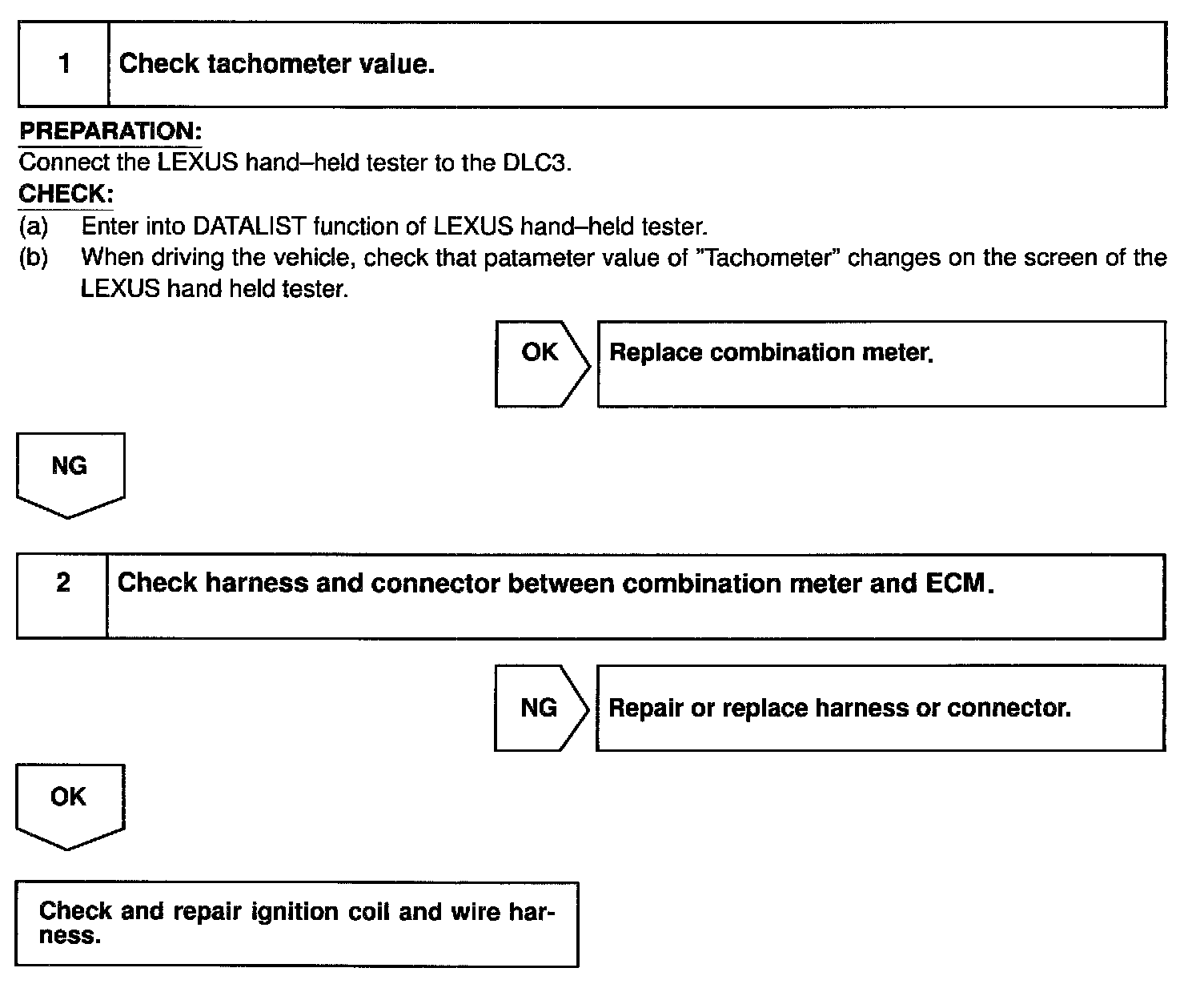

When using LEXUS hand-held tester:

Steps 1 - 2:




When not using LEXUS hand-held tester:
