Headlamp Dimmer Relay: Testing and Inspection

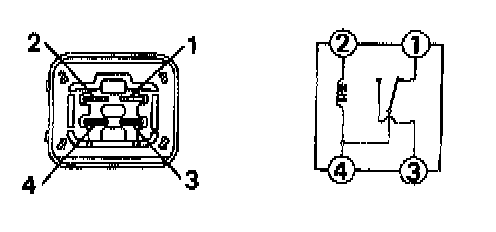

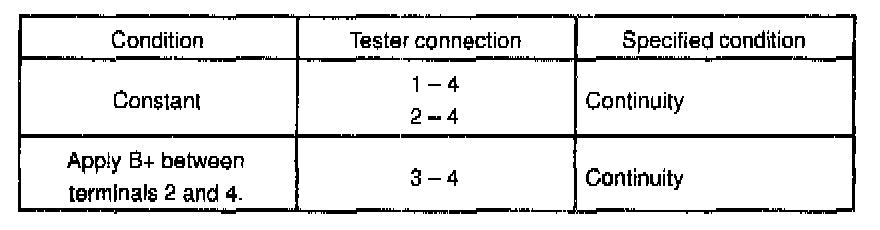

INSPECT HEADLIGHT DIMMER AND DAYTIME RUNNING LIGHT NO. 2 RELAY CONTINUITY
If continuity is not as specified, replace the relay.
