Fuel Pump Ballast Resistor: Testing and Inspection

COMPONENTS

INSPECTION

INSPECT FUEL PUMP RESISTOR

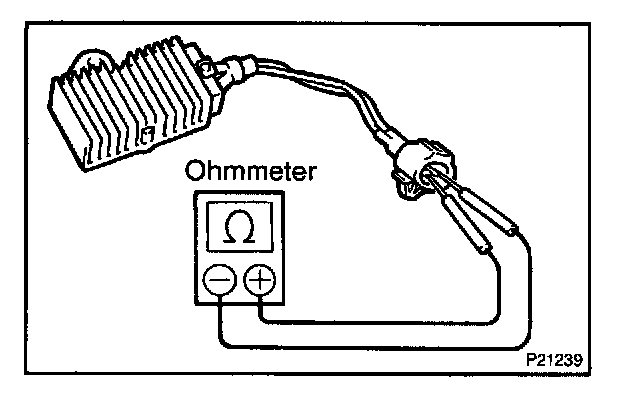

Using an ohmmeter, measure the resistance between the terminals.
Resistance: 0.70 - 0.76 ohms at 20 °C (68 °F)
If the resistance is not as specified, replace the resistor.
