Theft Deterrent Horn Circuit

CIRCUIT DESCRIPTION
During warning of the theft deterrent system, the Body ECU activates the theft deterrent horn.

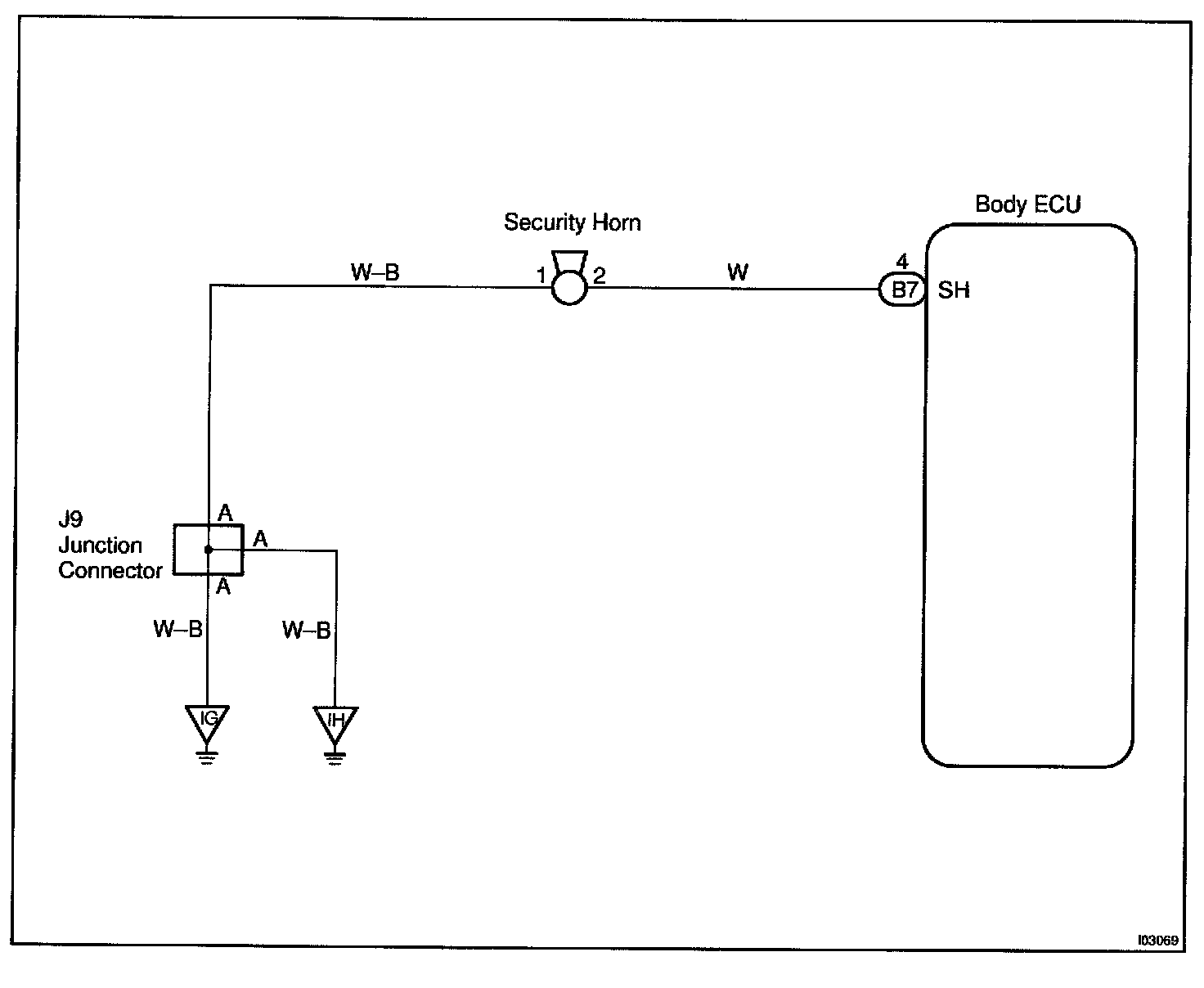

Wiring Diagram:

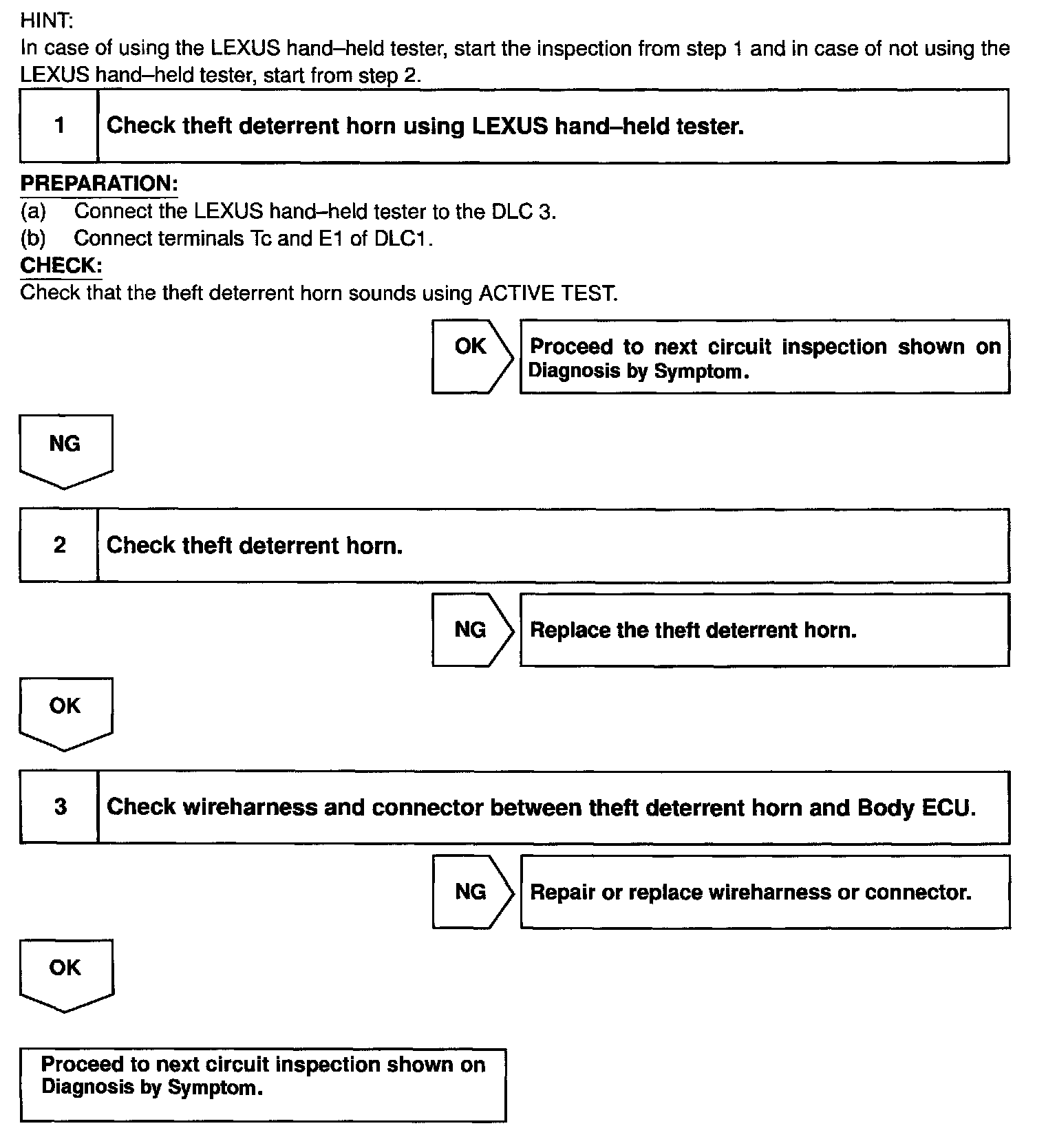

Steps 1 - 3:




INSPECTION PROCEDURE
