Hazard Switch Circuit

CIRCUIT DESCRIPTION
Body ECU activates the flasher relay during warning of the theft deterrent system and flashers the hazard.

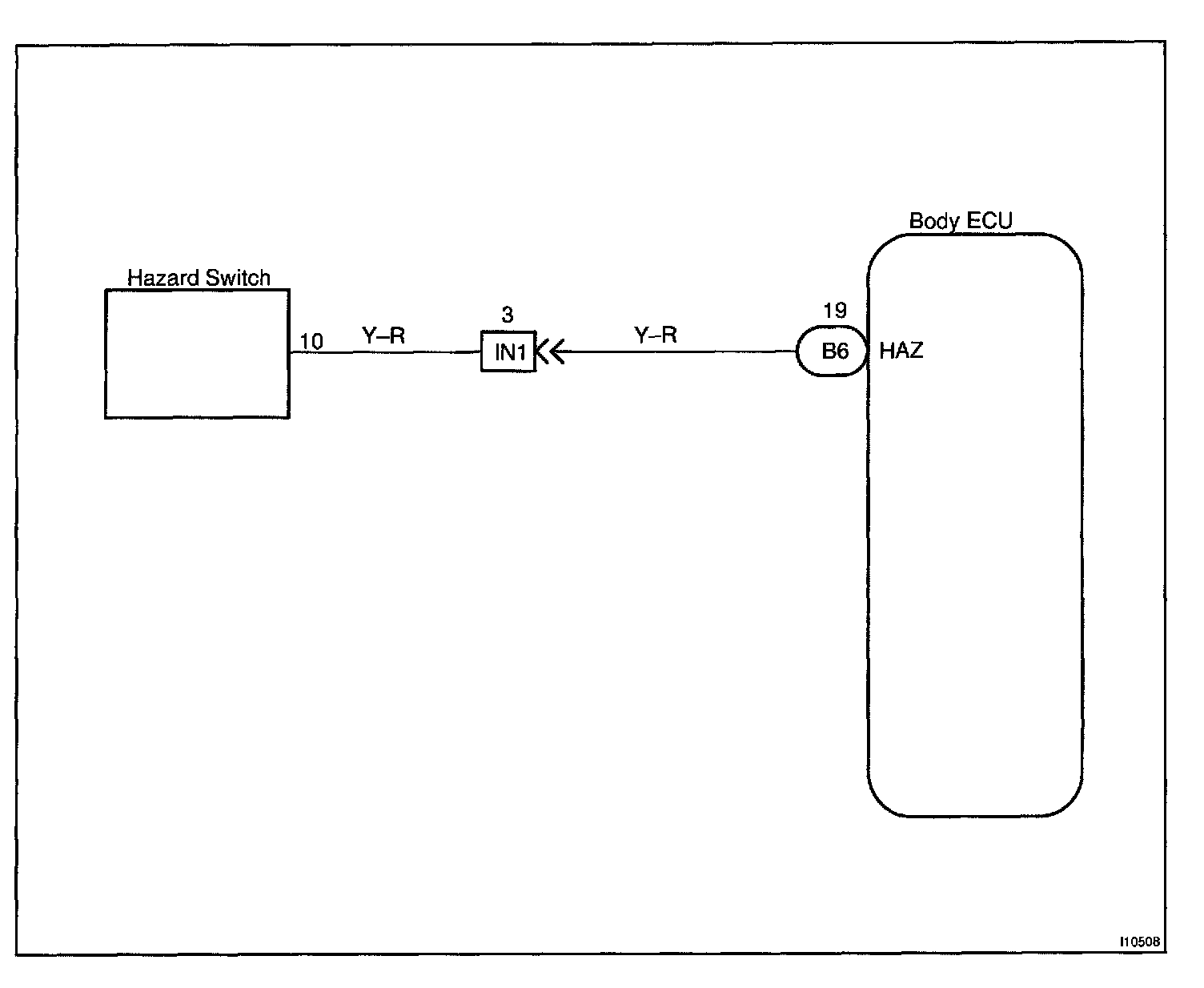

Wiring Diagram:

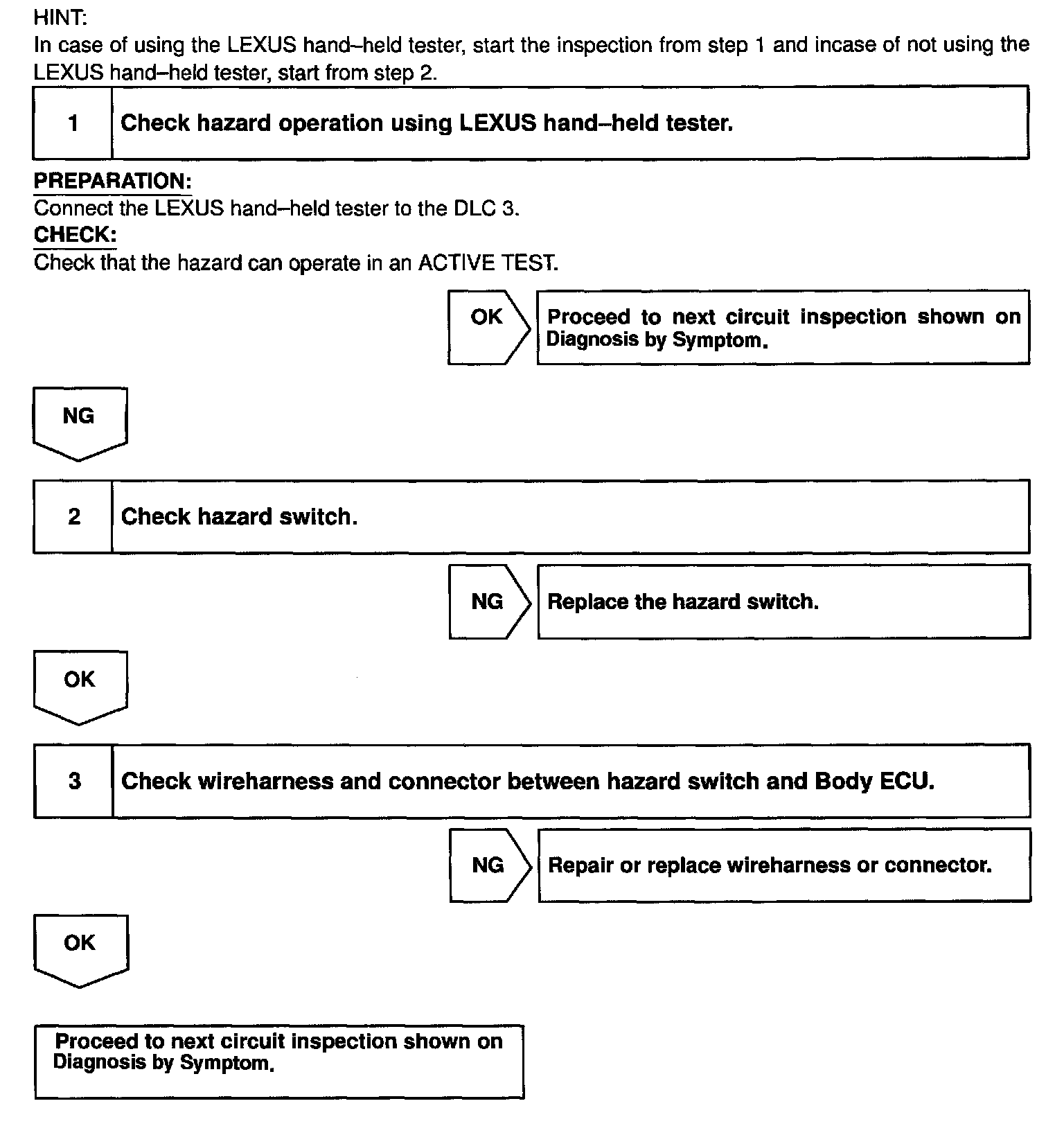

Steps 1 - 3:




INSPECTION PROCEDURE
