Max Cool Damper Control Servomotor Circuit (Passenger Side)

CIRCUIT DESCRIPTION
The max. cool servomotor is controlled by the A/C control assembly and moves the max. cool damper to the desired position.

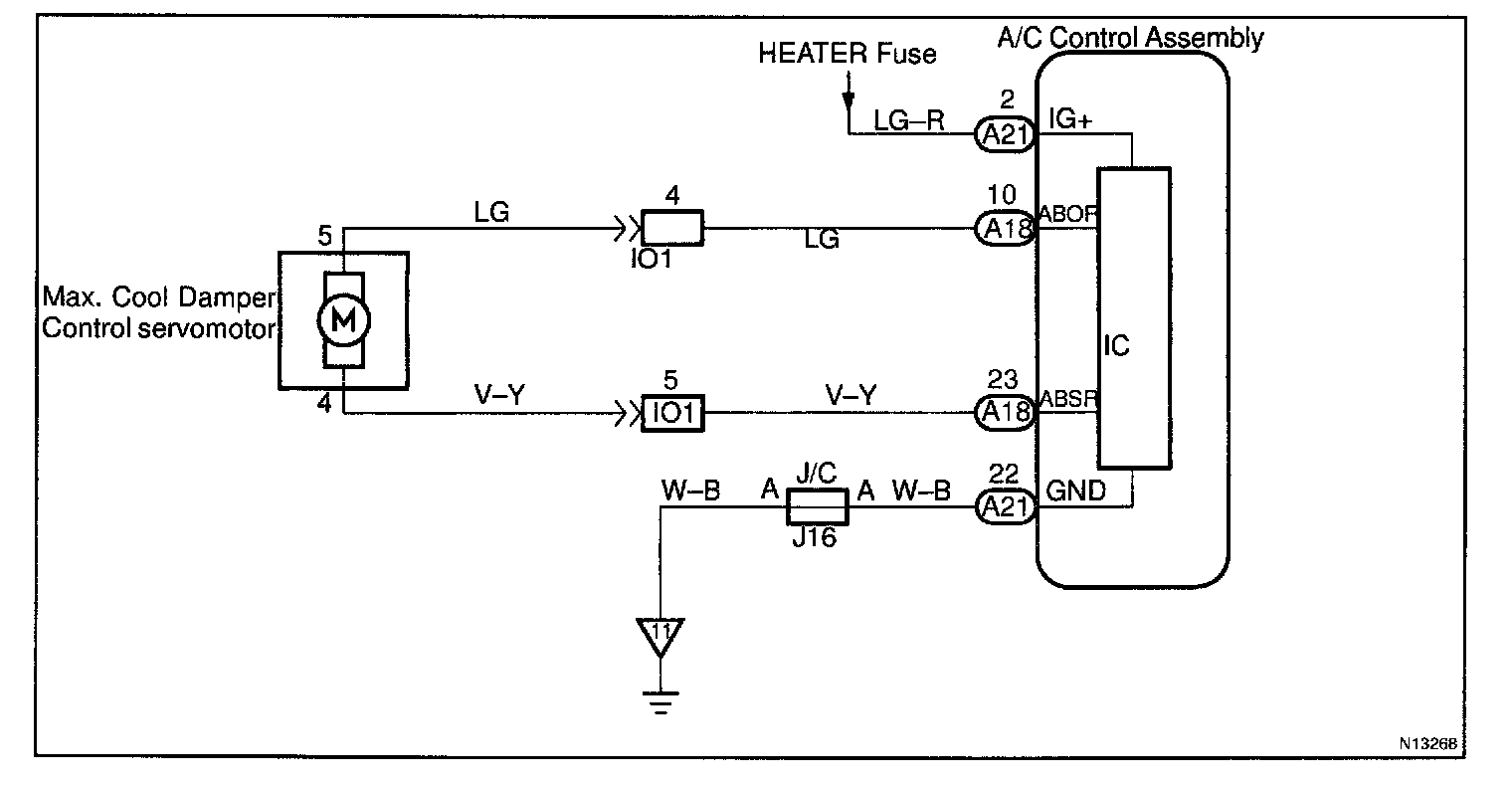

Wiring Diagram:

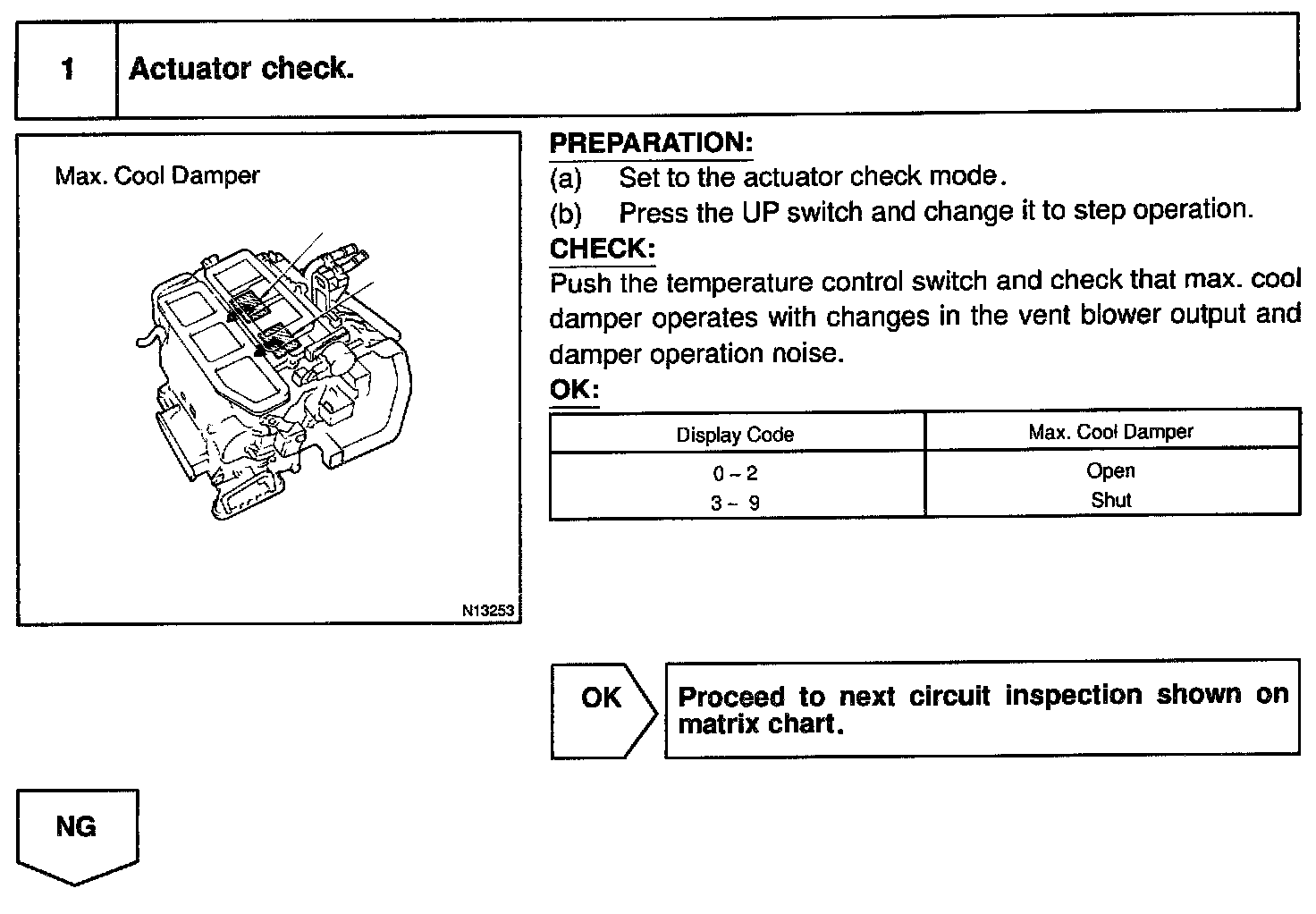

Step 1:

Steps 2 - 3:

INSPECTION PROCEDURE
