Max Cool Damper Control Servomotor Circuit (Driver Side)

CIRCUIT DESCRIPTION
The max. cool servomotor is controlled by the A/C control assembly and moves the max. cool damper to the desired position.

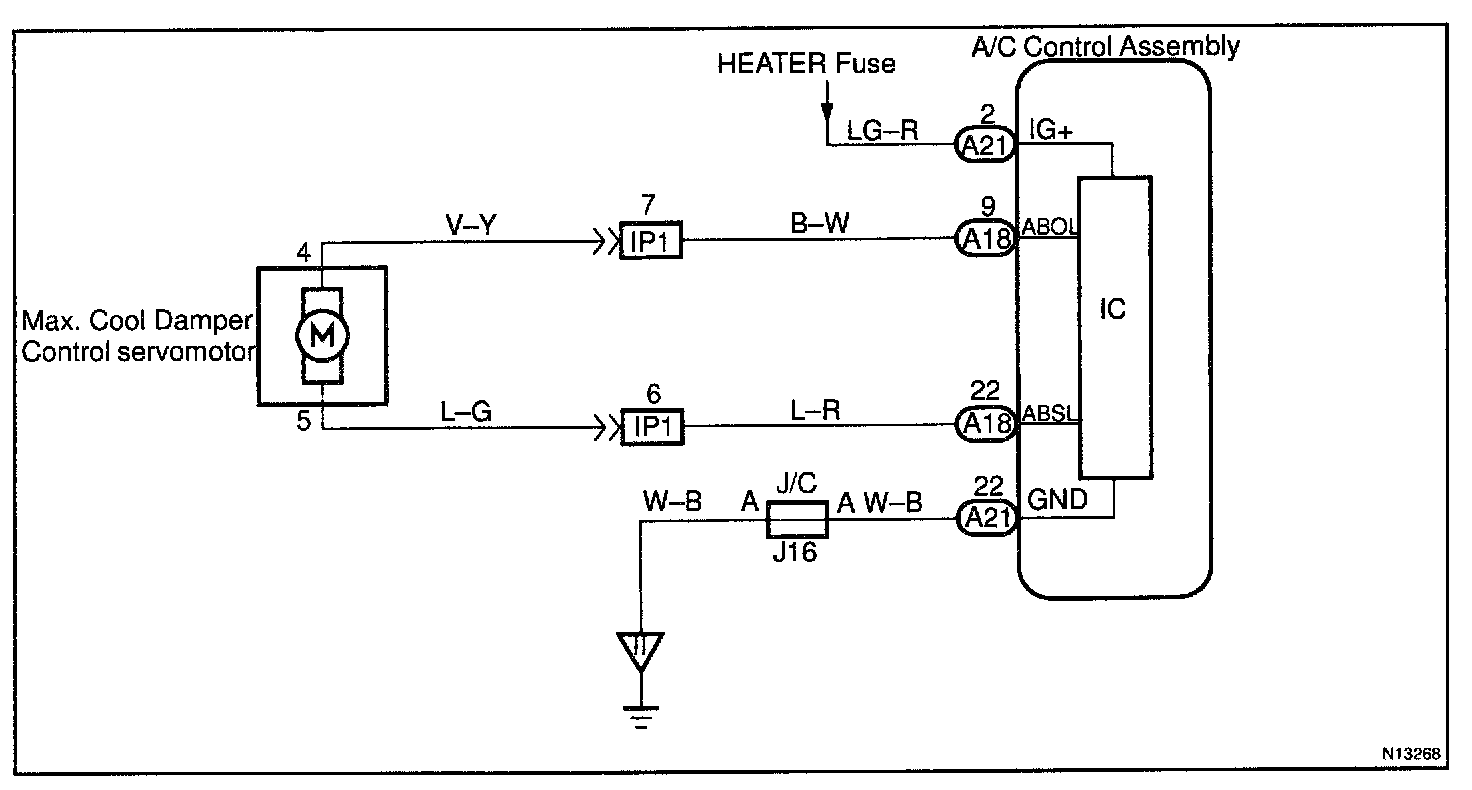

Wiring Diagram:

Steps 1 - 2:

Step 3:

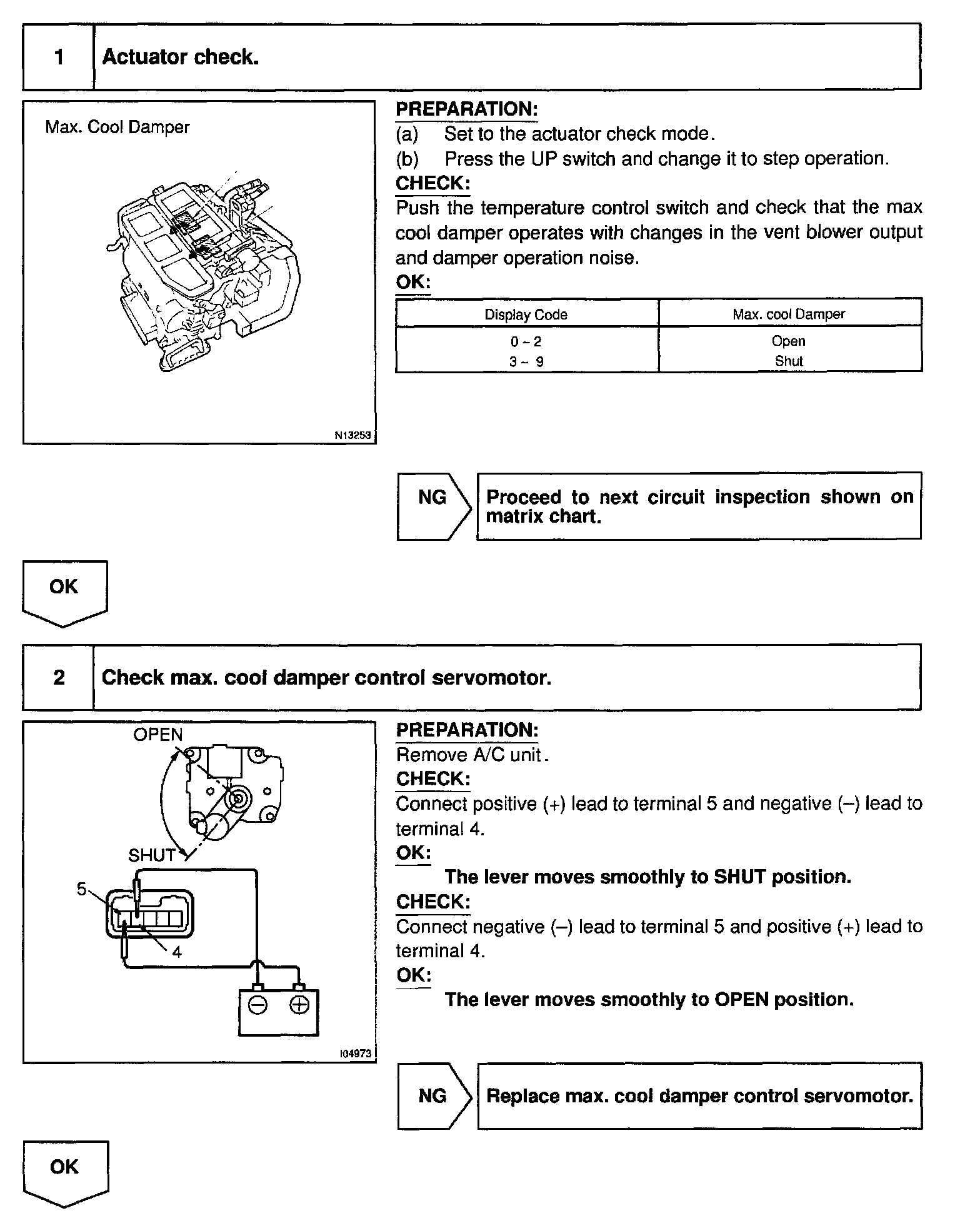

INSPECTION PROCEDURE
