Blower Motor Relay: Service and Repair

REMOVAL

1. REMOVE THESE PARTS:
a. Front door scuff plate RH
b. Cowl side trim RH
c. No.2 under cover

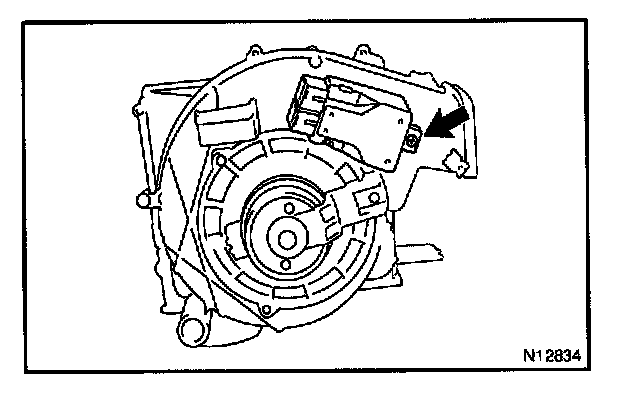

2. REMOVE BLOWER MOTOR CONTROL RELAY
a. Disconnect the connectors.
b. Remove the screw and blower motor control relay.

INSTALLATION
Installation is in the reverse order of removal
