Receiver Dryer: Service and Repair

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM

HINT:
At the time of installation, please refer to the following item.
Evacuate air from refrigeration system.
Charge system with refrigerant and inspect for leakage of refrigerant.

Specified amount : 700 ± 50 g (24.69 ± 1.76 oz.)

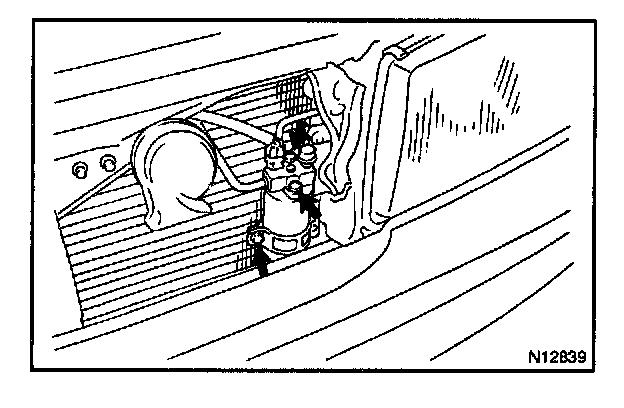

2. DISCONNECT 2 LIQUID TUBES
Remove the 2 bolts and disconnect the both tubes.
Torque: 5.4 Nm (55 kg.cm, 48 in.lb)

NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

HINT:
At the time of installation, please refer to the following item.
Lubricate 2 new O-rings with compressor oil and install the tubes.

3. REMOVE RECEIVER
Remove the holder bolt and pull out the receiver.

HINT:
At the time of installation, please refer to the following item.
If receiver is replaced, add compressor oil to receiver.
Add 10 cc (0.34 fl.oz.)
Compressor oil: ND-OIL 8 or equivalent

INSTALLATION
Installation is in the reverse order of removal
