Without Electrical Multi Vision

REMOVAL

1. REMOVE THESE PARTS:
a. Cluster finish panel
b. No.2 register

2. REMOVE A/C CONTROL ASSEMBLY

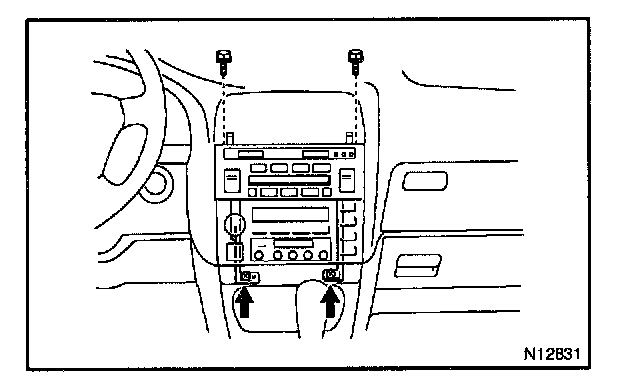

a. Remove the 4 bolts and pull out A/C control assembly, then disconnect the connectors.




b. Remove the 2 screws and A/C control assembly from the radio.

INSTALLATION
Installation is in the reverse order of removal
