Disassembly and Reassembly

DISASSEMBLY

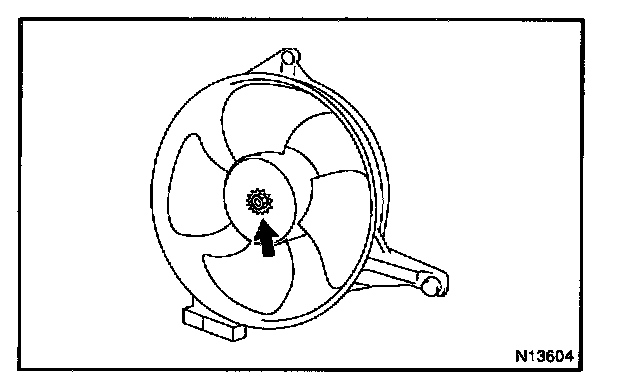

1. REMOVE FAN
Remove the nut and fan.




2. REMOVE FAN RESISTOR

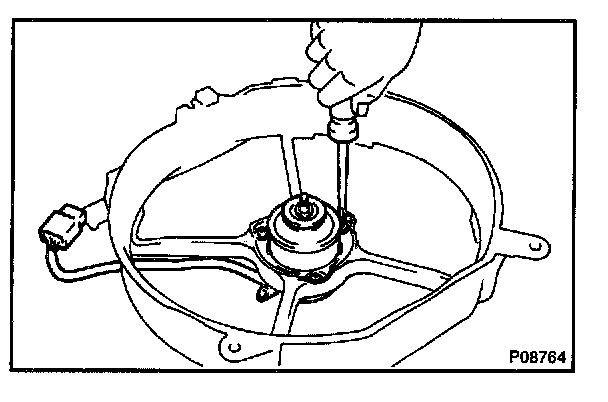

3. REMOVE FAN MOTOR
a. Disconnect the wire harness and connector from the fan shroud.
b. Remove the 3 screws and fan motor.

REASSEMBLY
Reassembly is in the reverse order of disassembly
