Air Mix Control Motor

REMOVAL
Air Inlet, Outlet, and Mix Servomotors

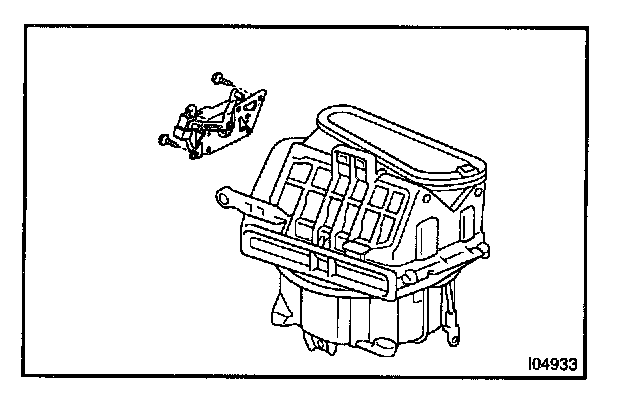

1. REMOVE AIR INLET SERVOMOTOR
a. Remove the blower unit.




b. Remove the air inlet servomotor.
1. Disconnect the connector.
2. Remove the screw and servomotor.

2. REMOVE AIR MIX SERVOMOTOR

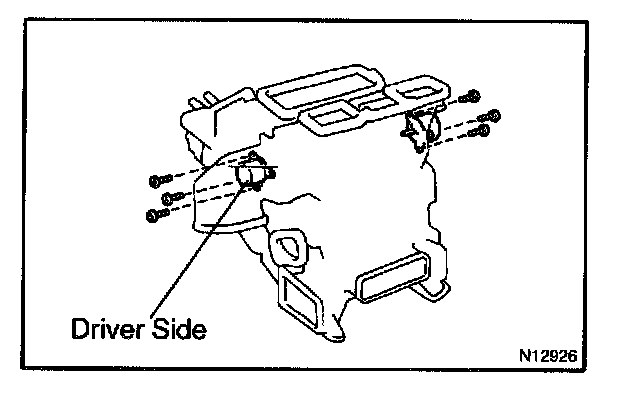

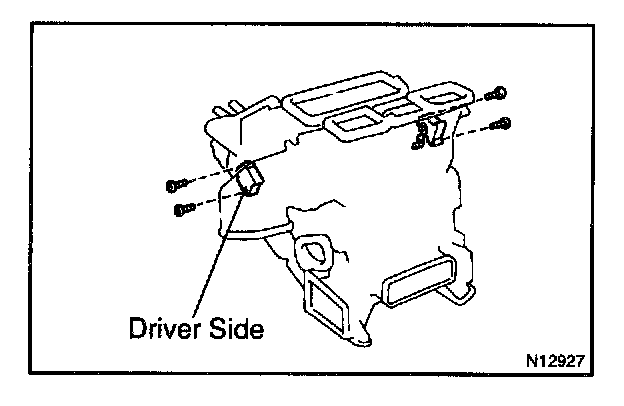

a. Driver Side:
Remove the air mix servomotor.
1. Remove these parts:
- No.1 under cover
- No.1 safety pad
- No.2 heater to register duct




2. Disconnect the connector.
3. Remove the 3 screws and servomotor.

HINT: Be careful not to pull out the pulley, when removing servomotor.

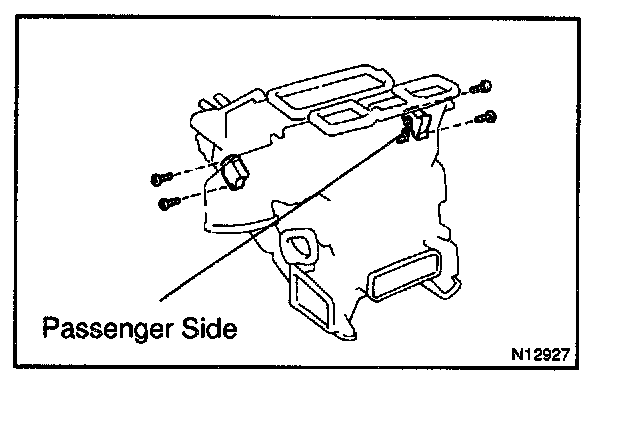

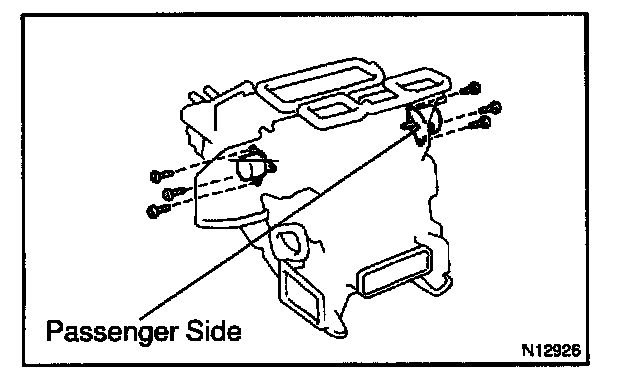

b. Passenger Side:
Remove the air mix servomotor.
1. Remove the blower unit.




2. Disconnect the connector.
3. Remove the 3 screws and servomotor.

HINT: Be careful not to pull out the pulley, when removing servomotor.

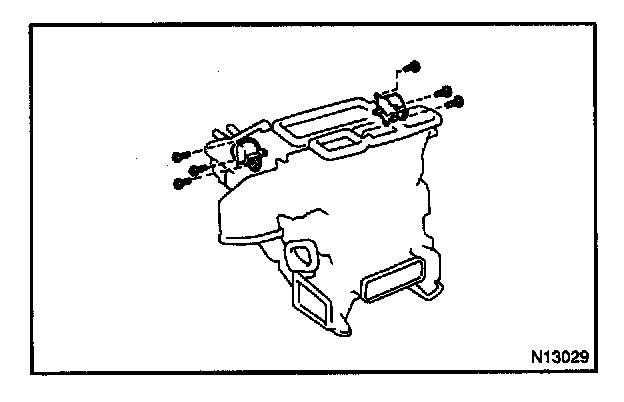

3. REMOVE AIR OUTLET SERVOMOTORS
a. Remove the A/C unit.




b. Remove the air outlet servomotors
1. Disconnect the connectors.
2. Remove the 6 screws and both servomotors.

HINT: Be careful not to pull out the pulley, when removing servomotor.

b. Passenger Side:
Remove the air mix servomotor.
1. Remove the blower unit.




2. Disconnect the connector.
3. Remove the 3 screws and servomotor.

HINT: Be careful not to pull out the pulley, when removing servomotor.

3. REMOVE AIR OUTLET SERVOMOTORS
a. Remove the A/C unit.




b. Remove the air outlet servomotors
1. Disconnect the connectors.
2. Remove the 6 screws and both servomotors.

HINT: Be careful not to pull out the pulley, when removing servomotor.

4. REMOVE COOL AIR BY-PASS DAMPER CONTROL SERVOMOTOR

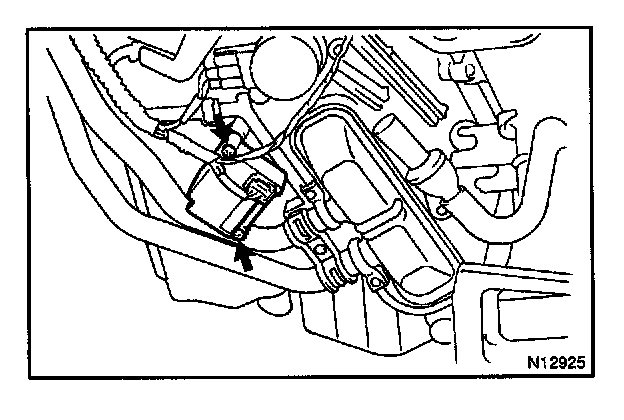

a. Driver Side:
Remove the cool air by-pass damper control servomotor.
1. Remove the instrument panel.




2. Disconnect the connector.
3. Disconnect the cool air by-pass damper control cable.
4. Remove the 2 screws and servomotor.

b. Passenger Side:
Remove cool air by-pass damper control servomotor.
1. Remove the blower unit.




2. Disconnect the connector.
3. Disconnect the cool air by-pass damper control cable.
4. Remove the 2 screws and servomotor.

5. REMOVE WATER VALVE CONTROL SERVOMOTOR
a. Remove these parts:
1. No.1 undercover
2. No.1 safety pad
3. No.2 heater to register duct




b. Remove the servomotor.
1. Disconnect the connector.
2. Disconnect the control cable
3. Remove the 2 screws and servomotor.

INSTALLATION
Installation is in the reverse order of removal
