On-Vehicle Inspection

INSPECT OIL CONTROL VALVE RESISTANCE

a. Remove the V-bank cover.
b. Remove the battery clamp cover, air cleaner inlet and intake air connector.
c. Disconnect the oil control valve connector.

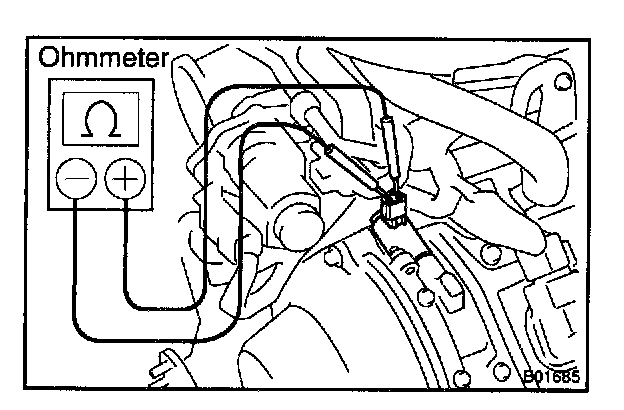

d. Using an Ohmmeter, measure the resistance between the terminals.
Resistance: 6.9 - 7.9 ohms at 20 °C (68 °F)
If the resistance is not as specified, replace the valve.

e. Reconnect the oil control valve connector.
f. Reinstall the V-bank cover.
