Inspection

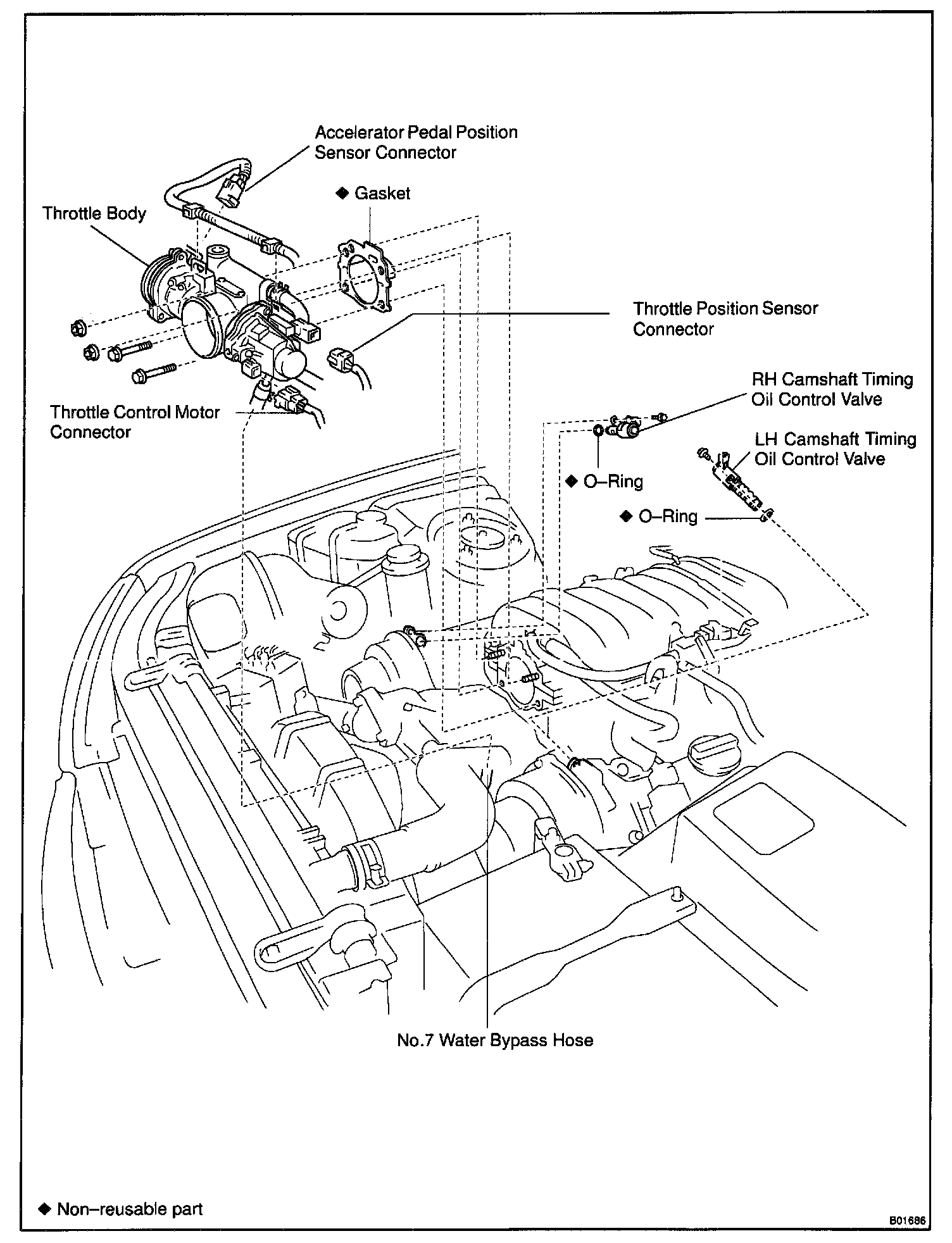

COMPONENTS

INSPECTION




INSPECT OIL CONTROL VALVE OPERATION

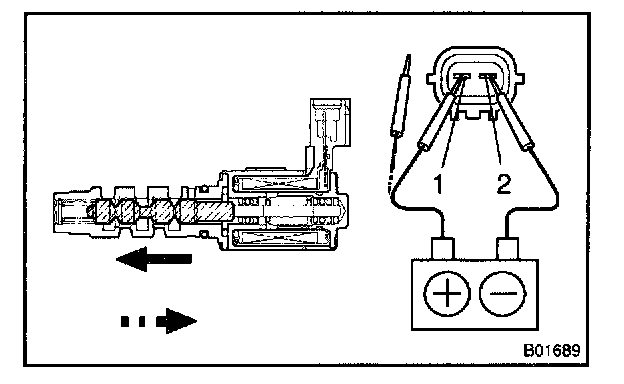

Connect positive (+) lead to terminal 1 of connector and negative (-) lead to terminal 2, then check the movement of the valve.

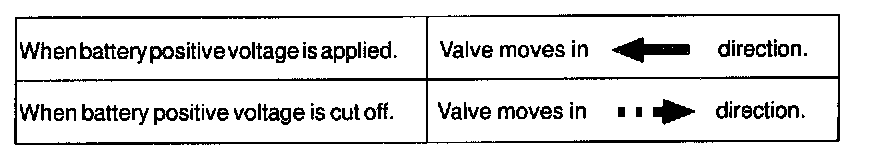

If operation is not as specified, replace the oil control valve.
