Radiator Cooling Fan Motor Relay: Testing and Inspection

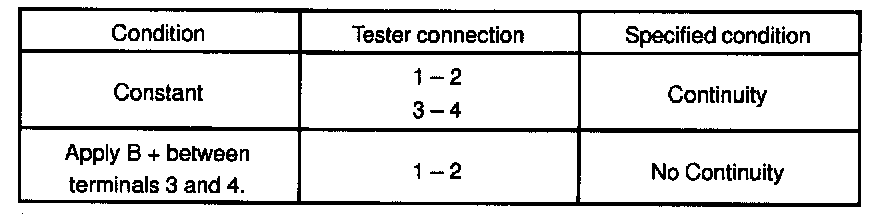

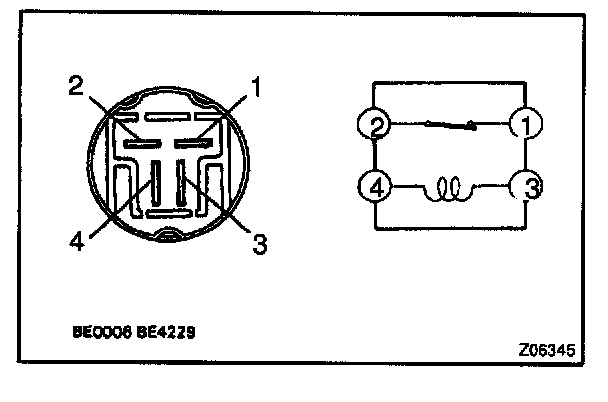

INSPECT COOLING FAN RELAY No.1 AND No.2 CONTINUITY
If continuity is not as specified, replace the relays.
