Hydraulic Control Assembly - Antilock Brakes

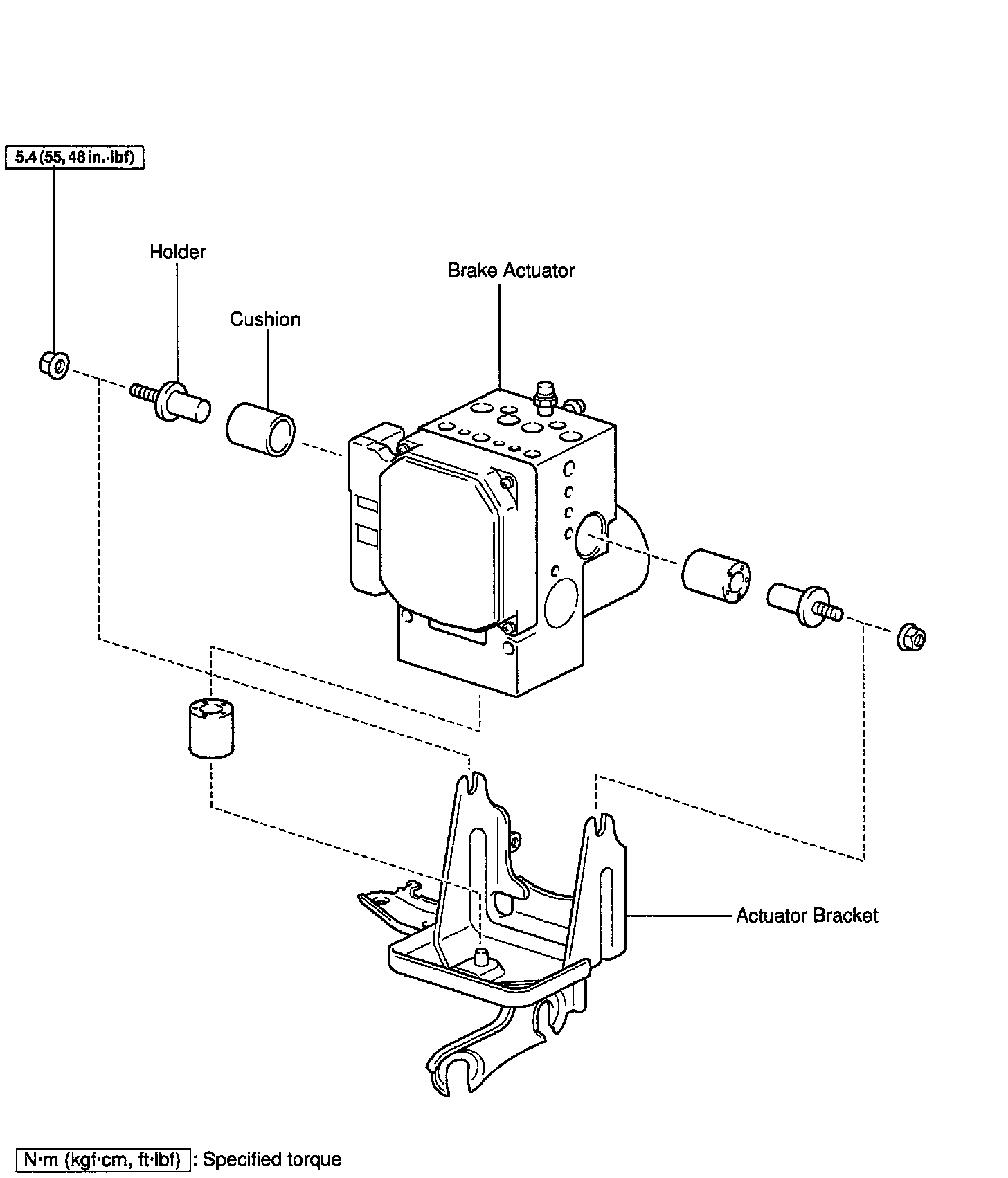

Part 1 Of 2:

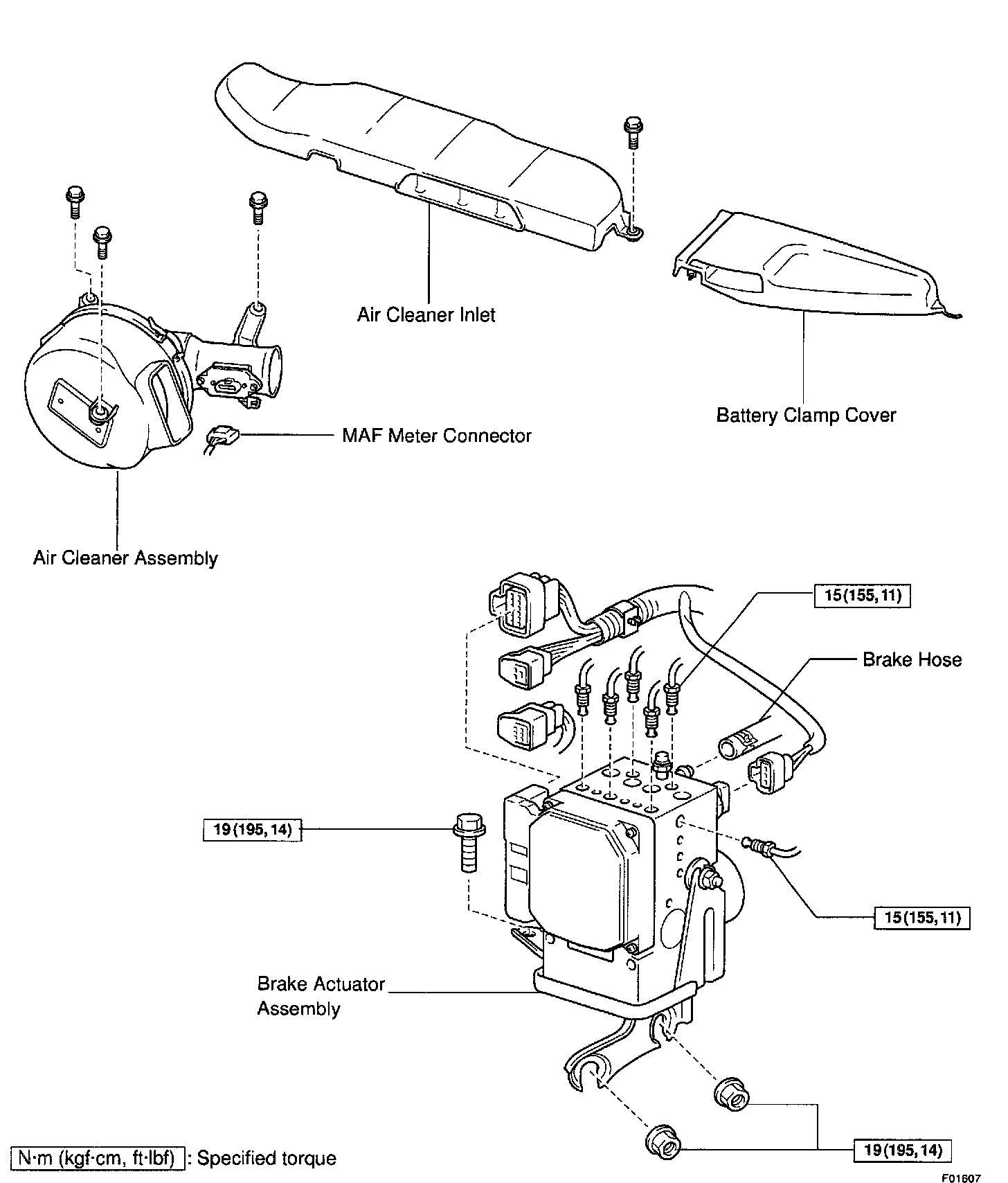

Part 2 Of 2:





BRAKE ACTUATOR REPLACEMENT W/ RELATED COMPONENTS
