Lexus
>>
2000
>>
LS 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

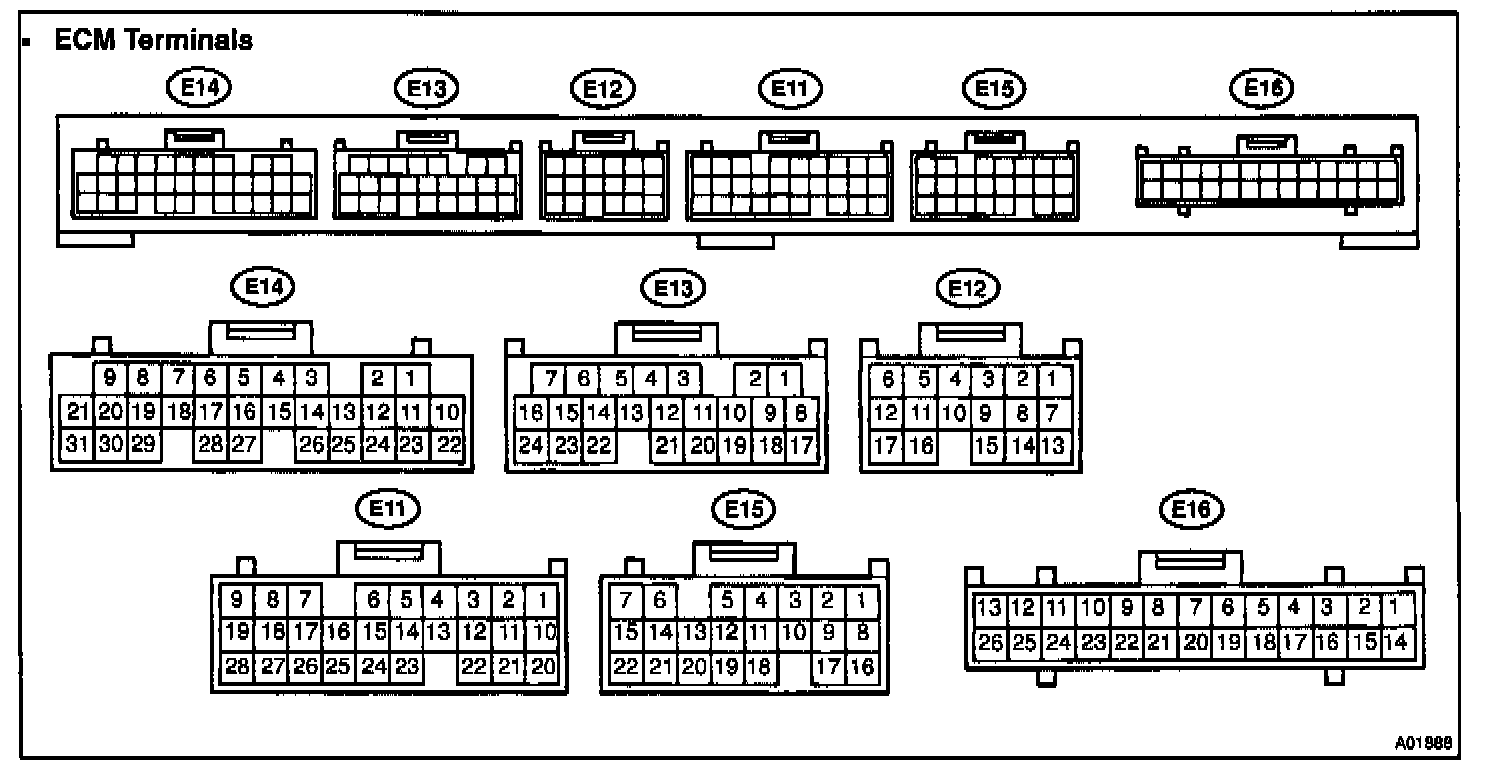

PCM Connectors And Terminals:

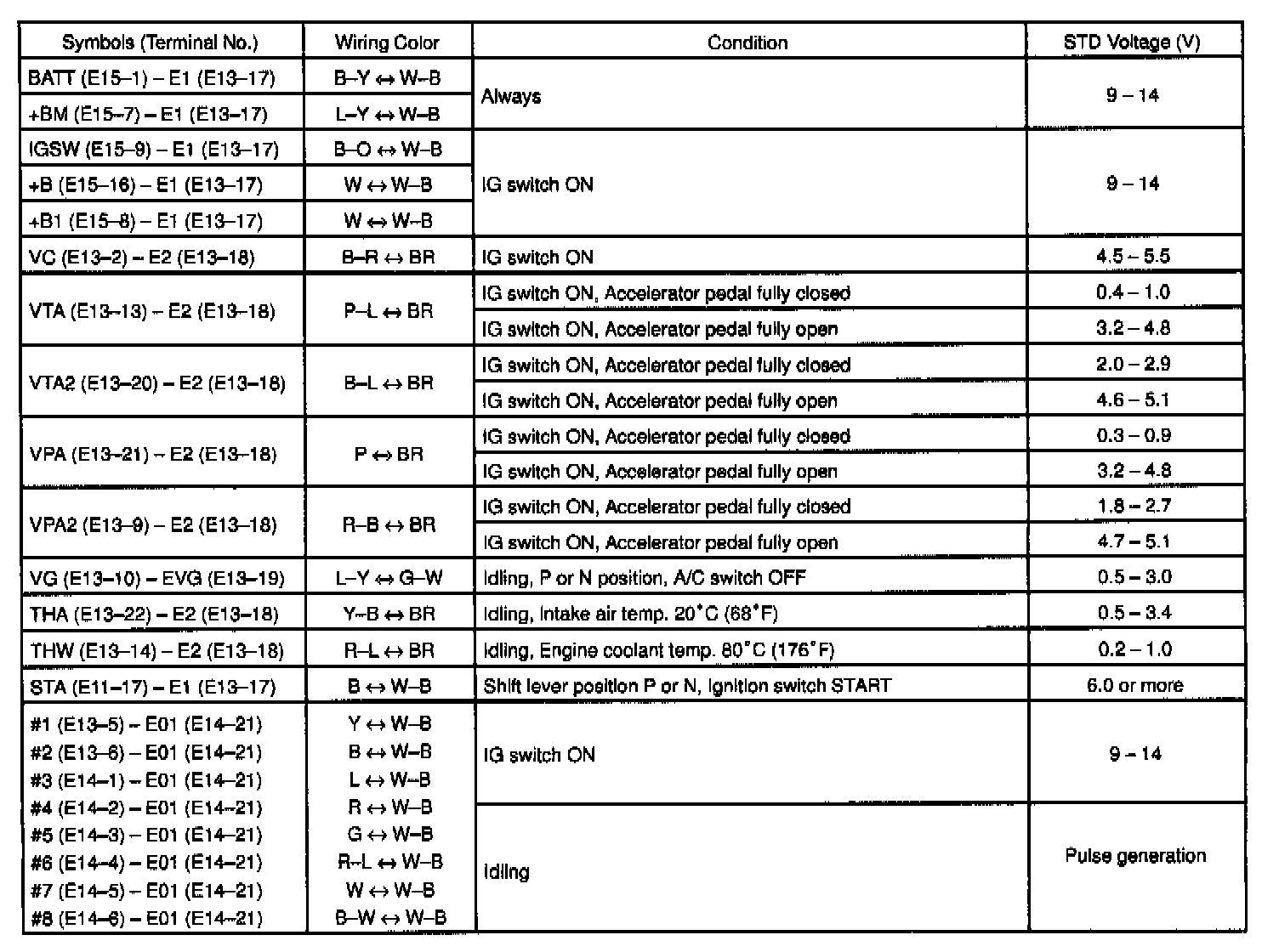

Pinout Values (Part 1 Of 3):

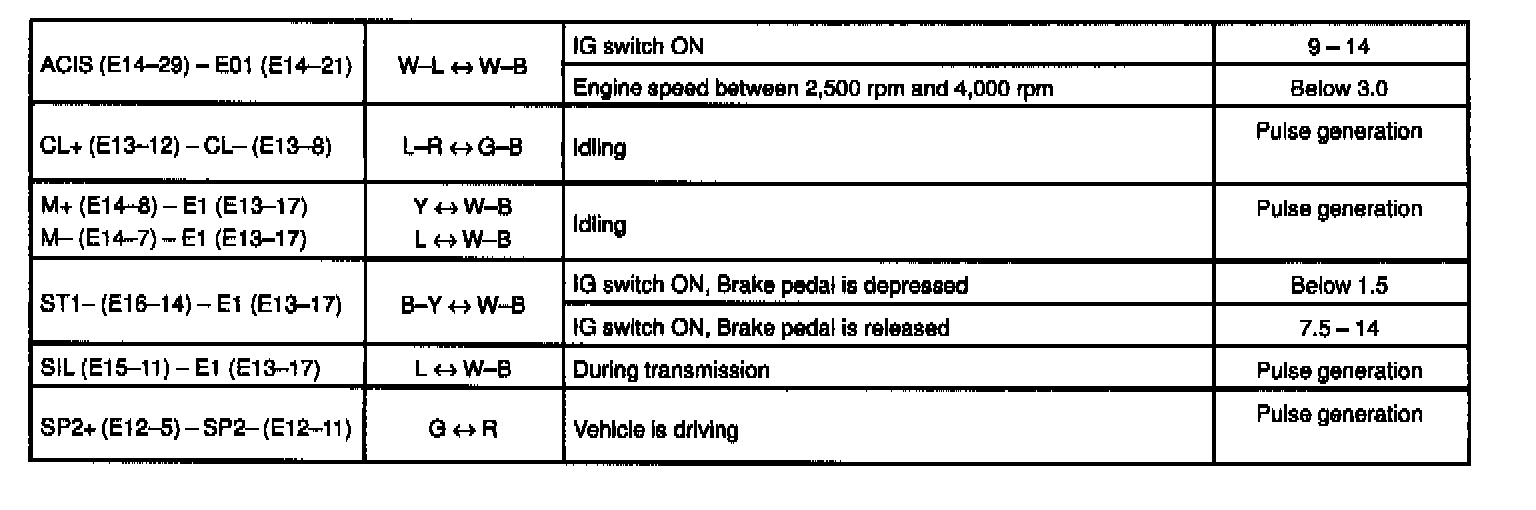

Pinout Values (Part 2 Of 3):

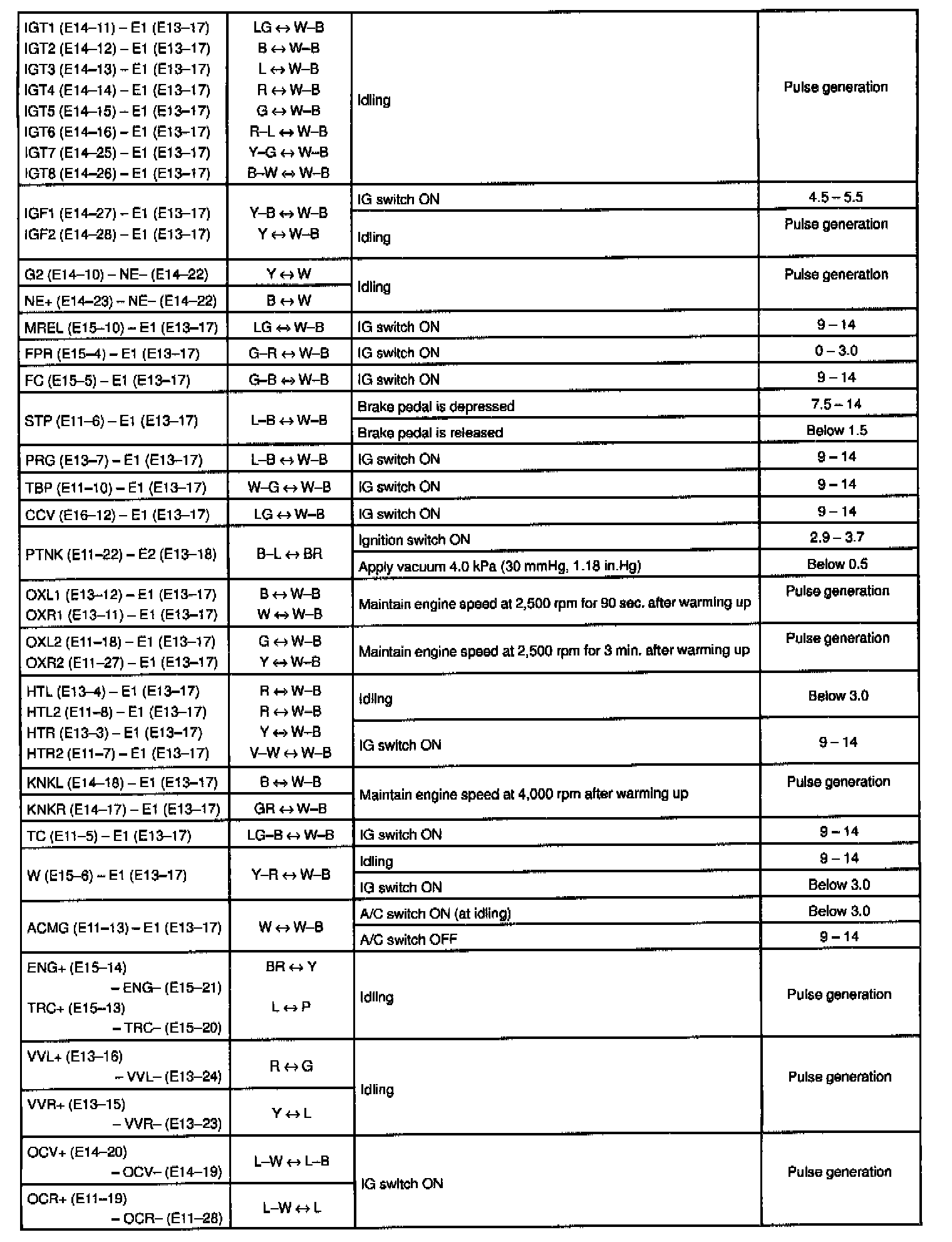

Pinout Values (Part 3 Of 3):
