Speed Sensor, Rear

REMOVAL

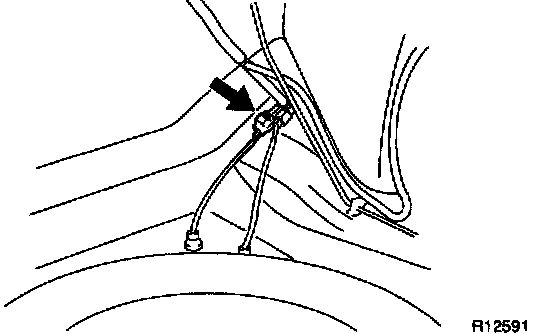

1. DISCONNECT SPEED SENSOR CONNECTOR
a. Remove the trim front cover of the luggage compartment.
b. Disconnect the speed sensor connector, and pull out the sensor wire harness with the grommet.





2. REMOVE SPEED SENSOR
a. Remove the 3 clamp bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
b. Remove the 4 clamps from the upper arm and body.
c. Right wheel: Disconnect the pad wear indicator connector from the speed sensor.

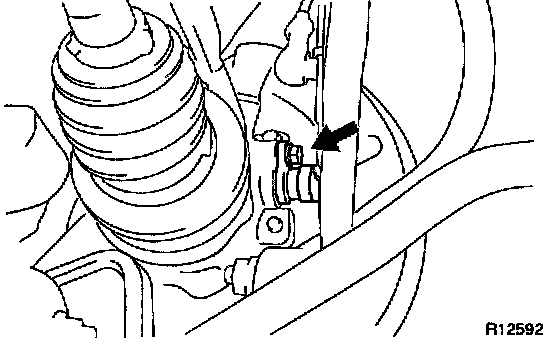

d. Remove the speed sensor from the axle carrier.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)

INSTALLATION
Installation Is In the reverse order of removal.
AFTER INSTALLATION, CHECK SPEED SENSOR SIGNAL
