Parking Brake Shoe: Service and Repair

DISASSEMBLY

1. REMOVE REAR WHEEL

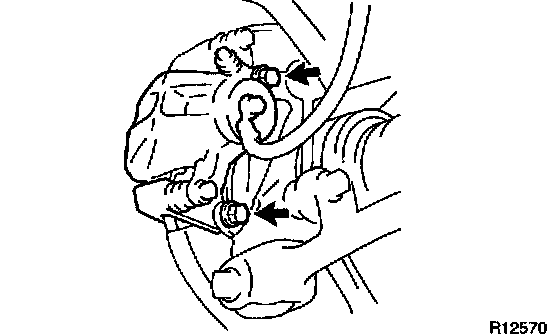

2. REMOVE REAR DISC BRAKE ASSEMBLY
a. Right wheel: Disconnect the pad wear indicator wire harness from the clamp.
b. Remove the 2 mounting bolts and disc brake assembly.
Torque: 104 Nm (1,065 kgf-cm, 77 ft. lbs.)
c. Suspend the disc brake securely. Make sure the hose is not stretched.





3. REMOVE DISC
a. Place matchmarks on the disc and rear axle hub.
b. Remove the 2 screws and disc.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)

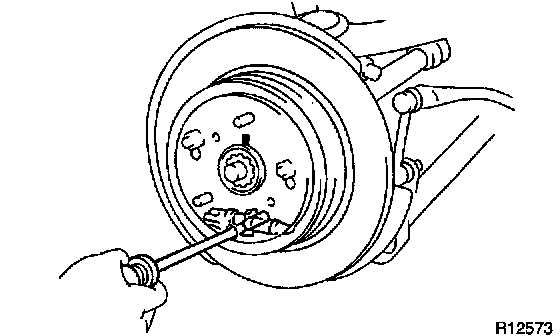

HINT: If the disc cannot be removed easily, return the shoe adjuster until the wheel turns freely.

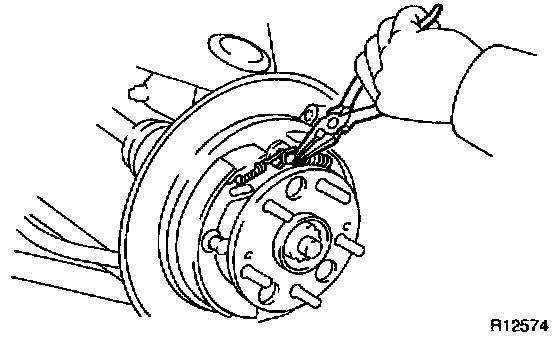

4. REMOVE SHOE RETURN SPRINGS
Using needle-nose pliers, remove the 2 shoe return springs.
5. REMOVE SHOE STRUT WITH SPRING





6. REMOVE FRONT SHOE, ADJUSTER AND TENSION SPRING
a. Slide out the front shoe and remove the shoe adjuster.
b. Disconnect the tension spring and remove the front shoe.





7. REMOVE REAR SHOE
a. Slide out the rear shoe.

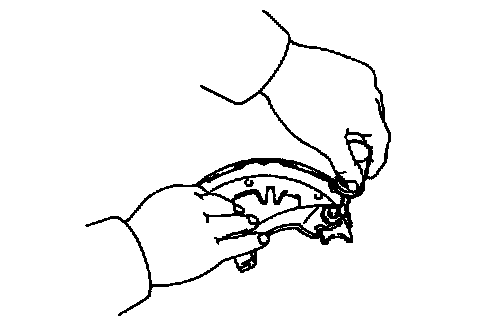

b. Remove the tension spring from the rear shoe.
c. Disconnect the parking brake cable from the parking brake shoe lever.

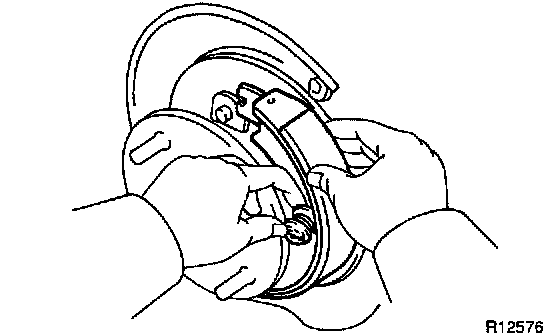

d. Remove the shoe hold-down spring cups, springs and pins.

INSPECTION
1. INSPECT DISASSEMBLED PARTS
Inspect the disassembled parts for wear, rust or damage.

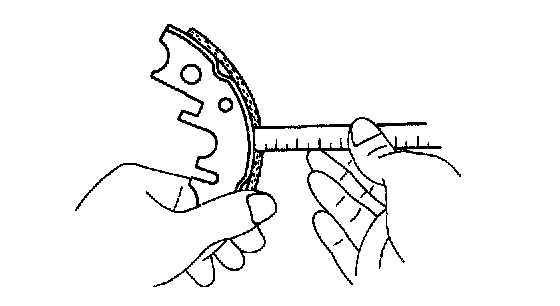

2. MEASURE BRAKE SHOE LINING THICKNESS
Using a ruler, measure the thickness of the shoe lining.
Standard thickness: 2.5 mm (0.098 inch)
Minimum thickness: 1.0 mm (0.039 inch)
If the lining thickness is at the minimum or less, or if there is severe, uneven wear, replace the brake shoe.

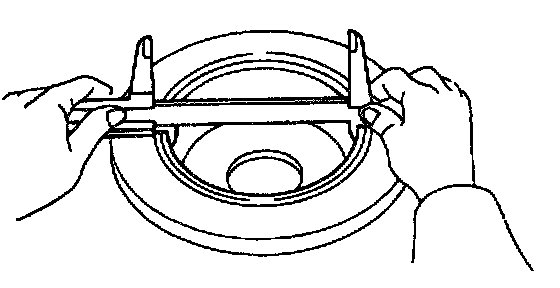

3. MEASURE DISC INSIDE DIAMETER
Using a vernier calipers, measure the inside diameter of the disc.
Standard inside diameter: 190 mm (7.48 inch)
Maximum inside diameter: 191 mm (7.52 inch)
Replace the disc if the inside diameter is at the maximum value or more. Replace the disc or grind it with a lathe if the disc is scored or worn unevenly.





4. INSPECT PARKING BRAKE LINING AND DISC FOR PROPER CONTACT

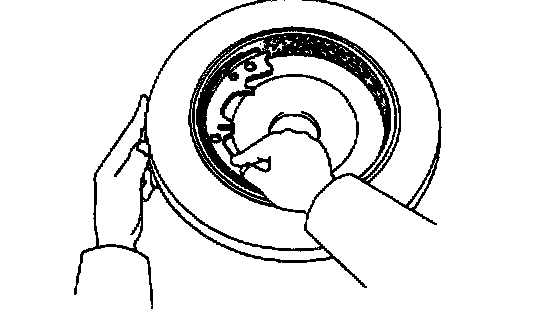

Apply chalk to the inside surface of the disc, then grind down the brake shoe lining to fit. If the contact between the disc and the brake shoe lining is improper, repair it using a brake shoe grinder or replace the brake shoe assembly.

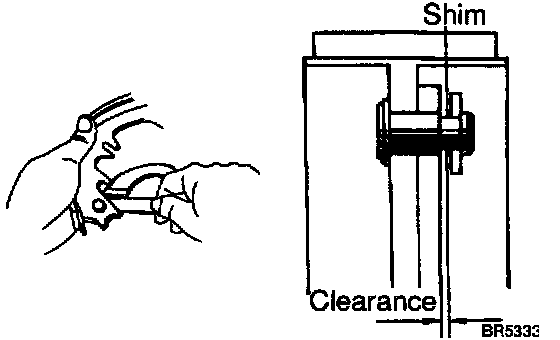

5. MEASURE CLEARANCE BETWEEN PARKING BRAKE SHOE AND LEVER
Using a feeler gauge, measure the clearance.
Standard clearance: Less than 0.35 mm (0.0138 inch)





If the clearance is not within the specification, replace the shim with one of the correct size.
6. IF NECESSARY, REPLACE SHIM

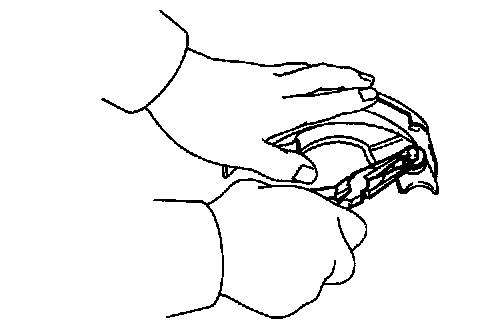

a. Using a screwdriver, remove the C-washer.
b. Remove the parking brake shoe lever, and install the correct size shim.





c. Install the parking brake shoe lever with a new C-washer.
d. Remeasure the clearance.

REASSEMBLY
Reassembly is in the reverse order of disassembly.

NOTICE: Apply high temperature grease to the parts indicated by the arrows.

1. ADJUST PARKING BRAKE SHOE CLEARANCE
a. Temporarily install the hub nuts.
b. Install the 2 screws.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
c. Remove the hole plug.
d. Turn the adjuster and expand the shoes until the disc locks.
e. Return the adjuster 8 notches.
f. Install the hole plug.
2. SETTLING PARKING BRAKE SHOES AND DISC
a. Drive the vehicle at about 50 km/h (31 mph) on a safe, level and dry road.
b. Depress the parking brake pedal with a force of 147 N (15 kgf, 33 lbs.).
c. Drive the vehicle for about 400 m (0.25 mile) in this condition.
d. Repeat this procedure 2 or 3 times.
3. CHECK AND ADJUST PARKING BRAKE PEDAL TRAVEL
