Parking Brake Pedal: Testing and Inspection

ON-VEHICLE INSPECTION





1. CHECK PARKING BRAKE PEDAL TRAVEL

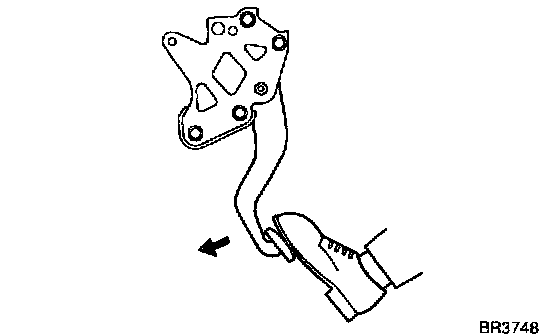

Depress the parking brake pedal all the way and count the number of clicks.
Parking brake pedal travel at 294 N (30 kgf, 66.1 lbs.): 5-7 clicks





2. IF NECESSARY, ADJUST PARKING BRAKE
a. Adjust the parking brake shoe clearance.

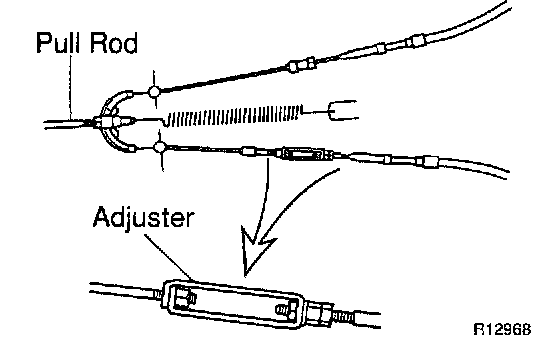

b. Loosen the adjuster lock nut and adjuster until the parking brake pedal travel becomes correct.

HINT: If the adjustment cannot be made within the range of travel of the adjuster, remove the propeller shaft and make an adjustment at the pull rod.
