Removal and Installation

Rear:

REMOVAL





1. DISCONNECT FLEXIBLE HOSE
a. Remove the union bolt and 2 gaskets from the caliper, then disconnect the flexible hose from the caliper.
Torque: 39 Nm (400 kgf-cm, 29 ft. lbs.)
b. Use a container to catch the brake fluid as it drains out.
2. REMOVE CALIPER

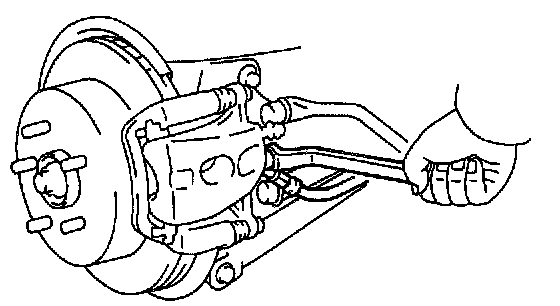

a. Hold the sliding pin and loosen the 2 installation bolts.
b. Remove the 2 installation bolts.
Torque: 104 Nm (1,065 kgf-cm, 77 ft. lbs.)
c. Remove the caliper from the torque plate.
3. REMOVE 2 PADS
a. Remove the 2 anti-squeal springs.
b. Remove the 2 pads with anti-squeal shims.
c. Right wheel: Remove the clip, and disconnect the pad wear indicator from the inner pad.
d. Remove the 4 pad support plates.

HINT: Do not disconnect the pad wear indicators unless you are replacing the brake pads.

INSTALLATION
Installation is in the reverse order of removal.
1. AFTER INSTALLATION, FILL BRAKE RESERVOIR WITH BRAKE FLUID AND BLEED BRAKE SYSTEM
2. CHECK FOR FLUID LEAKAGE
