ABS W/BA & VSC System

CIRCUIT DESCRIPTION

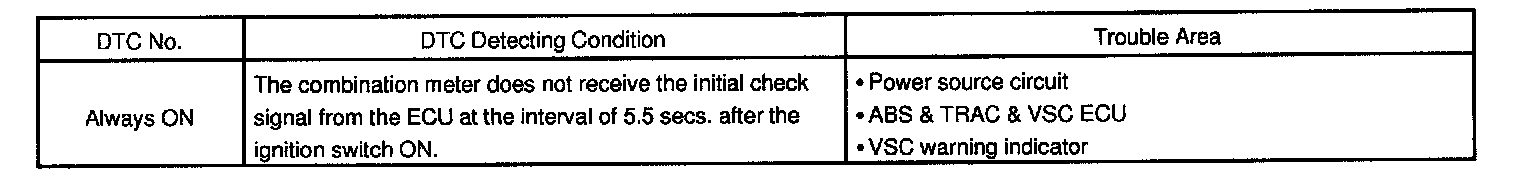

DETECTING CONDITIONS

Fail Safe Function:
If trouble occurs in the ECU, the ECU prohibits ABS & TRAC & VSC controls and the brake system becomes normal.

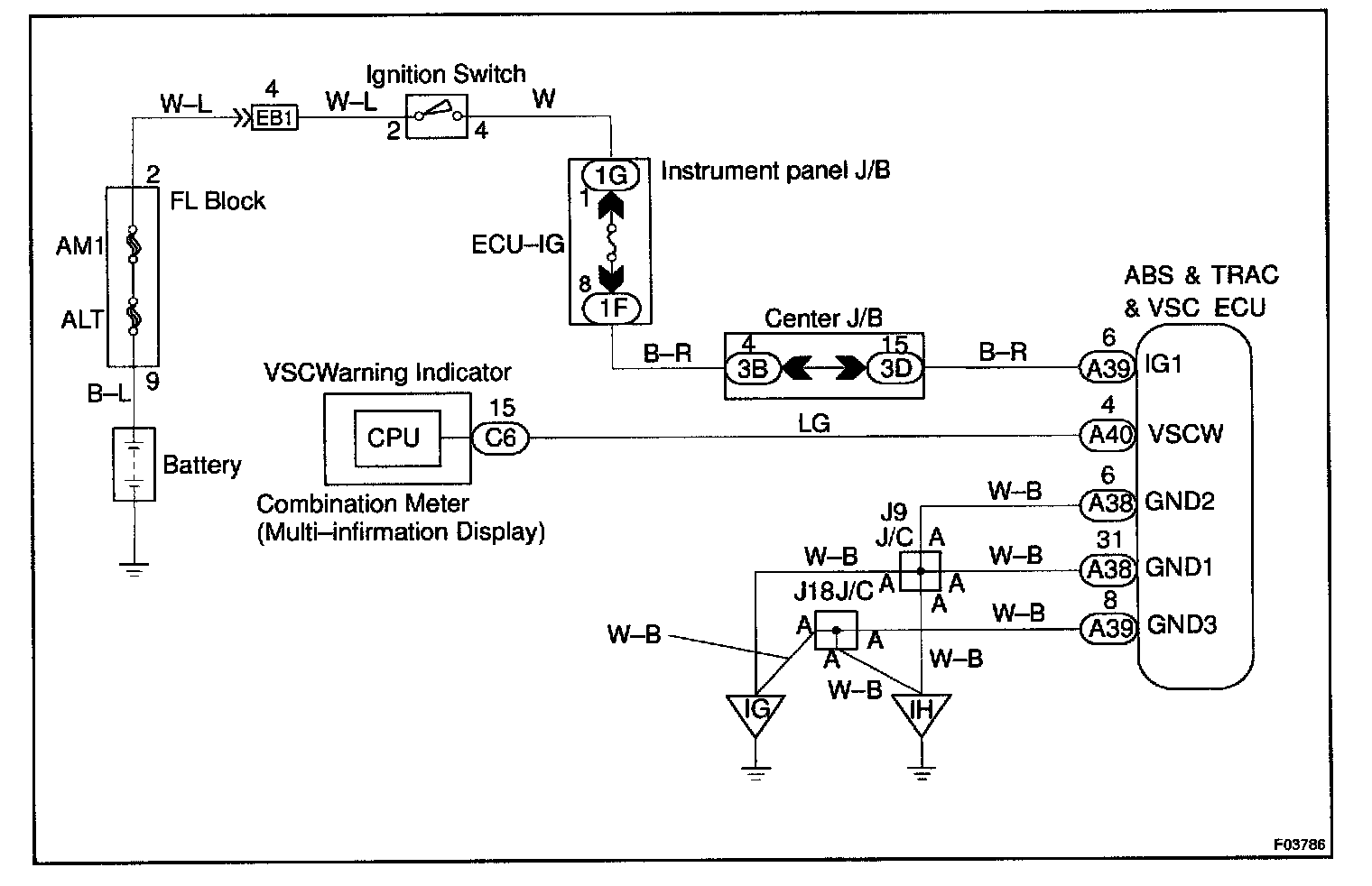

WIRING DIAGRAM

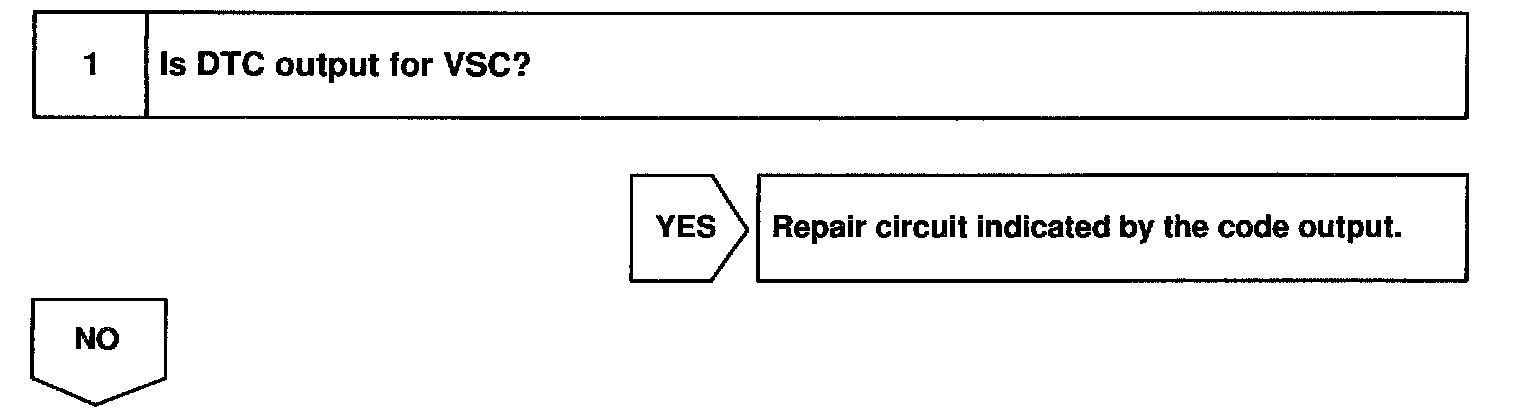

Step 1:

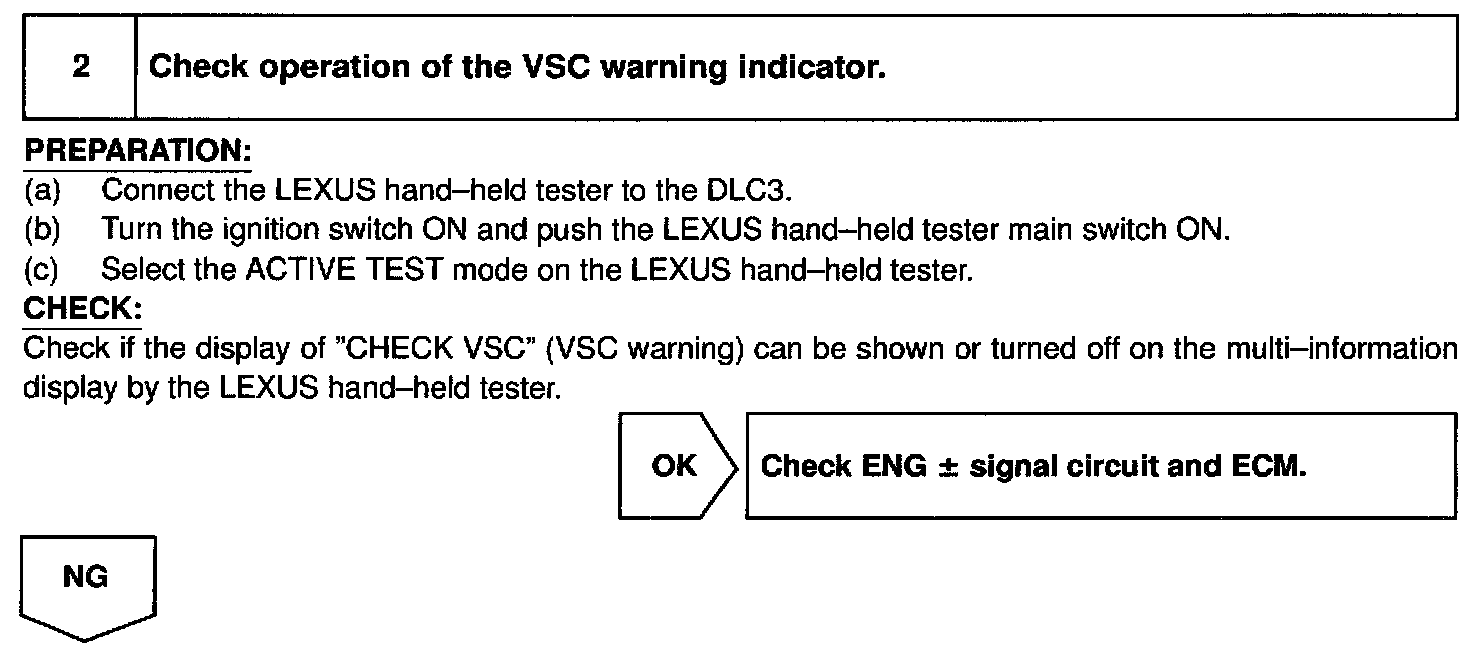

Step 2:

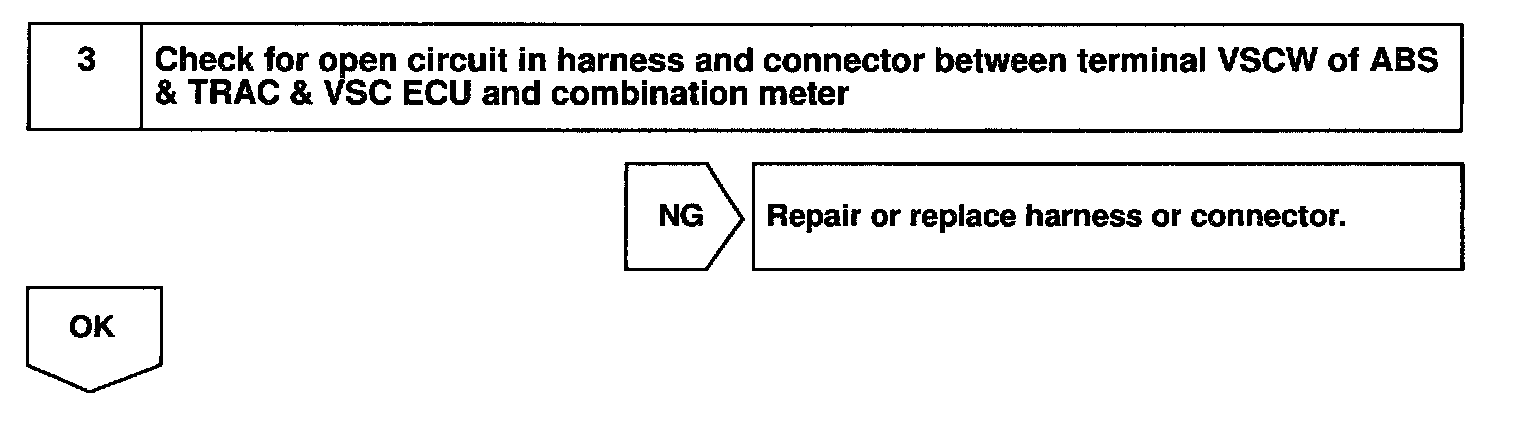

Step 3:

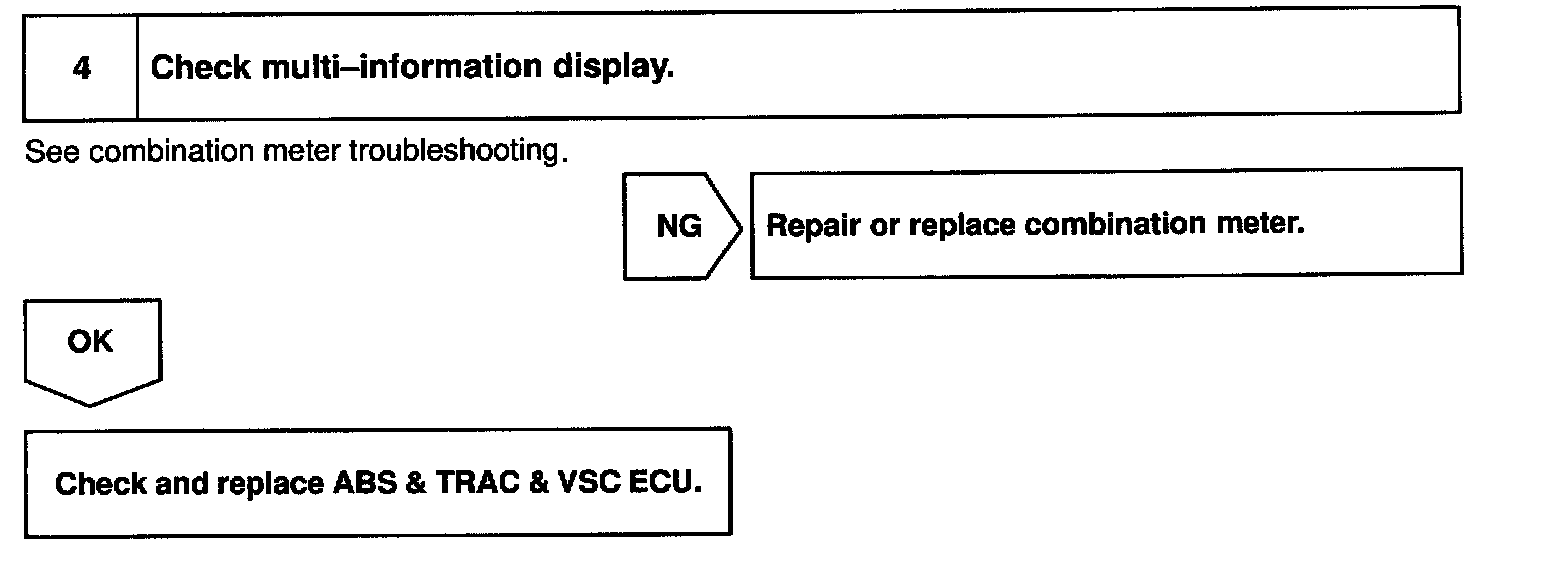

Step 4:

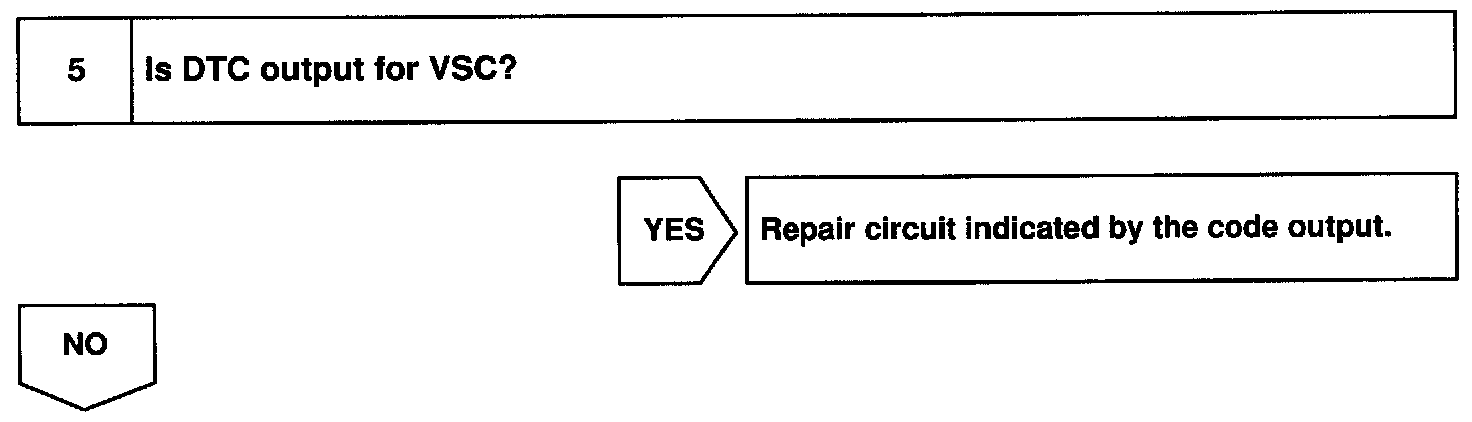

Step 5:

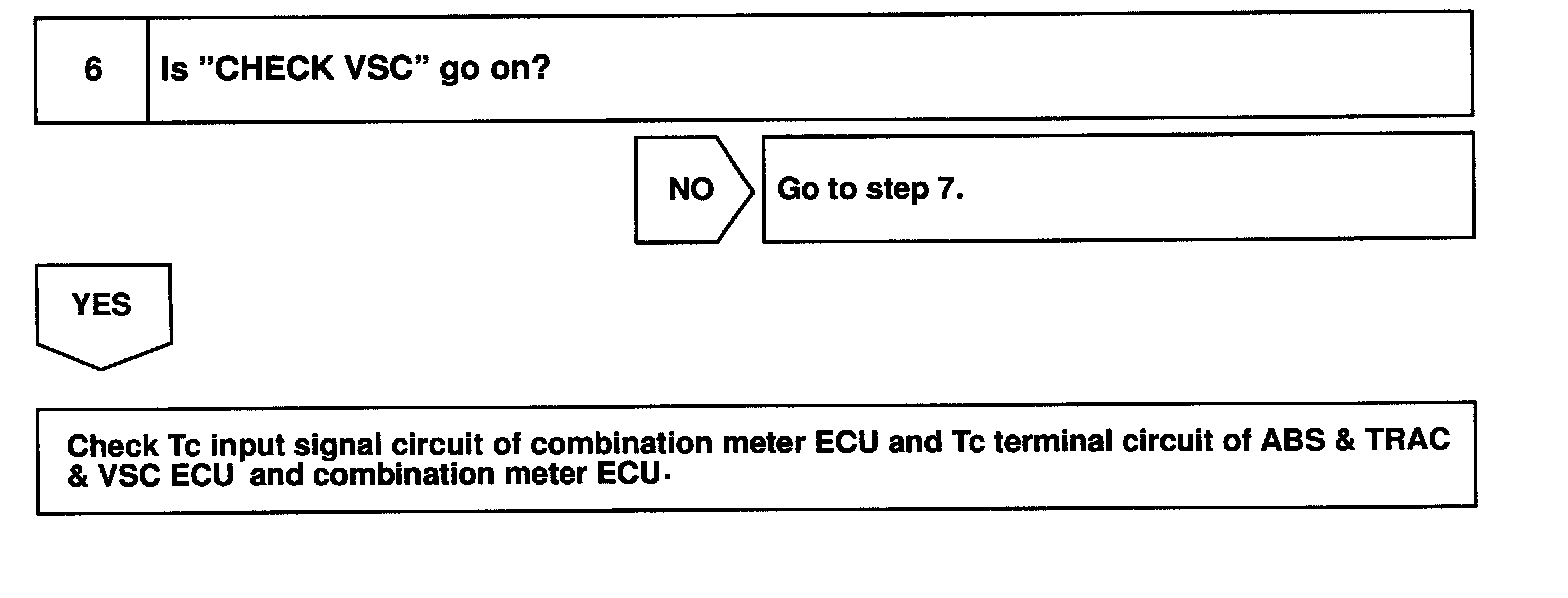

Step 6:

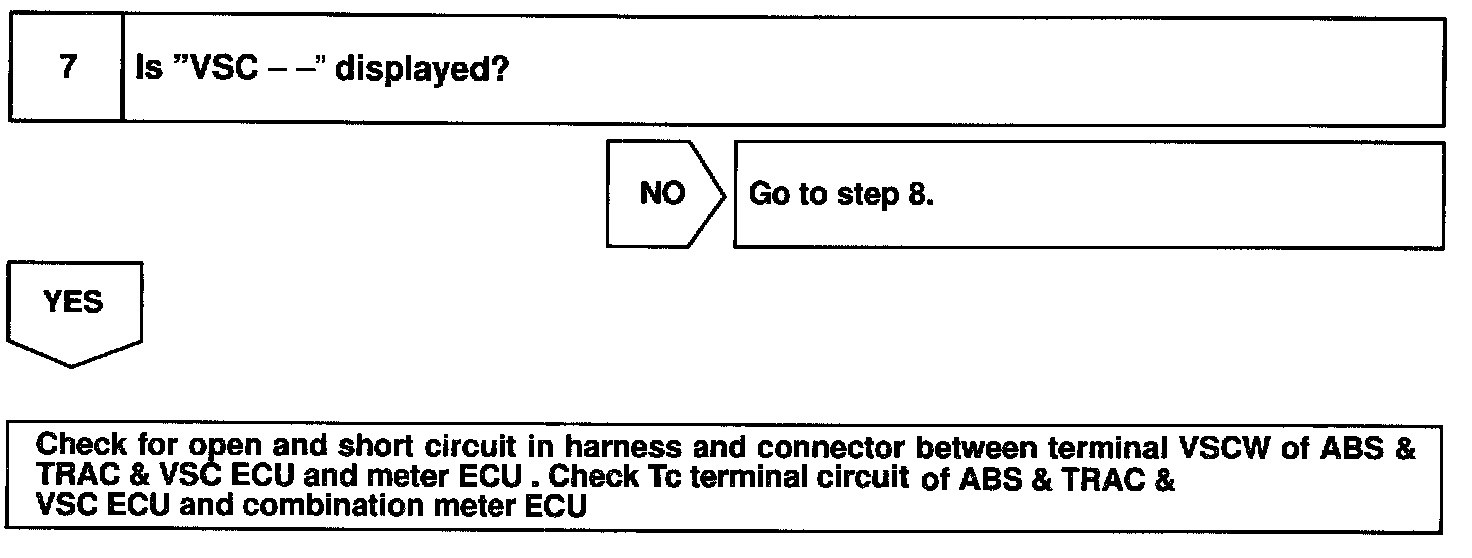

Step 7:

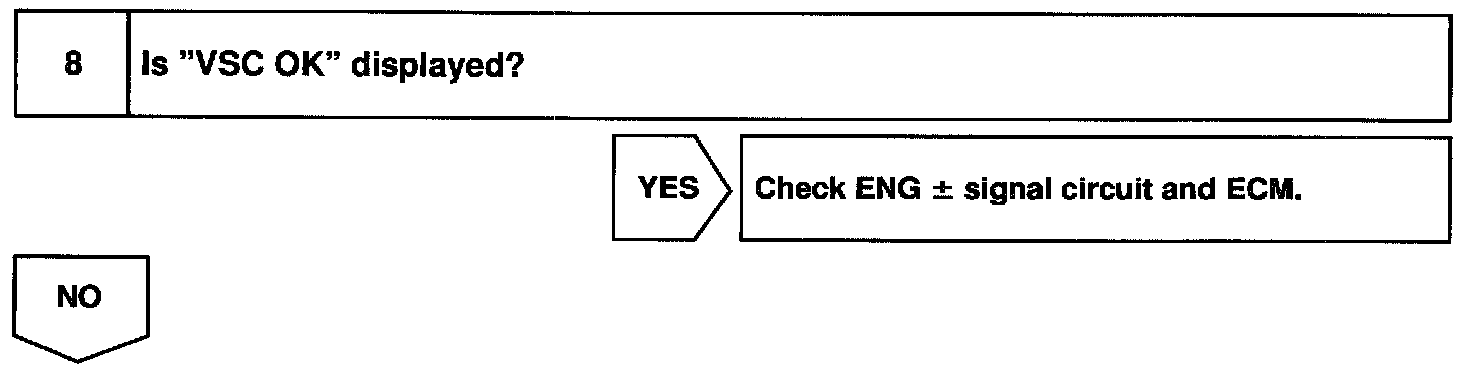

Step 8:

Step 9:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 5 in case of not using the LEXUS hand-held tester.
