Front Seat

REMOVAL

1. w/o Power Headrest:
REMOVE HEADREST
While pushing the lock button, pull up the headrest to remove it.




2. REMOVE FRONT SEAT OUTER BELT FLOOR ANCHOR

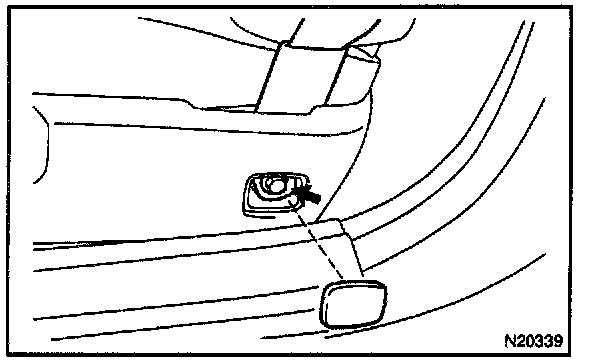

a. Using a screwdriver, remove the seat belt anchor cover cap.

HINT: Tape the screwdriver tip before use.

b. Remove the front seat outer belt floor anchor.

Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

3. REMOVE SEAT TRACK COVER
Using a screwdriver, pry out the 4 covers.

HINT: Tape the screwdriver tip before use.

4. REMOVE FRONT SEAT
a. Remove the 4 bolts.

Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)

b. Disconnect the connectors.

INSTALLATION
Installation is in the reverse order of removal.
