Home >> Lexus >> 2000 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Locations >> Component Locations

Component Locations

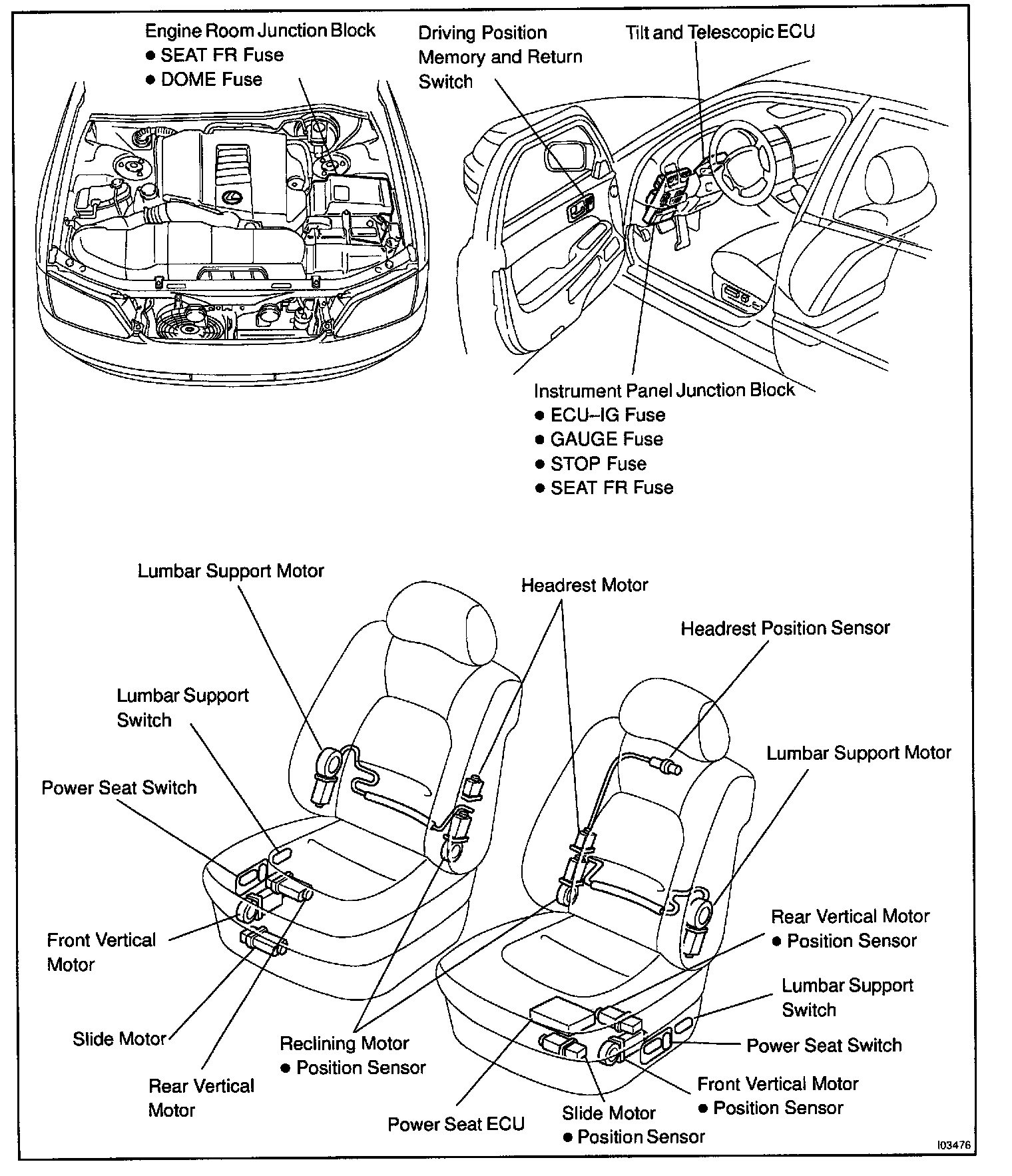

Power Seat Control System (W/ Driving Position Memory):

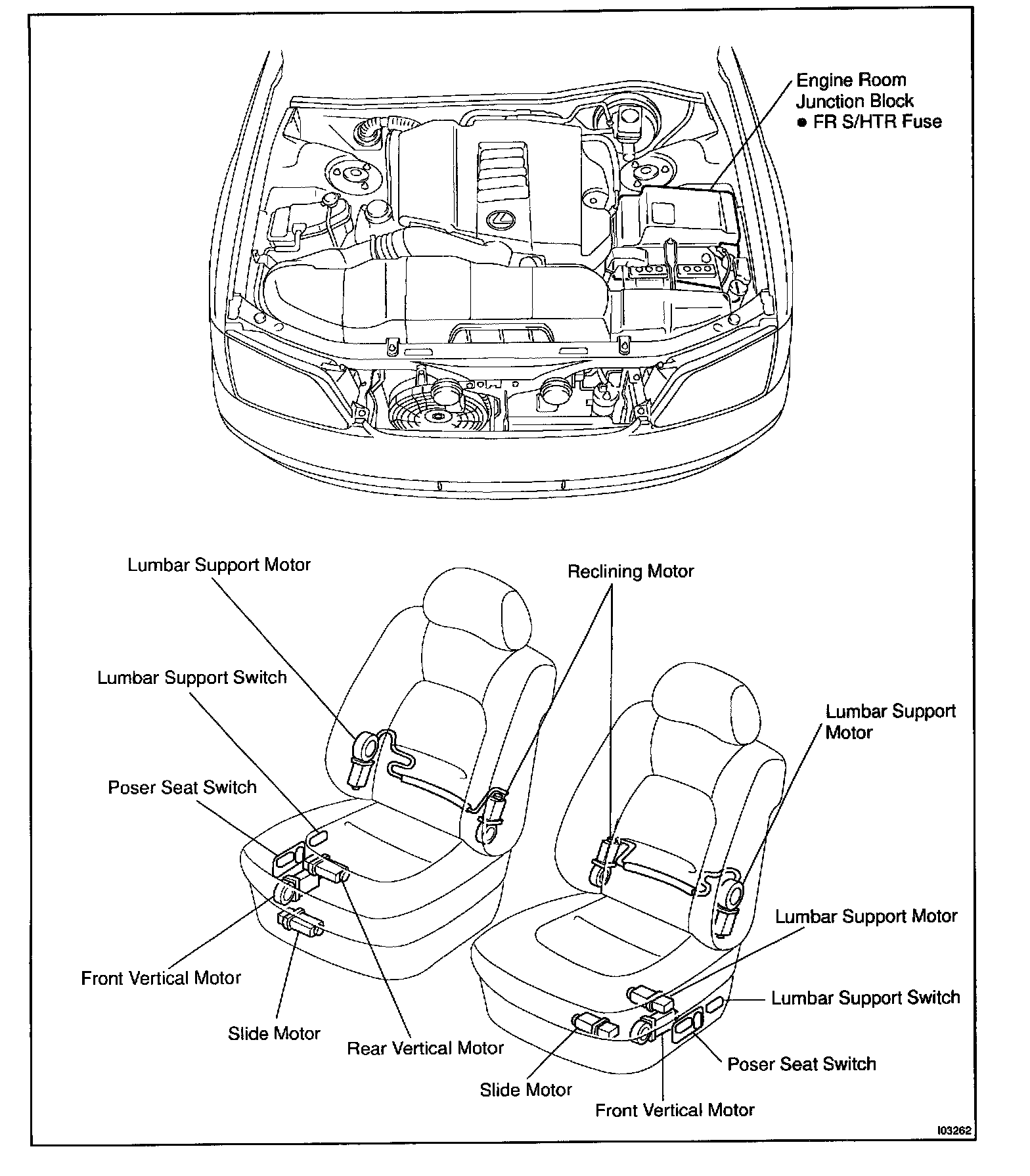

Power Seat Control System (W/O Driving Position Memory):



Power Seat Control System (W/O Driving Position Memory):
