Control Switch Circuit

Sliding Roof Control Switch Circuit

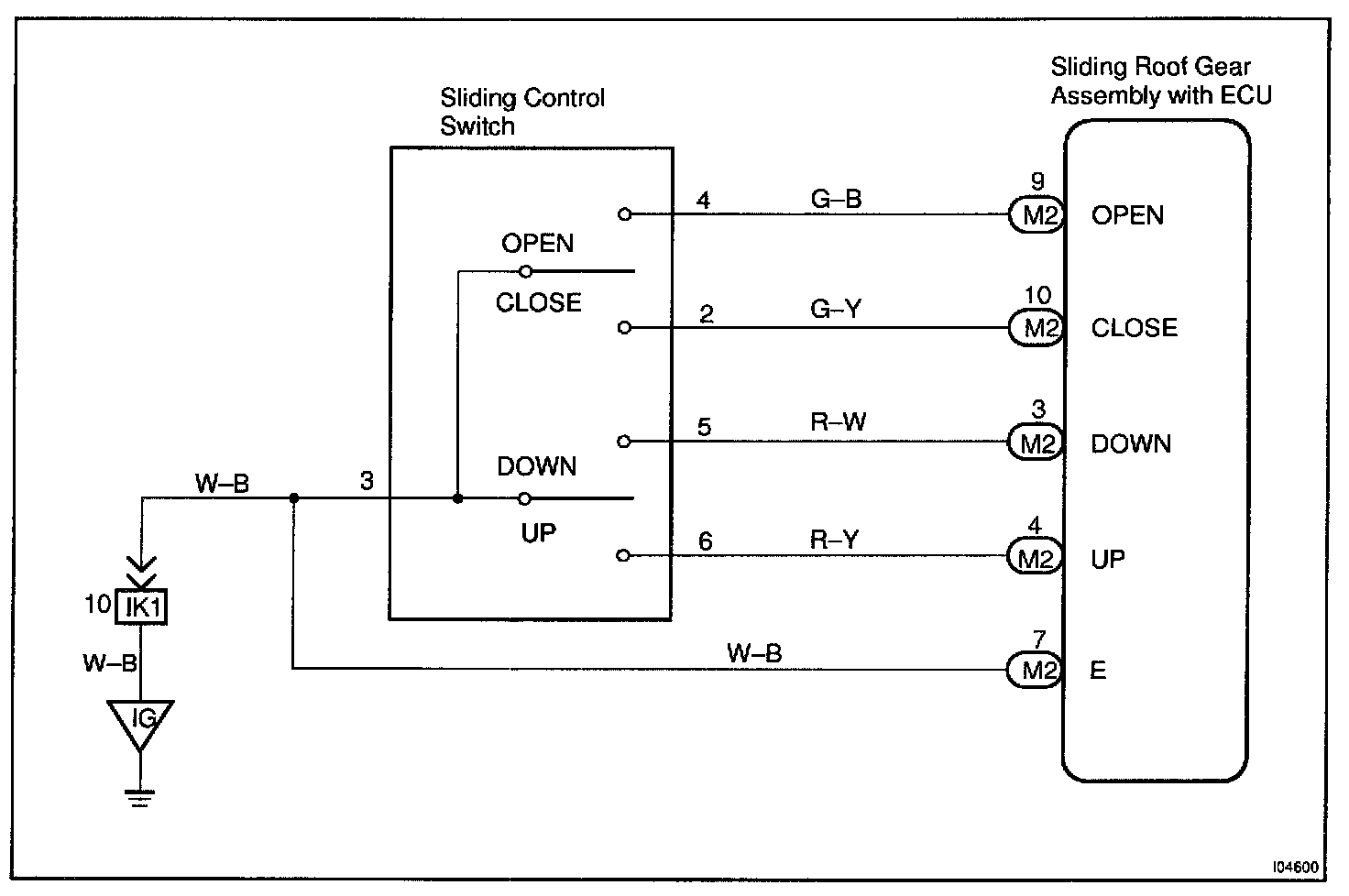

Wiring Diagram:

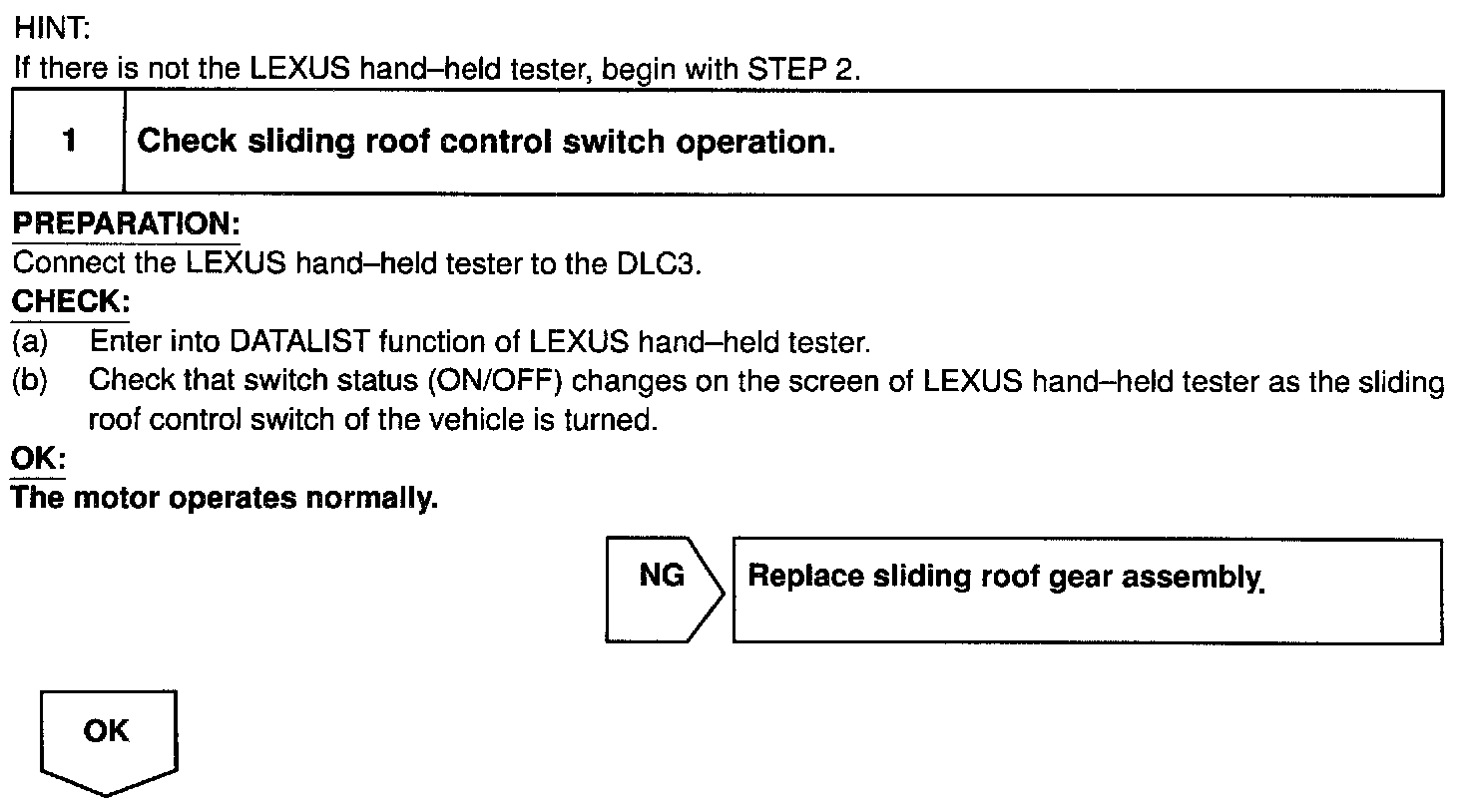

Step 1:

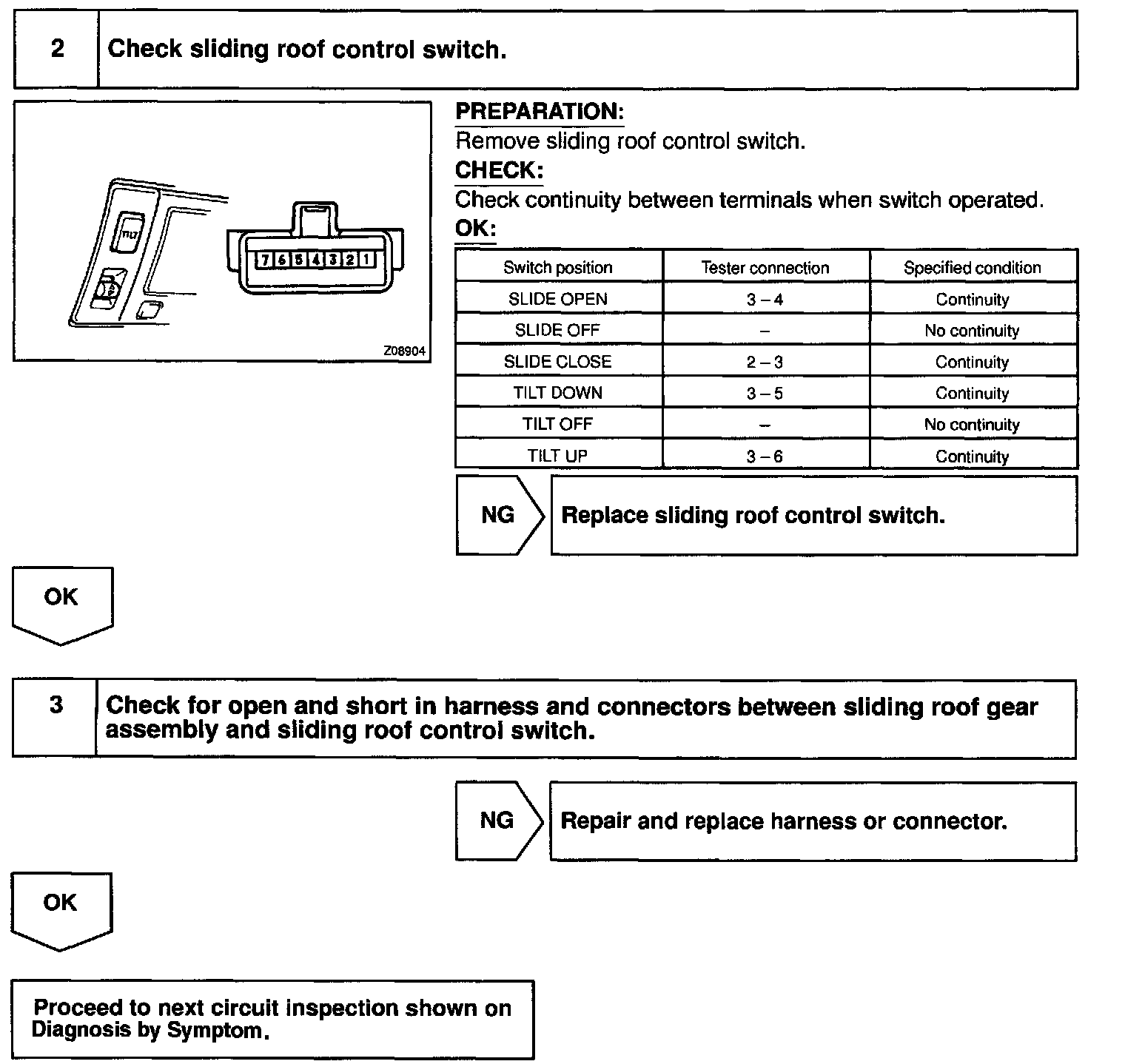

Steps 2 - 3:

INSPECTION PROCEDURE
