Carpet: Service and Repair
REMOVAL1. REMOVE THESE PARTS:
a. Front seat
Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)
b. Rear seat cushion
c. Rear seat belt lower side bolt
Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)
d. Rear seatback
Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)
e. Front door scuff plates
f. Rear door scuff plates
g. Rear seat side garnishes
h. Center pillar garnishes

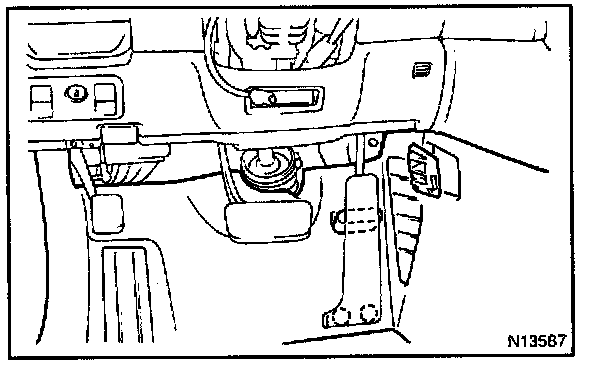

i. No. 1 under cover

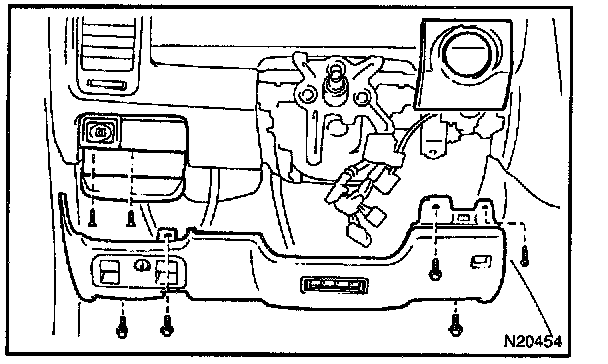

j. Finish plate
k. End pad
l. No. 1 safety pad

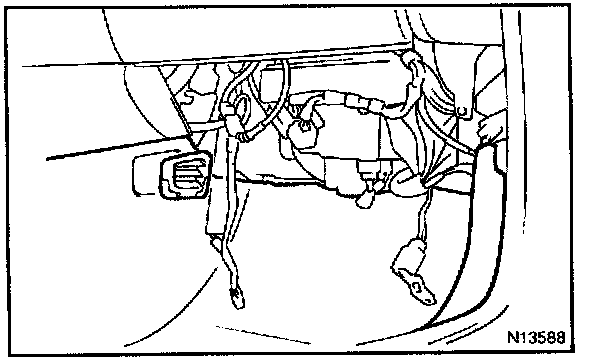

m. No. 2 under cover

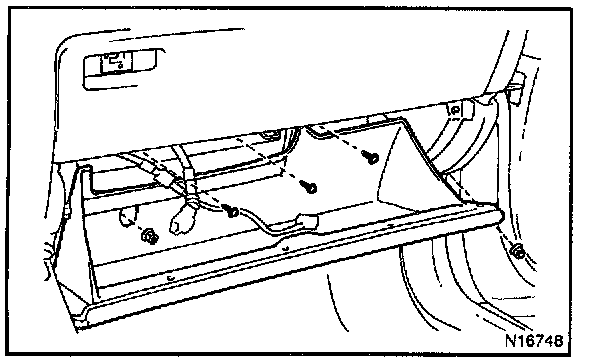

2. REMOVE INSTRUMENT PANEL BOX ASSEMBLY

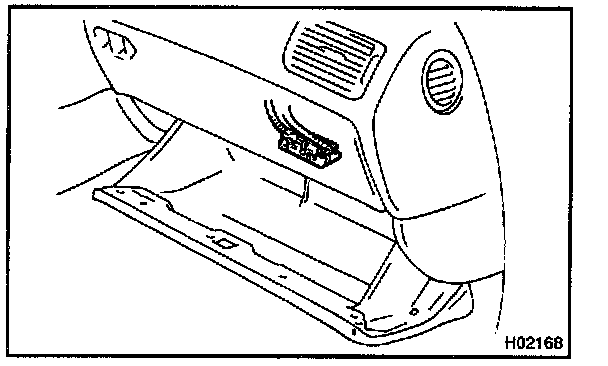

a. Using a screwdriver, pry out the glove compartment door finish plate.
HINT: Tape the screwdriver tip before use.
b. Remove the connector from the glove compartment door finish plate.
c. Remove the 3 screws and 2 nuts.
d. Disconnect the connector, remove the instrument panel box assembly.

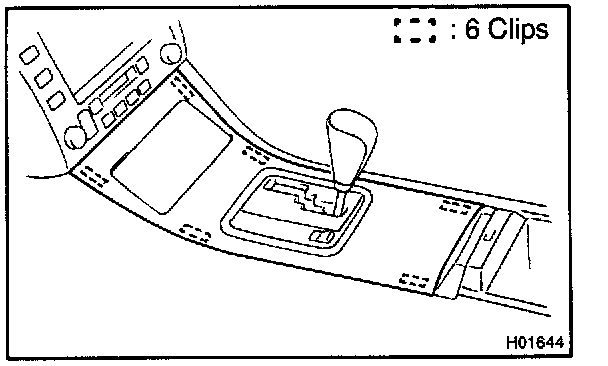

3. REMOVE CLUSTER FINISH PANEL
a. Using a screwdriver, remove the cluster finish panel.
HINT: Tape the screwdriver tip before use.
b. Disconnect the connector.
4. REMOVE CUP HOLDER
5. REMOVE LOWER REAR CONSOLE BOX
a. Remove the lower console cover.
b. Remove the rear console cover.
c. Disconnect the connector.
d. Remove the 3 screws and lower rear console box.

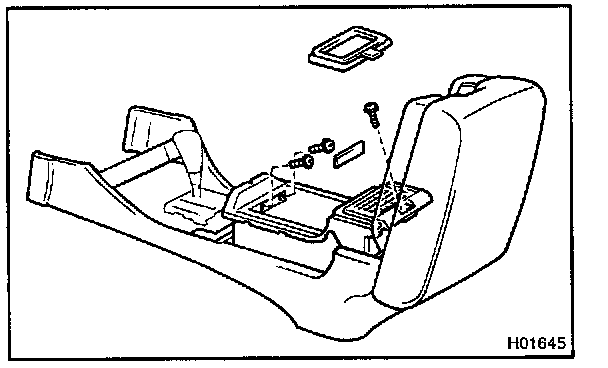

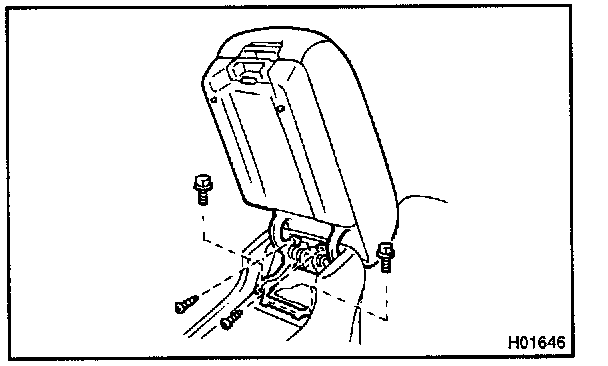

6. REMOVE REAR CONSOLE ARMREST
a. Remove the No. 3 console box duct.
b. Remove the 2 bolts, 2 screws and rear console armrest
7. REMOVE CONSOLE BOX
8. REMOVE FLOOR CARPET
a. Observe the following items.(Driver's side)
1. Remove the heater air duct guide.
2. Pull out the accelerator pedal.
3. Raise the carpet and disconnect the hook.
4. Using a clip remover, remove the clip.
b. Observe the following items.(Passenger's side)
1. Remove the heater air duct guide.
2. Raise the carpet and disconnect the hook.
3. Using a clip remover, remove the clip.

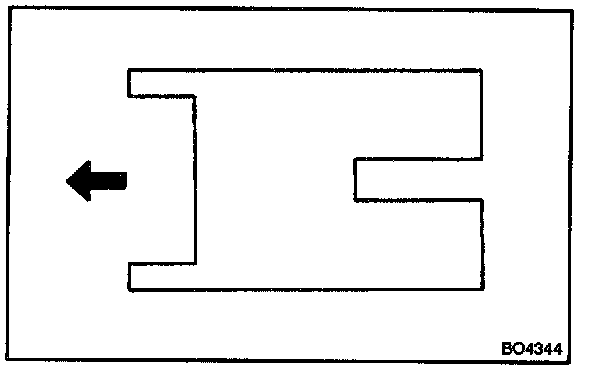

c. Slide the carpet backward and remove it.
INSTALLATION
Installation is in the reverse order of removal.
