Trunk / Liftgate: Adjustments

ADJUSTMENT




1. ADJUST LUGGAGE COMPARTMENT DOOR
a. Remove the 9 clips and trim.

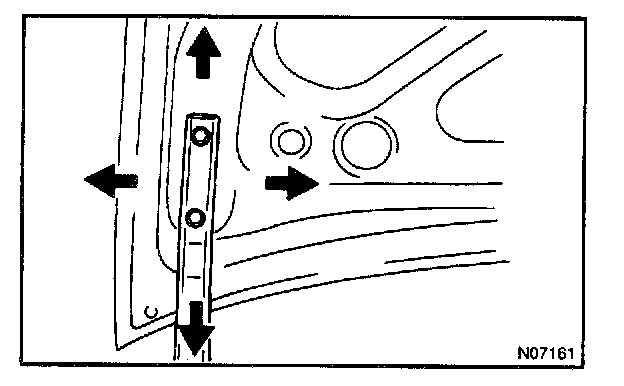

b. For forward/rearward and left/right adjustment, loosen the bolts.
c. For vertical adjustment of front end of the door, increase or decrease the number of washers between the hinge and door.

Torque: 11 N.m (115 kgf.cm, 8.3 ft.lbf)

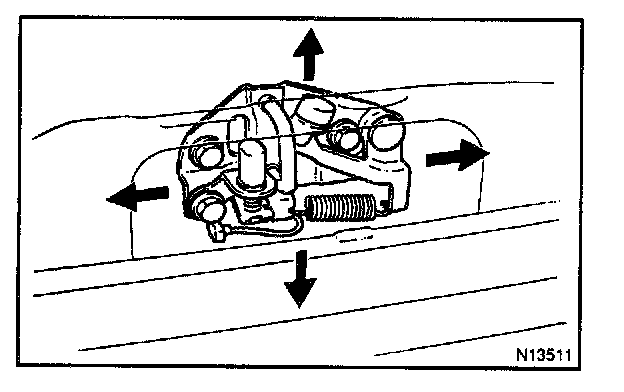

2. ADJUST DOOR LOCK STRIKER
Using a brass bar and hammer, tap the striker to adjust it.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
