Hood Latch Release Cable: Service and Repair
REMOVAL1. REMOVE THESE PARTS:
a. Engine under cover
b. Radiator support opening cover
c. Front fender moulding
d. Front fender liner
e. Front turn signal light
f. Headlight
g. Front bumper cover
h. Hood lock release lever

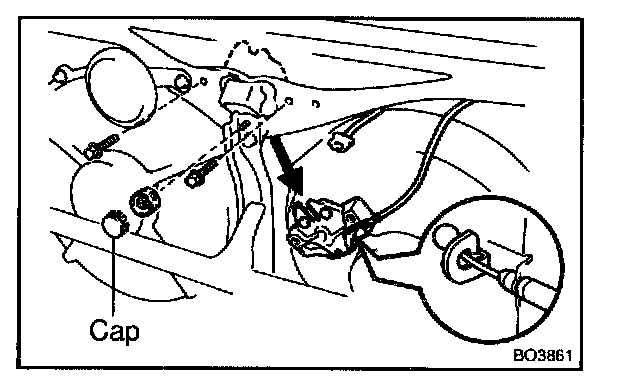

2. REMOVE HOOD LOCK
a. Using a screwdriver, pry out the cap.
HINT: Tape the screwdriver tip before use.
b. Remove the 2 bolts, nut and hood lock.
c. Disconnect the link from the lock.
3. REMOVE HOOD LOCK CONTROL CABLE
a. Using a screwdriver, disconnect the cable from the clamps.
HINT: Tape the screwdriver tip before use.

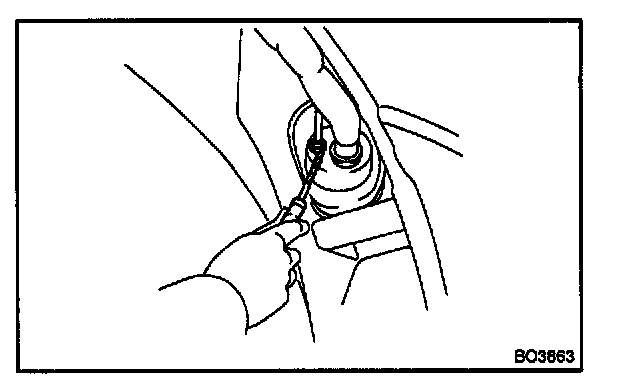

b. Using a screwdriver, pry out the cable stopper from the grommet.
HINT:
- Tape the screwdriver tip before use.
- Do not damage the grommet with the screwdriver.

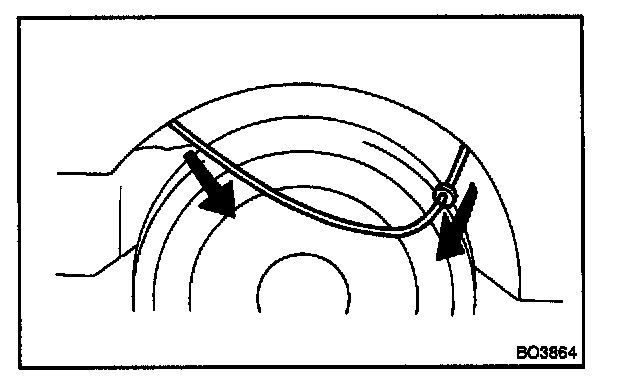

c. Pull off the cable from the front wheel housing to remove it
INSTALLATION

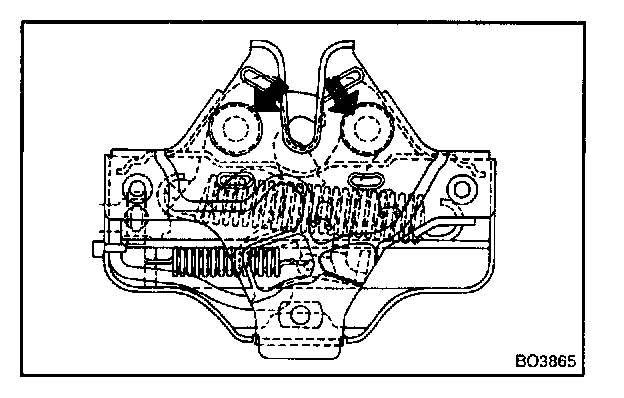

1. BEFORE INSTALLING PARTS, COAT LOCK WITH MP GREASE
Apply MP grease to the sliding surface of the lock.
2. INSTALL HOOD LOCK CONTROL CABLE

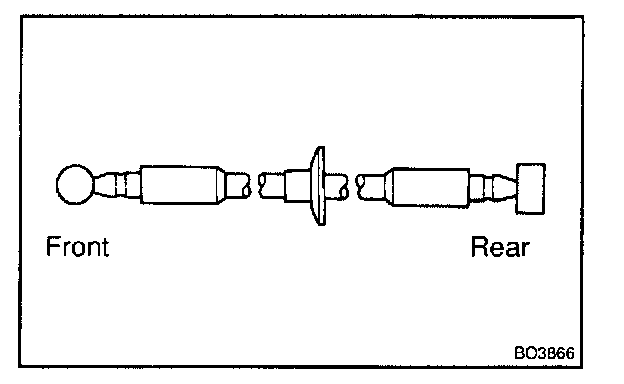

a. Push the rear side cable through the grommet.
b. Using a screwdriver, push the cable stopper into the grommet.
HINT:
- Tape the screwdriver tip before use.
- Do not damage the grommet with the screwdriver.
c. Clamp the front side cable to the junction block.
d. Pass the front side cable through the upper radiator support.
3. INSTALL HOOD LOCK RELEASE LEVER
4. CHECK HOOD LOCK CONTROL FOR PROPER OPERATION
After checking for proper operation, tighten the nut and 2 bolts to install the lock.
5. INSTALL THESE PARTS:
a. Headlight
b. Clearance light
c. Front bumper cover
d. Front fender liner
e. Front fender moulding
f. Radiator support opening cover
g. Engine under cover
