Rear Right Door Control System
Rear Right Door Control System

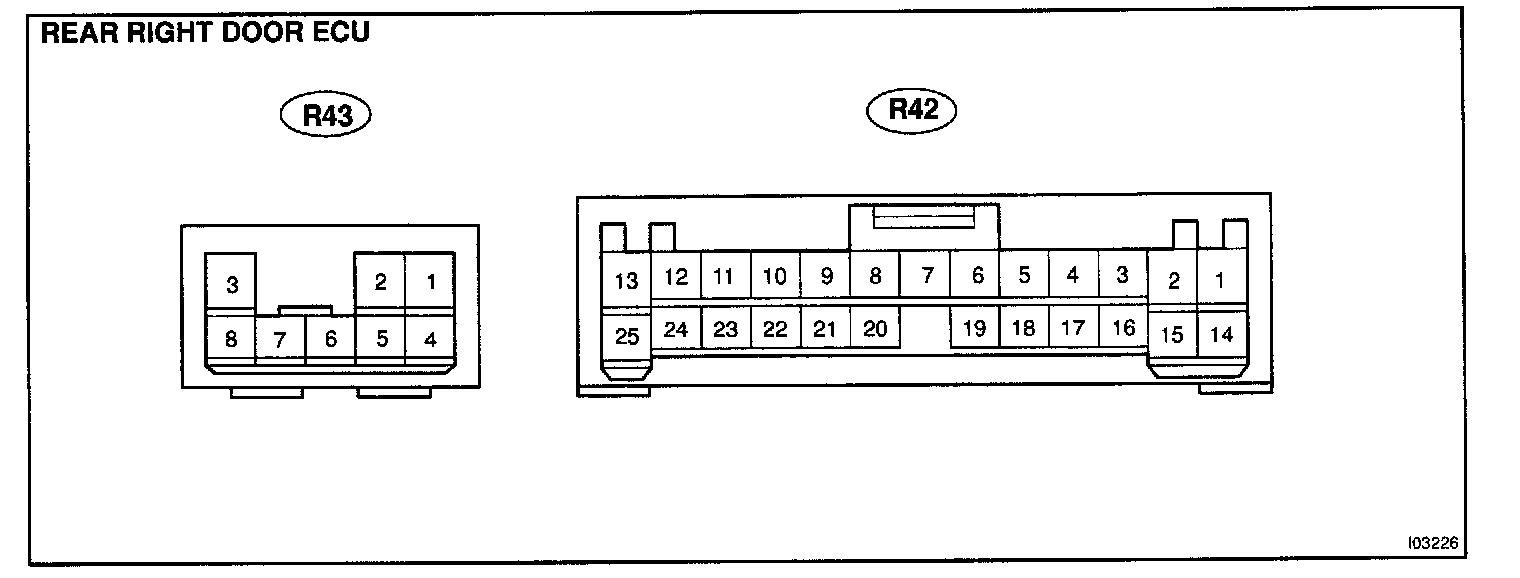

ECU Views - (R42, R43):

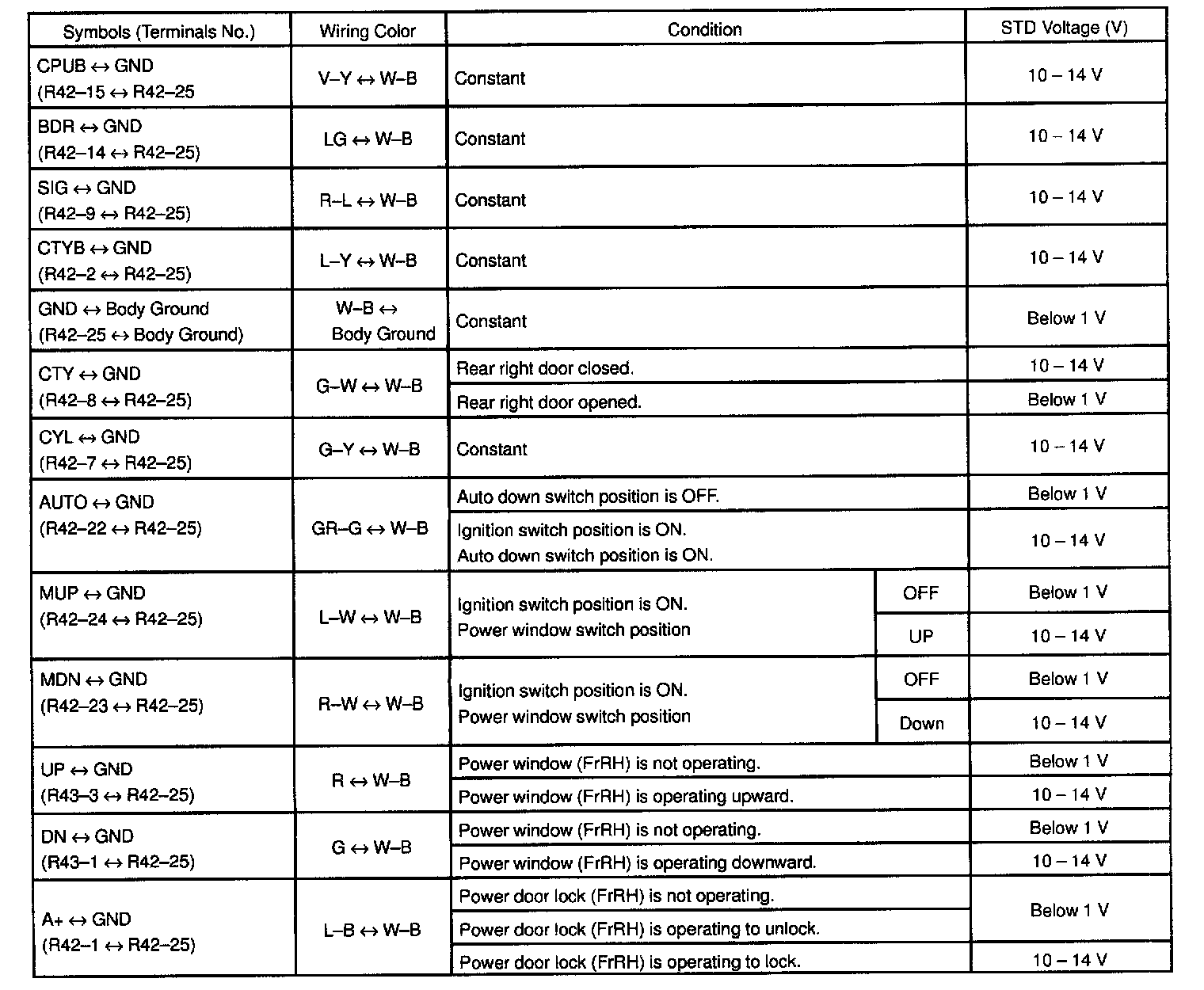

ECU Pinouts - (R42, R43) (Part 1 Of 2):

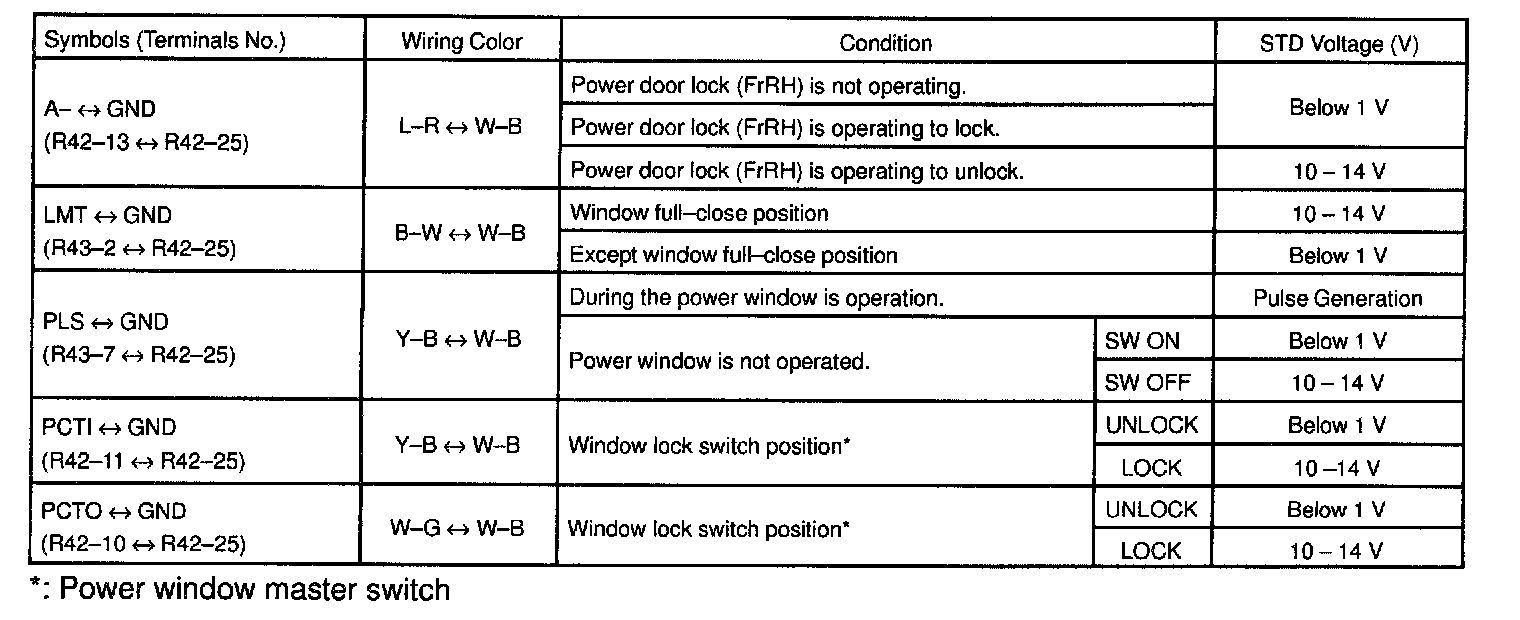

ECU Pinouts - (R42, R43) (Part 2 Of 2):
ECU Terminal Values
