Rear Left Door Control System
Rear Left Door Control System

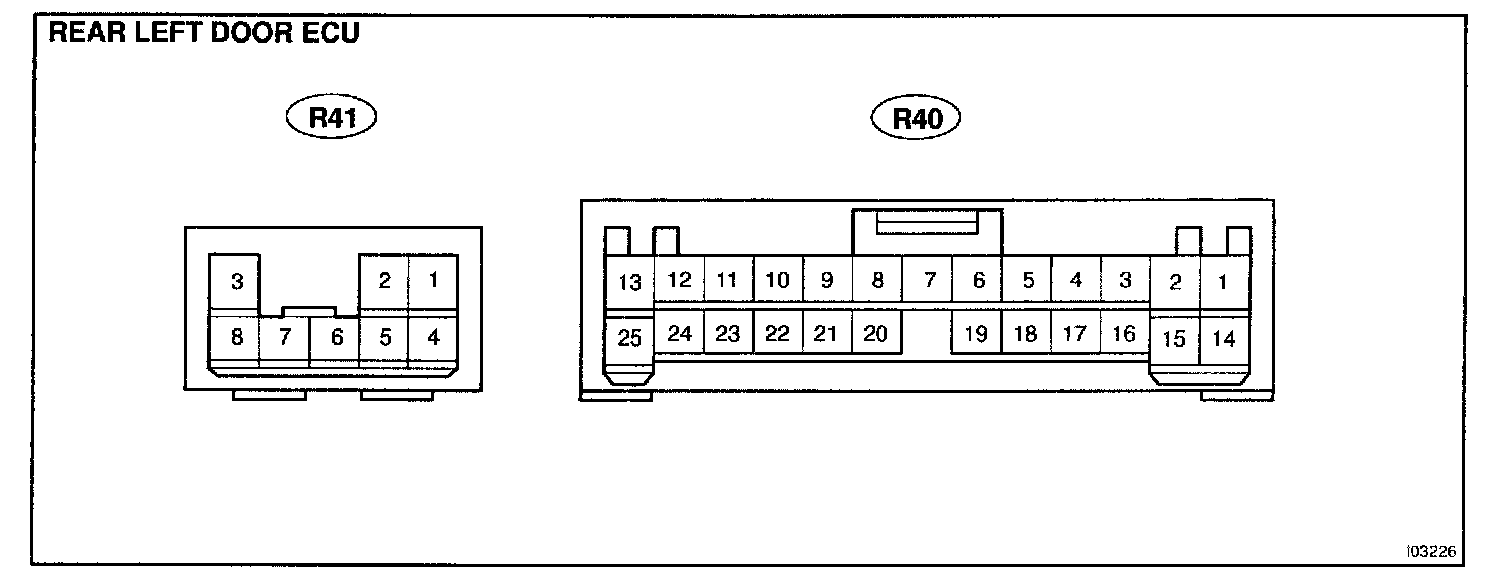

ECU Views - (R41, R40):
ECU Views - (R41, R40) (Part 1 Of 2):
ECU Views - (R41, R40) (Part 2 Of 2):

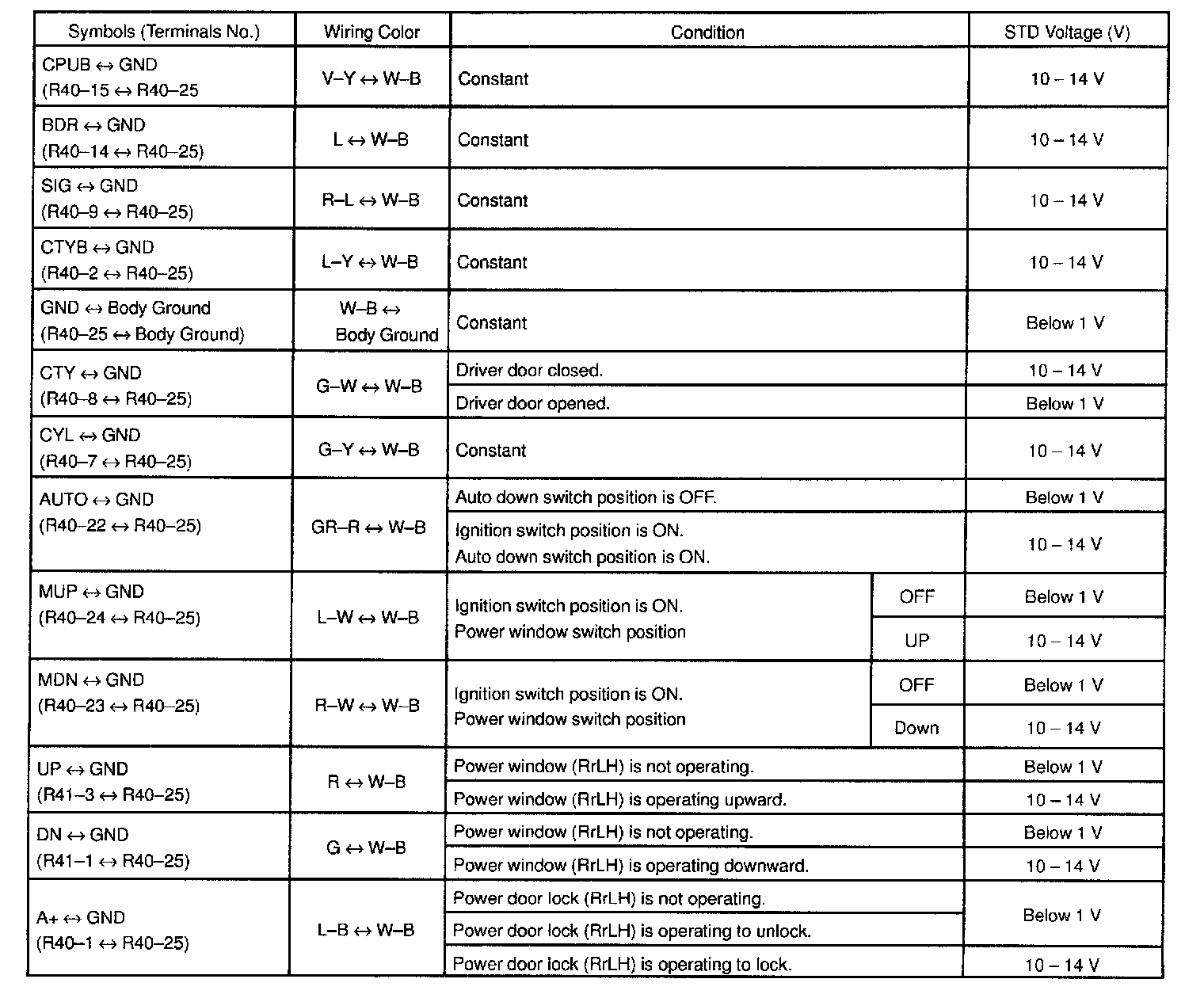

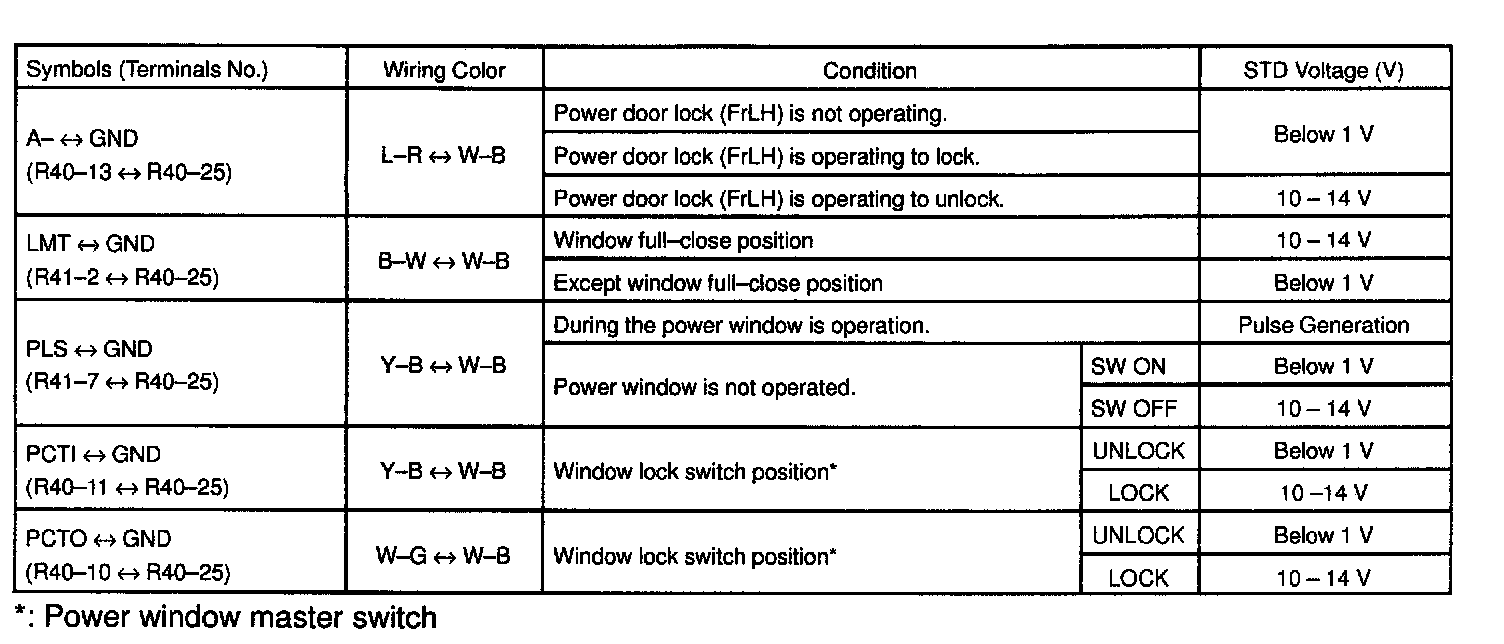

ECU Terminal Values
