Passenger Door Control System
Passenger Door Control System

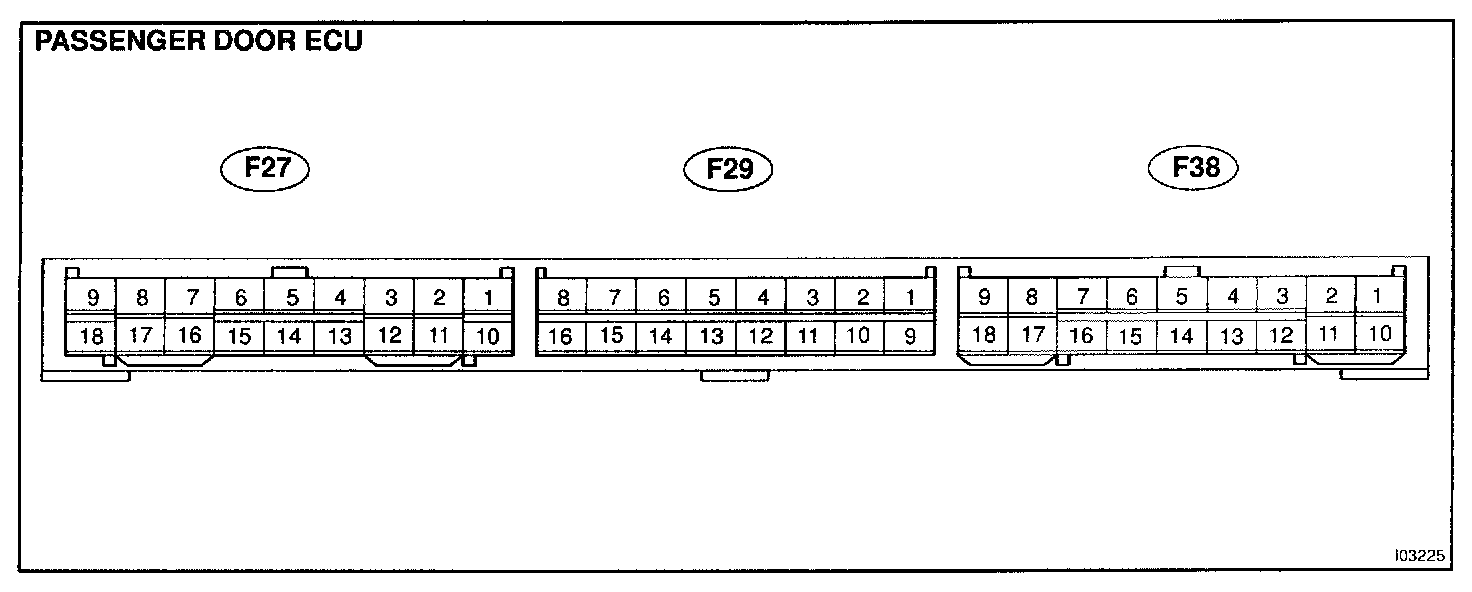

ECU Views - ( F27, F29, F38):

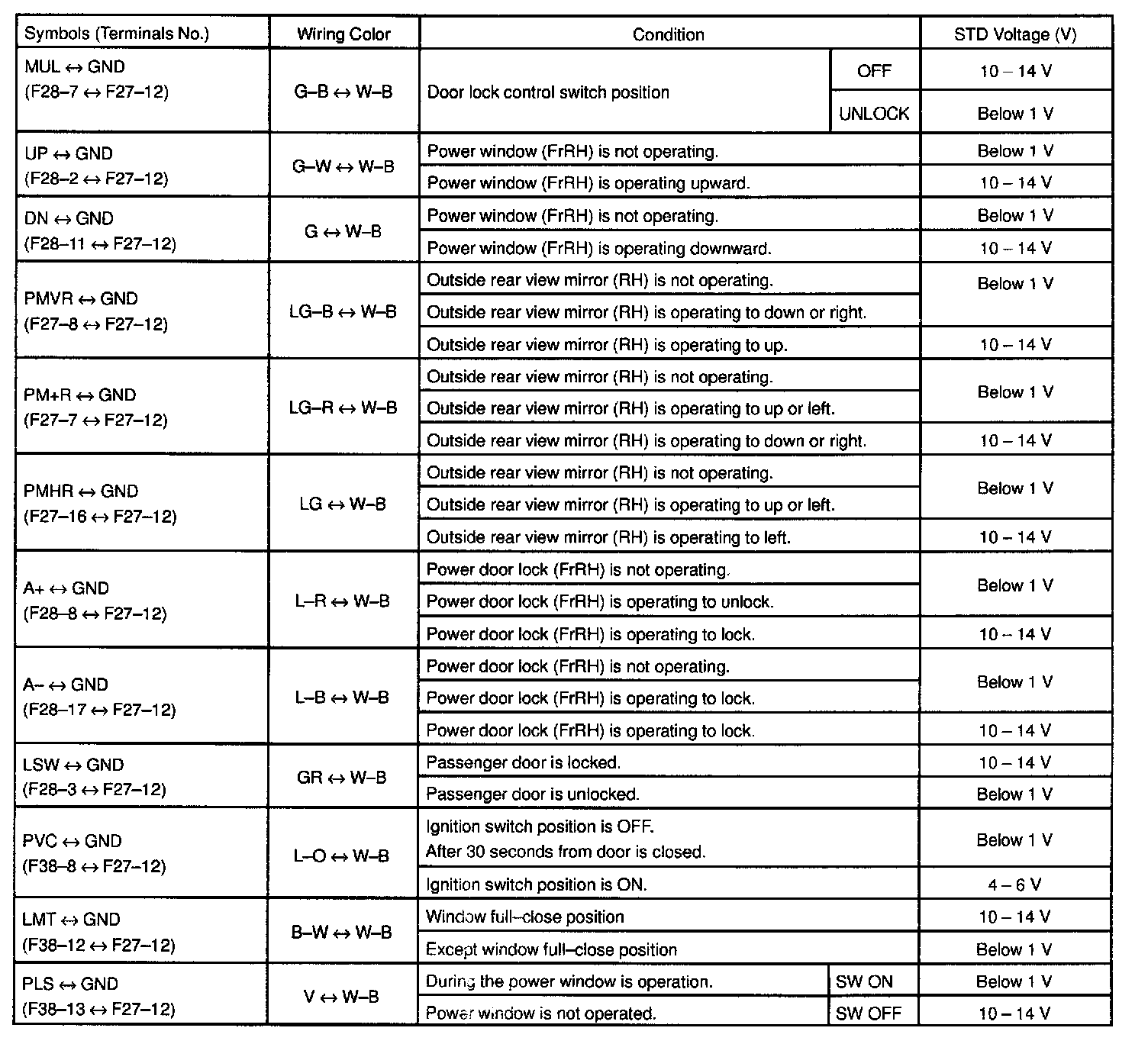

ECU Pinouts - ( F27, F29, F38) ( Part 1 Of 2):

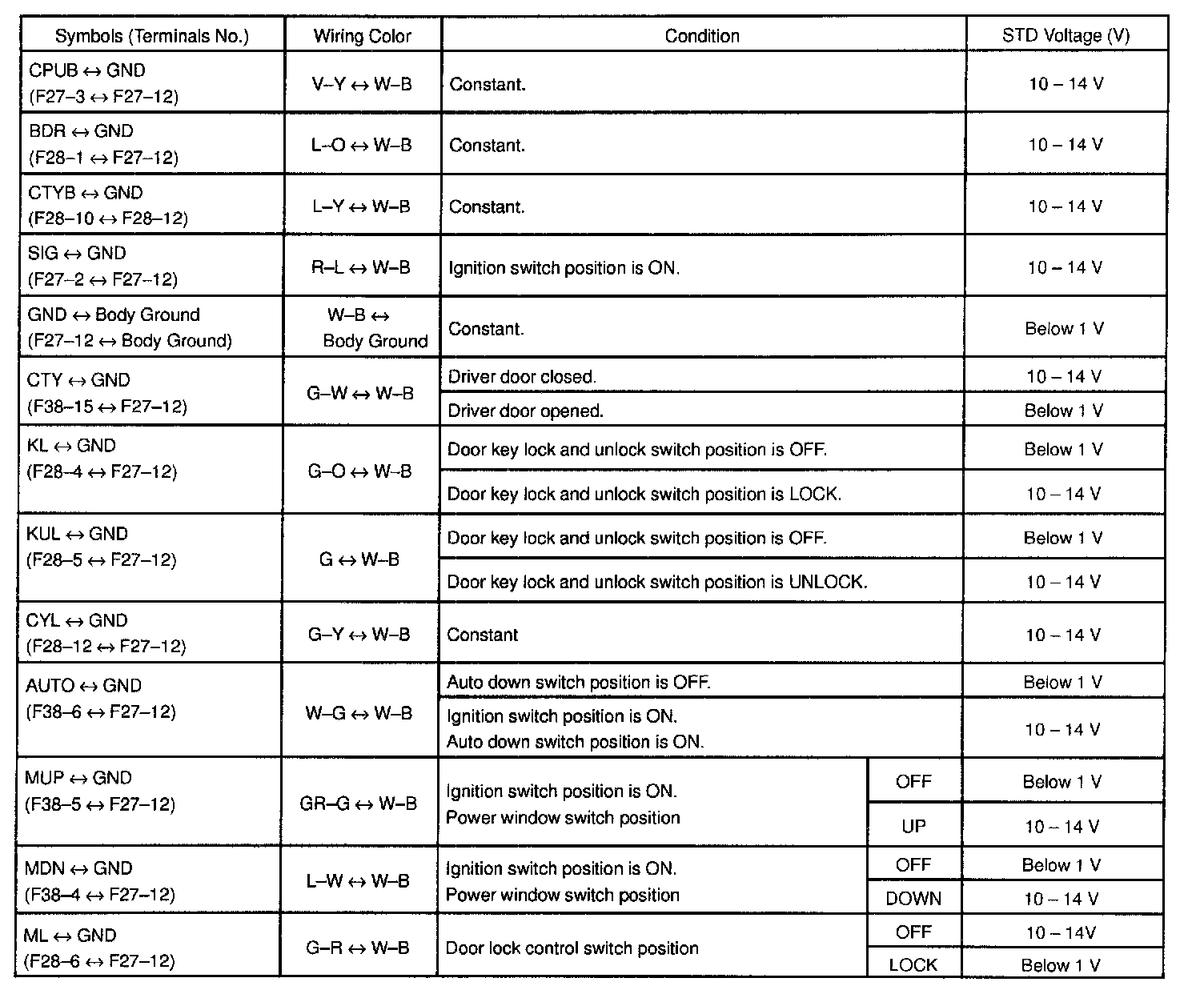

ECU Pinouts - ( F27, F29, F38) ( Part 2 Of 2):
ECU Terminal Values
