Jam Protection Limit Switch Circuit

CIRCUIT DESCRIPTION
Jam protection limit switch is built-in the power window motor This switch functions to turn "OFF" before the top dead center, and ECU reads this "OFF signal resulting in closing the window fully.

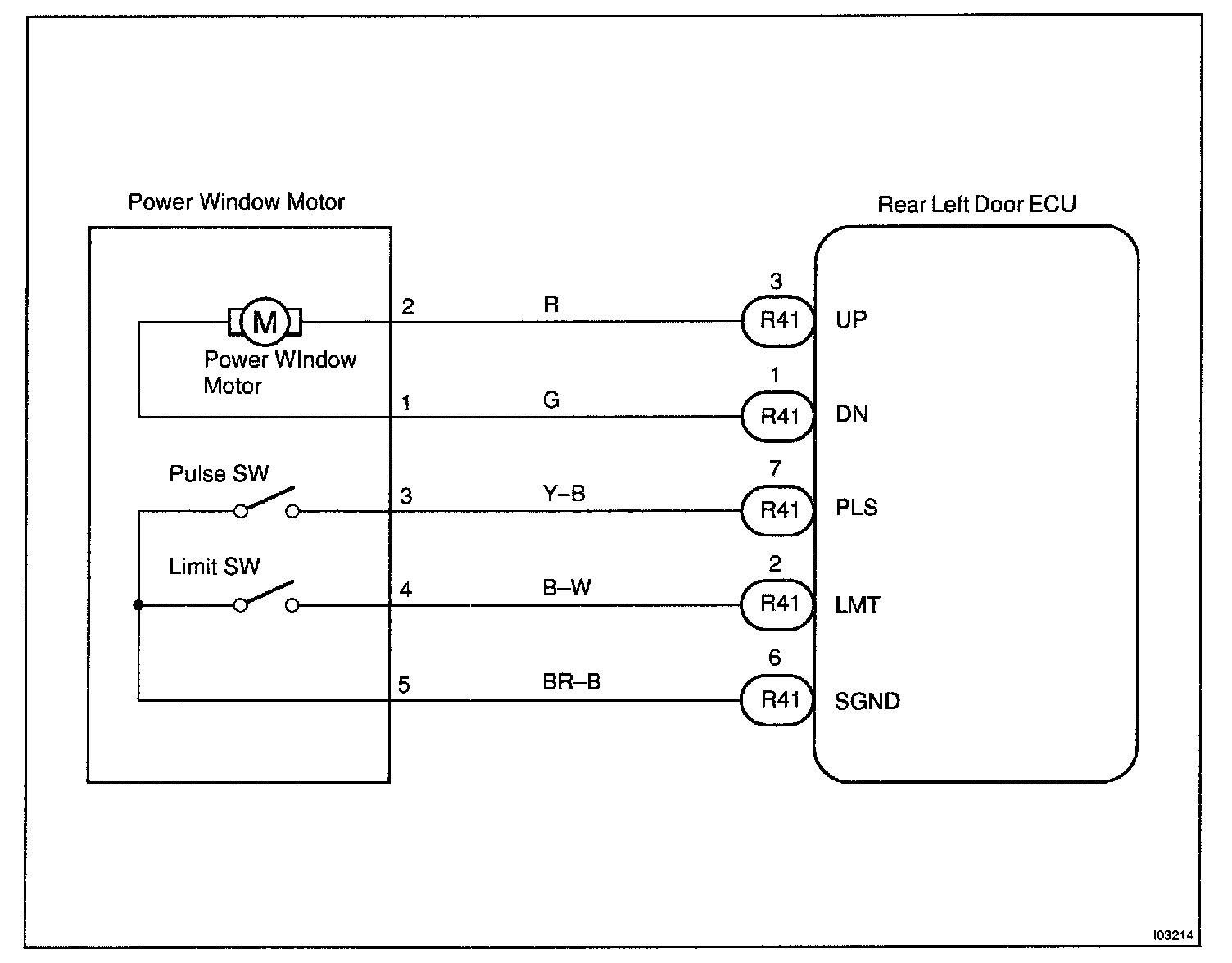

Wiring Diagram:

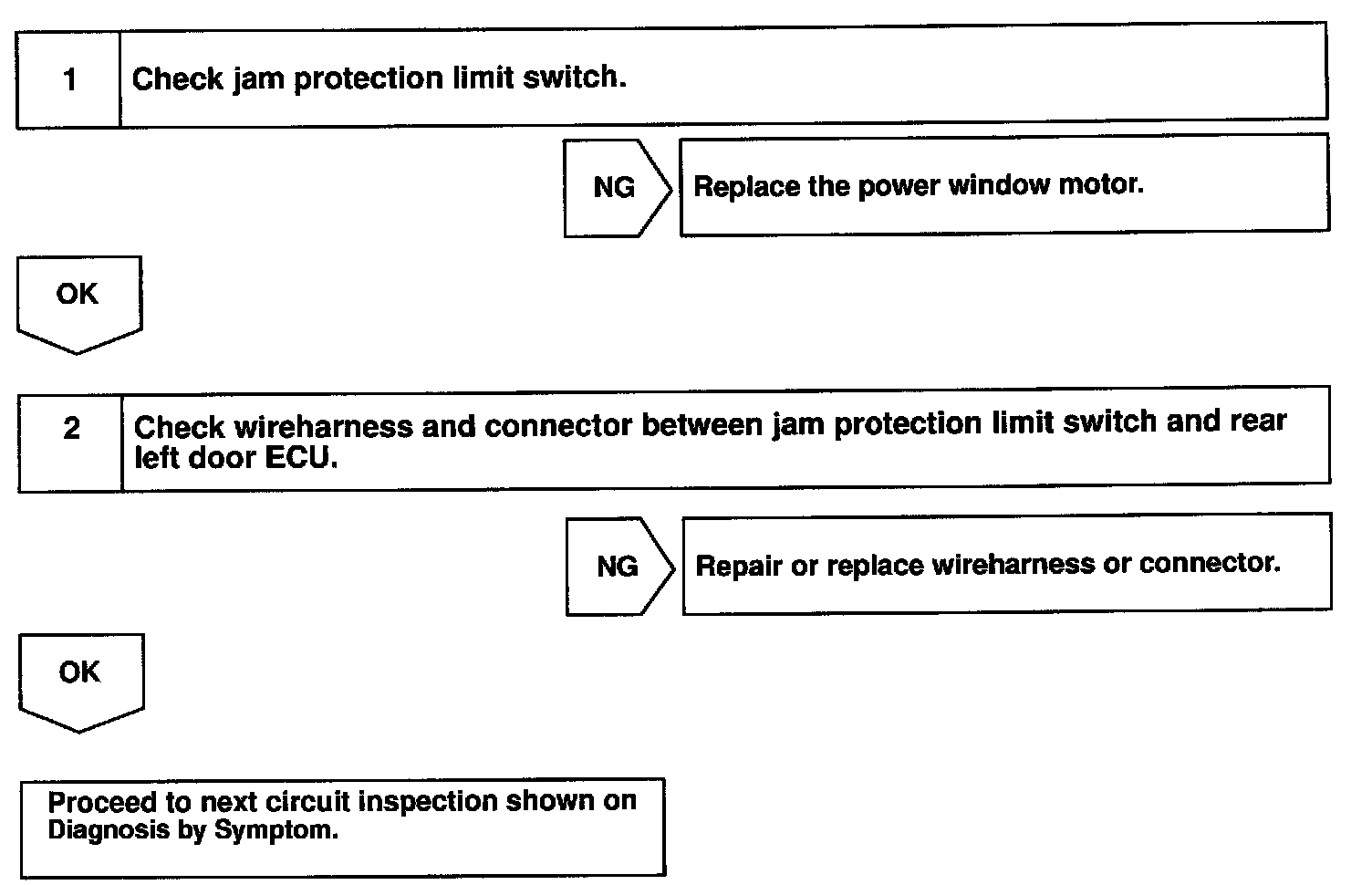

Steps 1 - 2:

INSPECTION PROCEDURE
