Pioneer Made & LEXUS Navigation System

Pioneer Made and LEXUS Navigation System








1. INSPECT POWER AMPLIFIER CIRCUIT

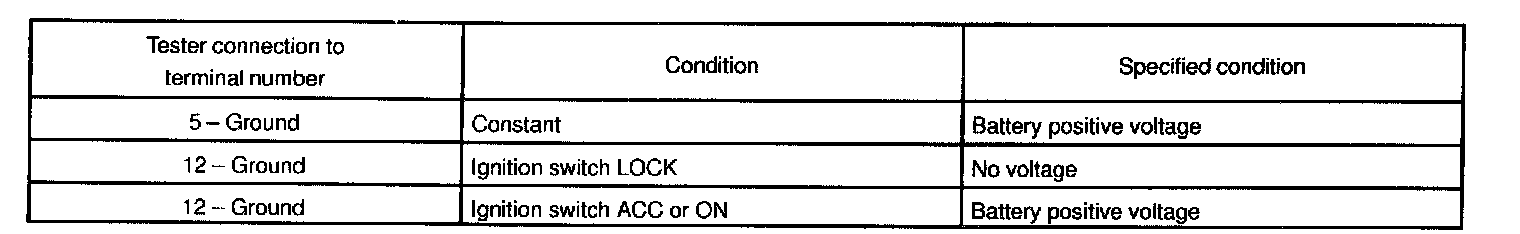

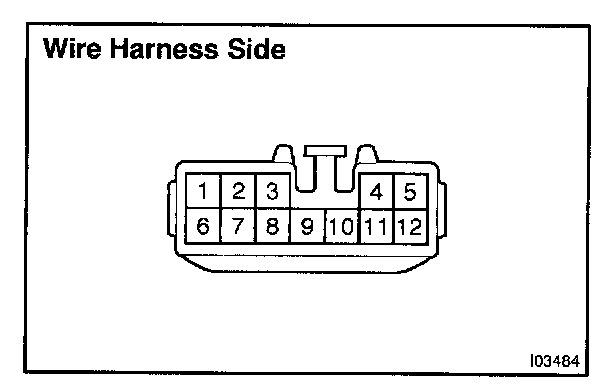

Disconnect the connector from the power amplifier and inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect the circuits connected to other parts.








2. INSPECT CD AUTO CHANGER CIRCUIT

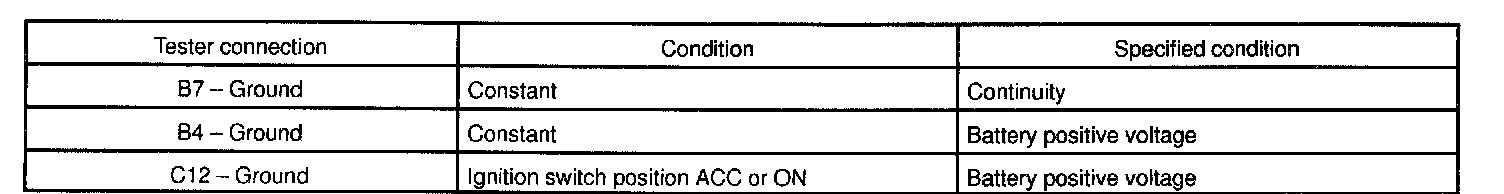

Disconnect the connectors from the controller and inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect the circuits connected to other parts.

HINT: Since the signals to and from the AP+, AP-, SGND, GND1 terminals are serial signals, they cannot ordinarily be measured with a tester.








3. INSPECT RADIO RECEIVER ASSEMBLY CIRCUIT

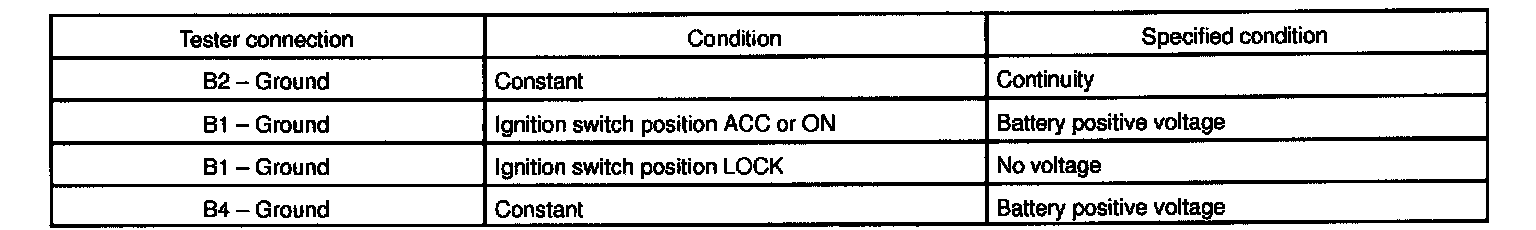

Disconnect the connectors from the radio receiver assembly. And inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect the circuits connected to other parts.

HINT: Check the wire harness between power amplifier and the CD auto changer, between radio receiver assembly and power amplifier.

4. INSPECT GLASS PRINTED ANTENNA
Antenna

5. REPAIR GLASS PRINTED ANTENNA
Antenna
