1. INSPECT RADIO RECEIVER ASSEMBLY CIRCUIT
Disconnect the connectors from the radio receiver assembly.

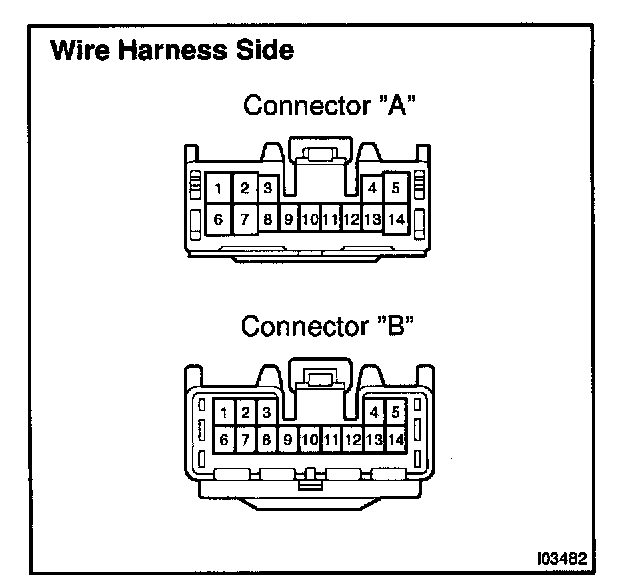

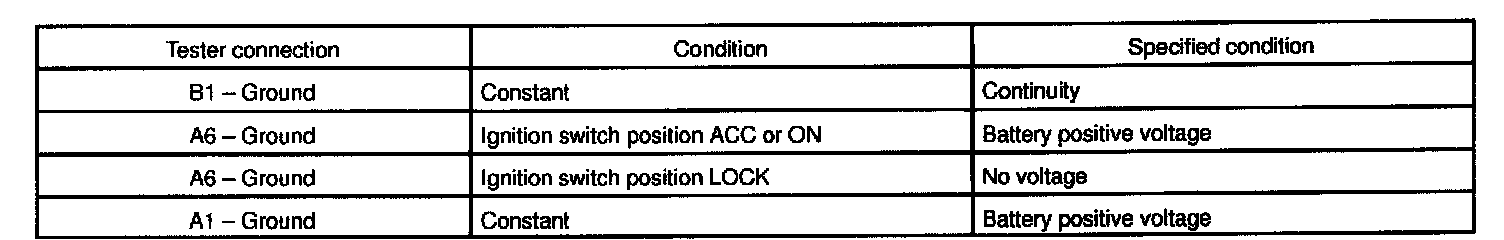

And inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect the circuits connected to other parts.

HINT: Check the wire harness between power amplifier and the CD auto changer, between radio receiver assembly and power amplifier.


HINT: Check the wire harness between power amplifier and the CD auto changer, between radio receiver assembly and power amplifier.

2. INSPECT GLASS PRINTED ANTENNA
Antenna

3. REPAIR GLASS PRINTED ANTENNA
Antenna
