LS 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Theft Deterrent System
Theft Deterrent System

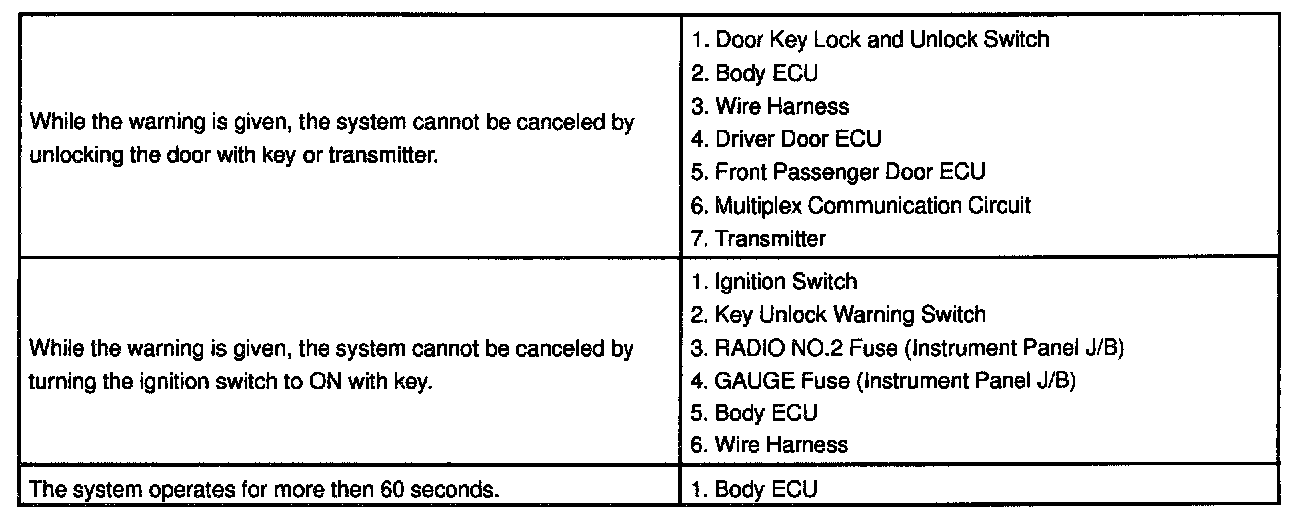

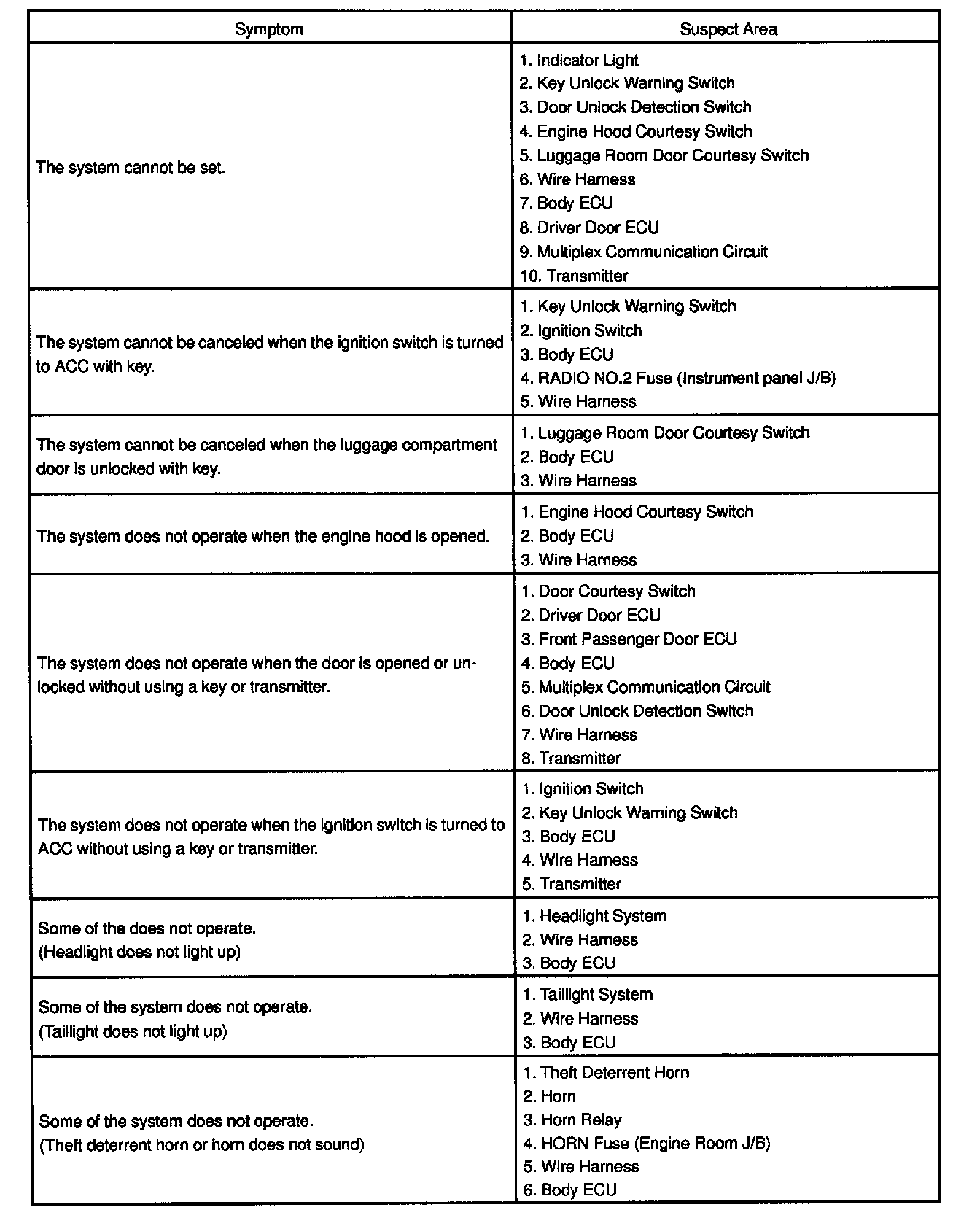

Part 1 Of 2:
Part 2 Of 2:
This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.
