Initial Inspection

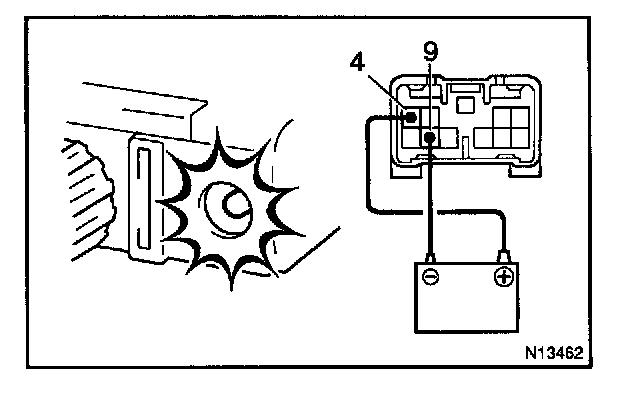

1. INSPECT RHEOSTAT LIGHT CONTROL VOLUME OPERATION
Connect the positive (+) lead from the battery to terminal 4 and negative (-) lead to terminal 9, and check that the warning light lights up.
If operation is not as specified, replace the rheostat light control volume.




2. INSPECT RHEOSTAT LIGHT CONTROL VOLUME CIRCUIT

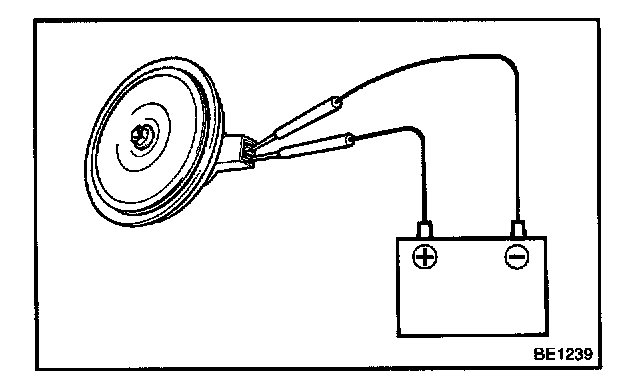

3. INSPECT HORN OPERATION
Connect positive (+) lead to terminal 1 and negative (-) lead to terminal 2 of theft deterrent horn connector, and that the theft deterrent horn blows.
If operation is not as specified, replace the horn.




4. INSPECT HORN CIRCUIT

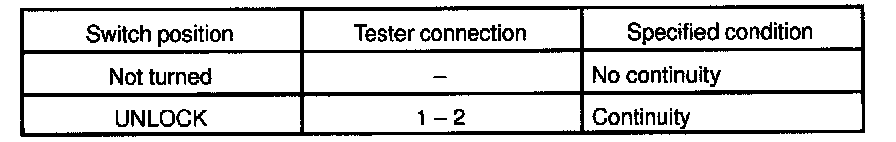

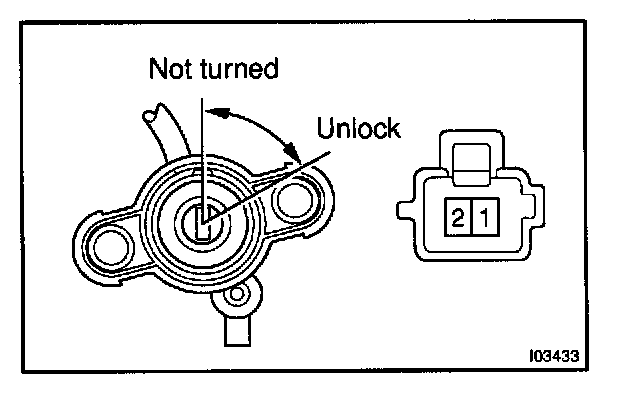

5. LUGGAGE COMPARTMENT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
If continuity is as specified, inspect the switch circuit.




6. LUGGAGE COMPARTMENT DOOR KEY LOCK AND UNLOCK SWITCH CIRCUIT

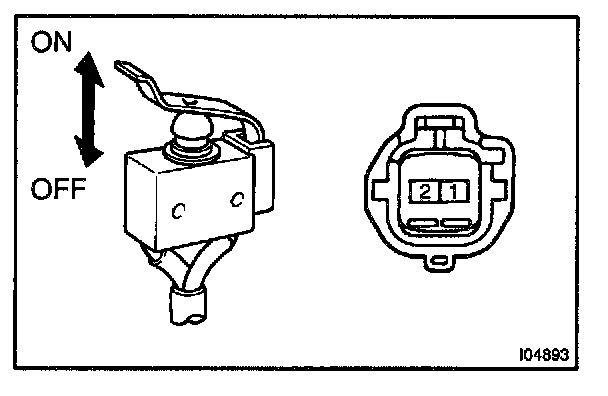

7. ENGINE HOOD COURTESY SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
If continuity is as specified, inspect the switch circuit.




8. ENGINE HOOD COURTESY SWITCH CIRCUIT
