Home >> Lexus >> 2000 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Pre-Check

Pre-Check

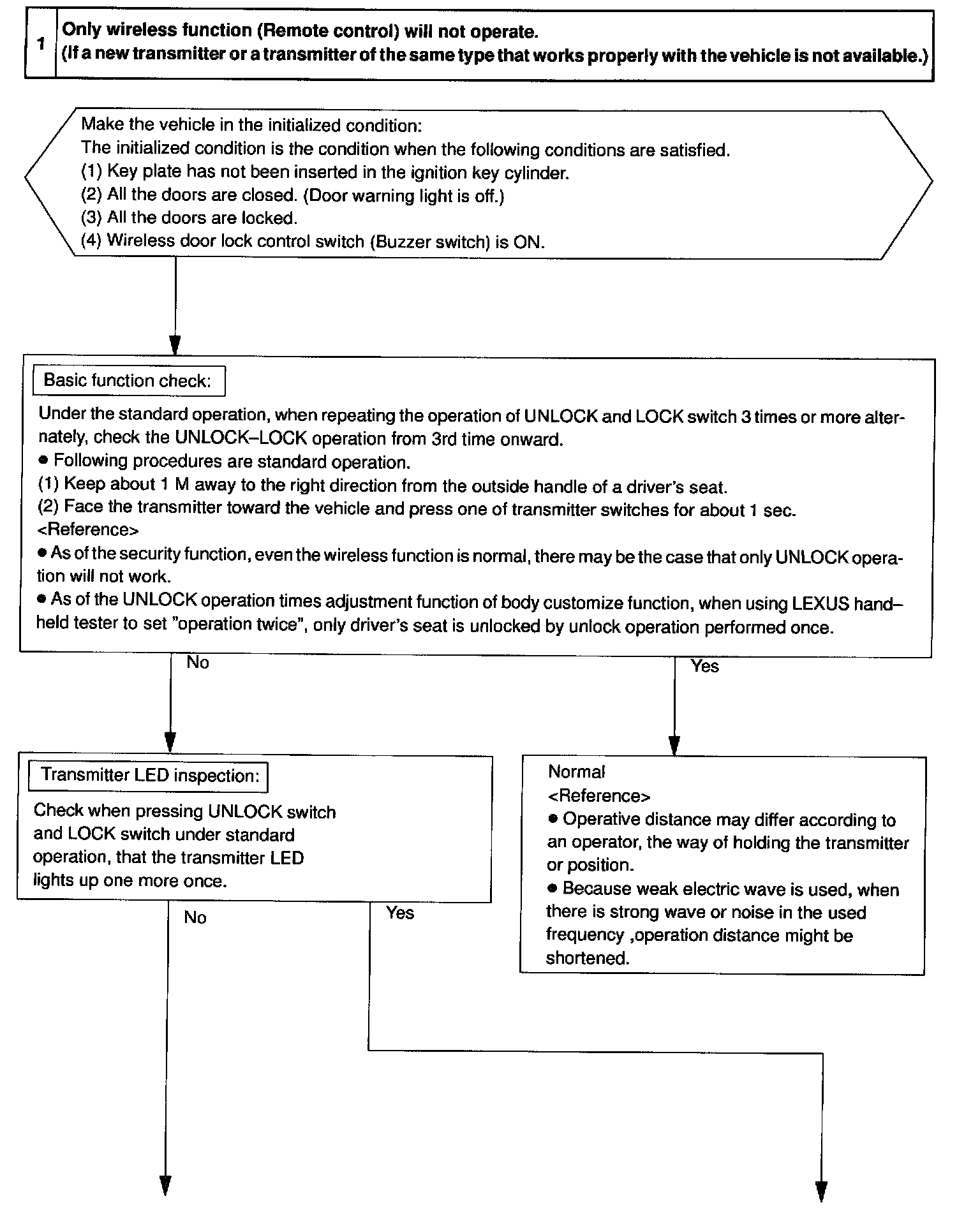

Step - 1 (Part 1 Of 5):

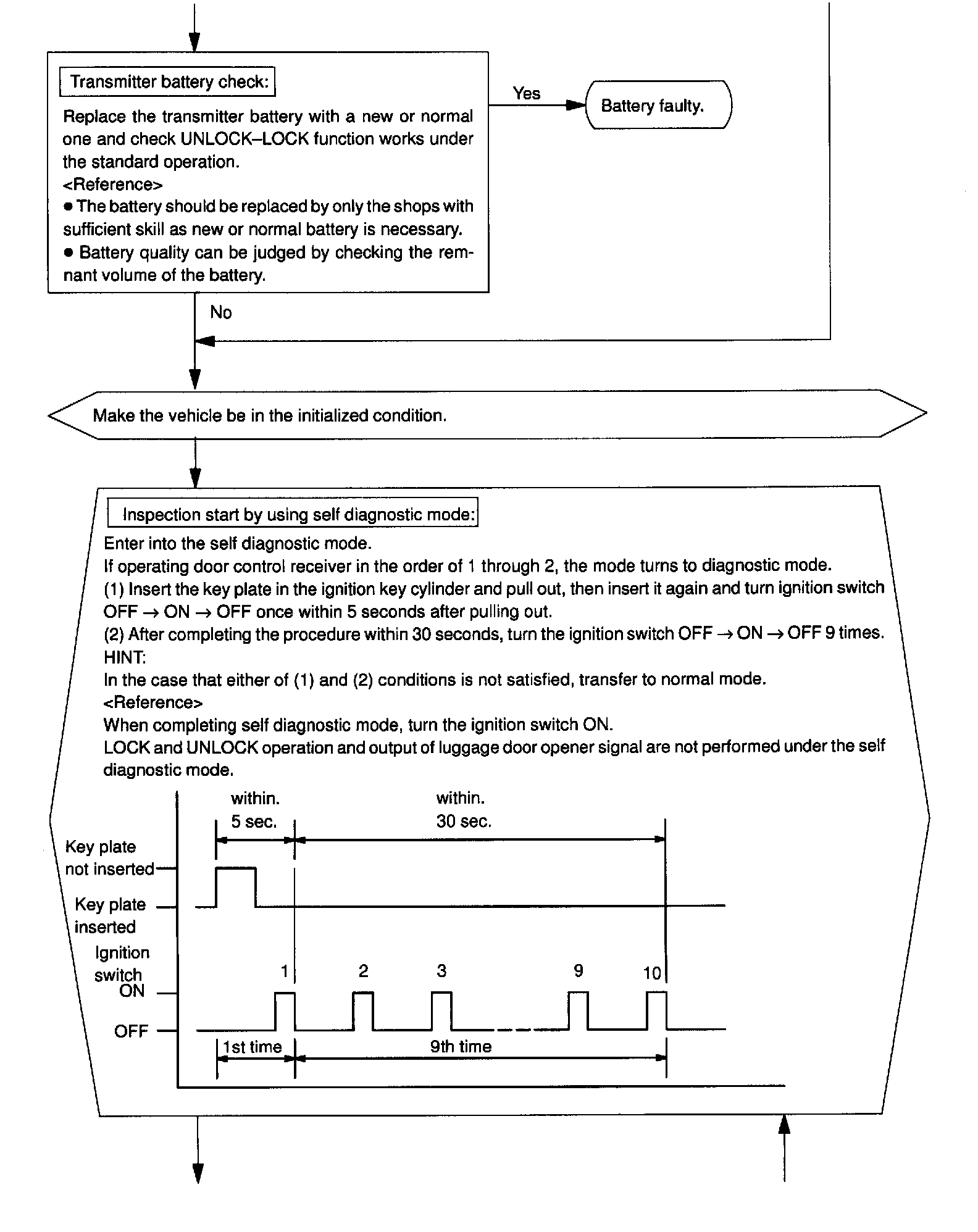

Step - 1 (Part 2 Of 5):

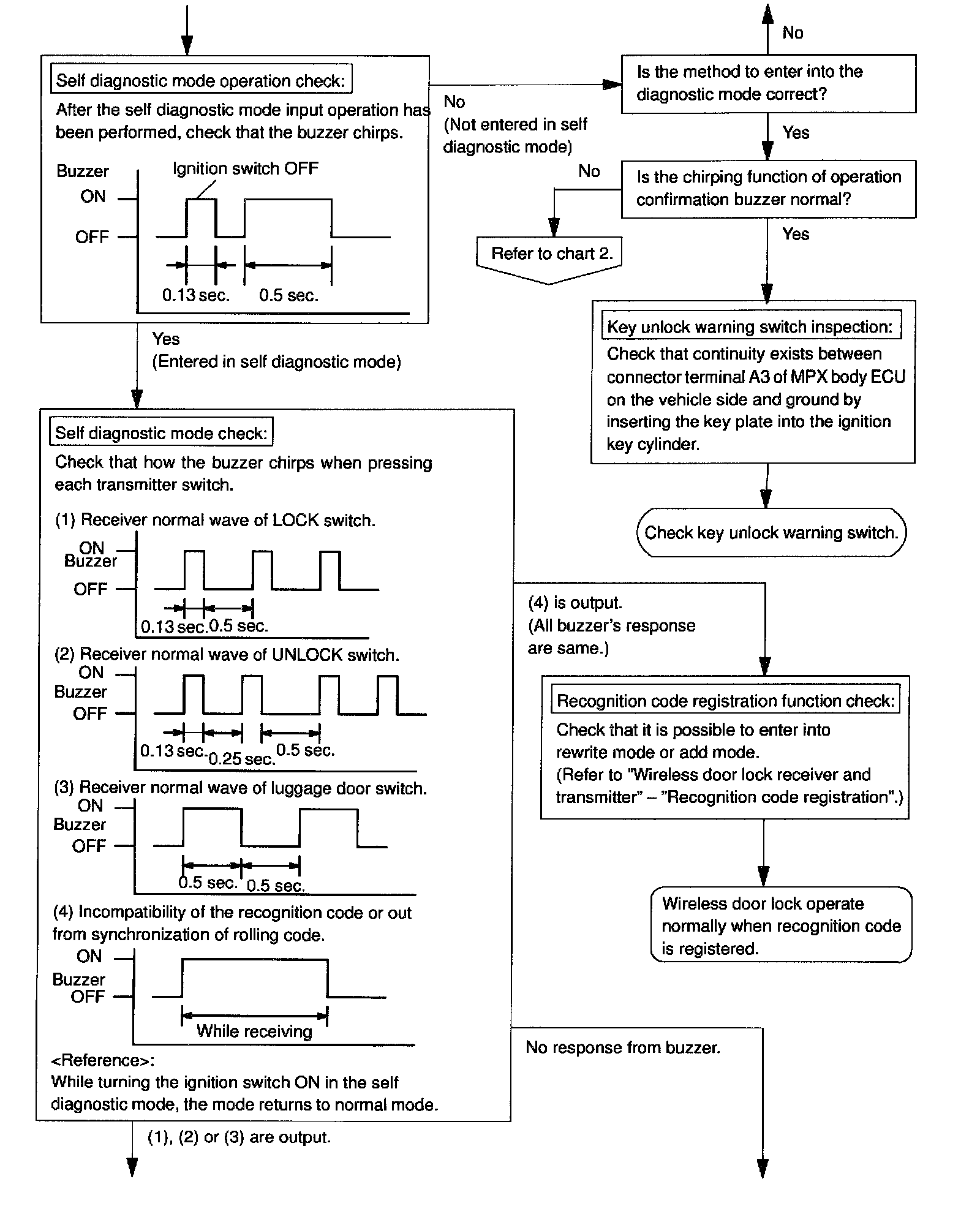

Step - 1 (Part 3 Of 5):

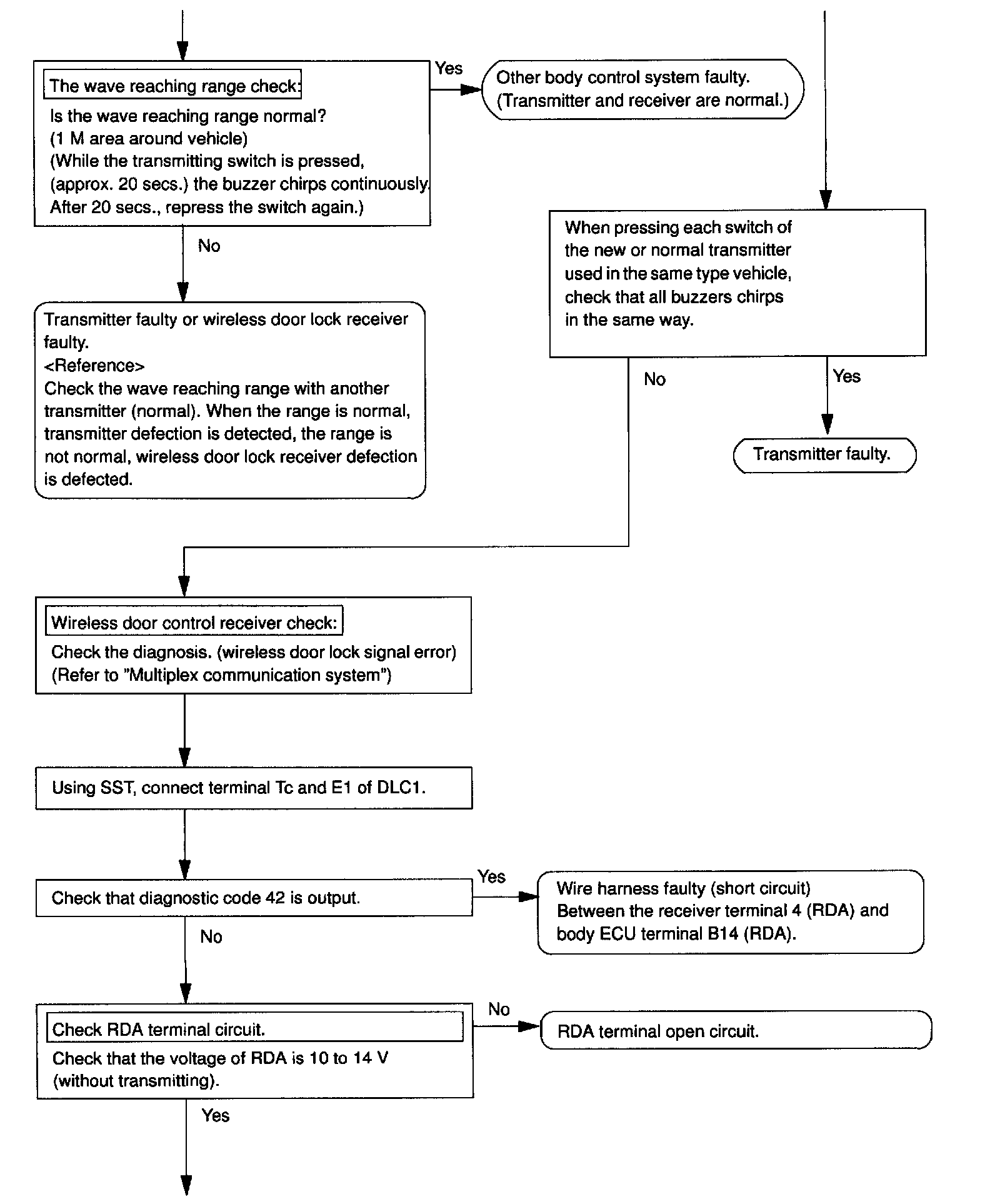

Step - 1 (Part 4 Of 5):

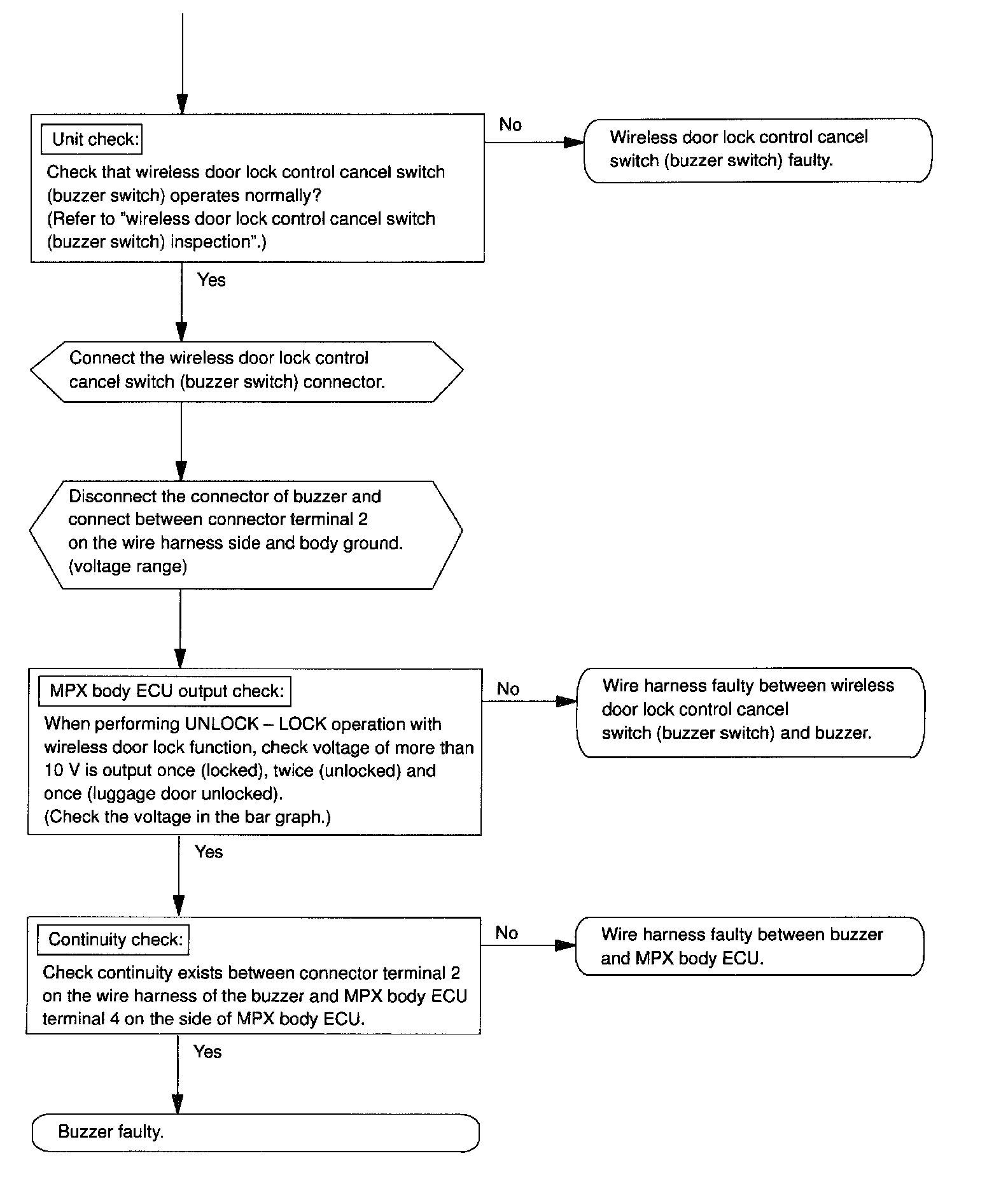

Step - 1 (Part 5 Of 5):

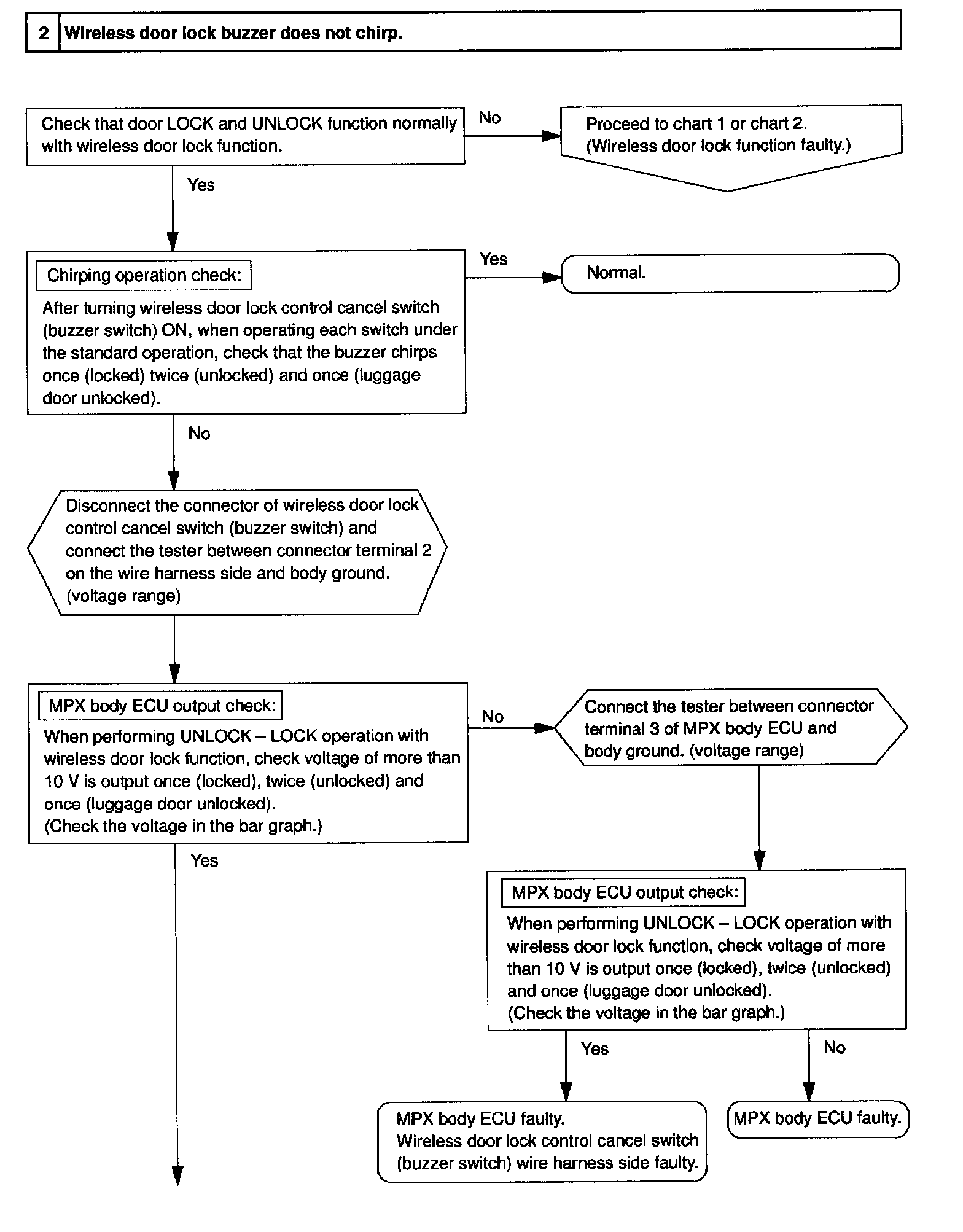

Step - 2 (Part 1 Of 2):



Step - 2 (Part 2 Of 2):
