P1755

CIRCUIT DESCRIPTION

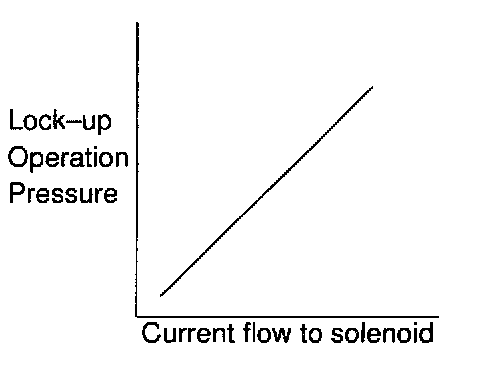

The amount of current flow to the solenoid is controlled by the (*) duty ratio of the ECM output signal. The higher the duty ratio becomes, the higher the lock-up hydraulic pressure becomes during the lock-up operation.




(*) Duty Ratio

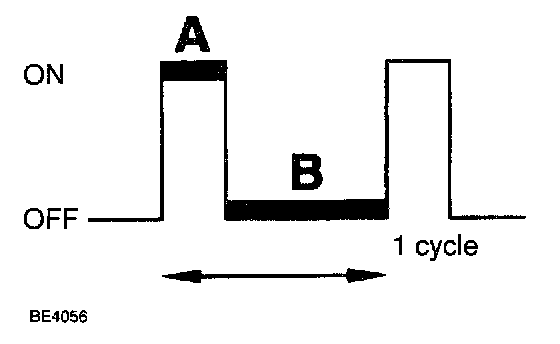

The duty ratio is the ratio of the period of continuity in one cycle. For example, if A is the period of continuity in one cycle, and B is the period of non-continuity, then

(*) Duty Ratio = [A/(A+B)] x 100 (%)

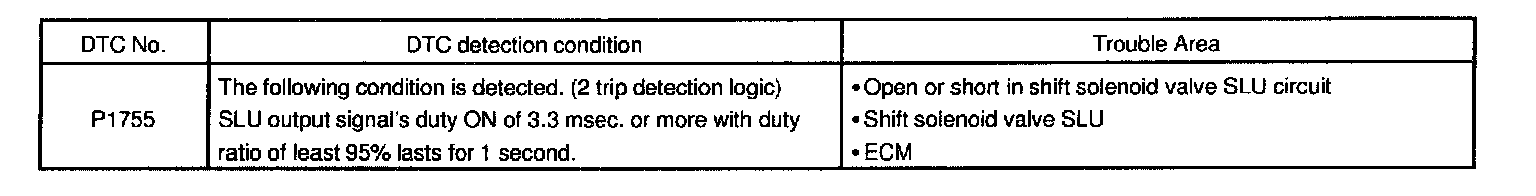

DETECTING CONDITIONS

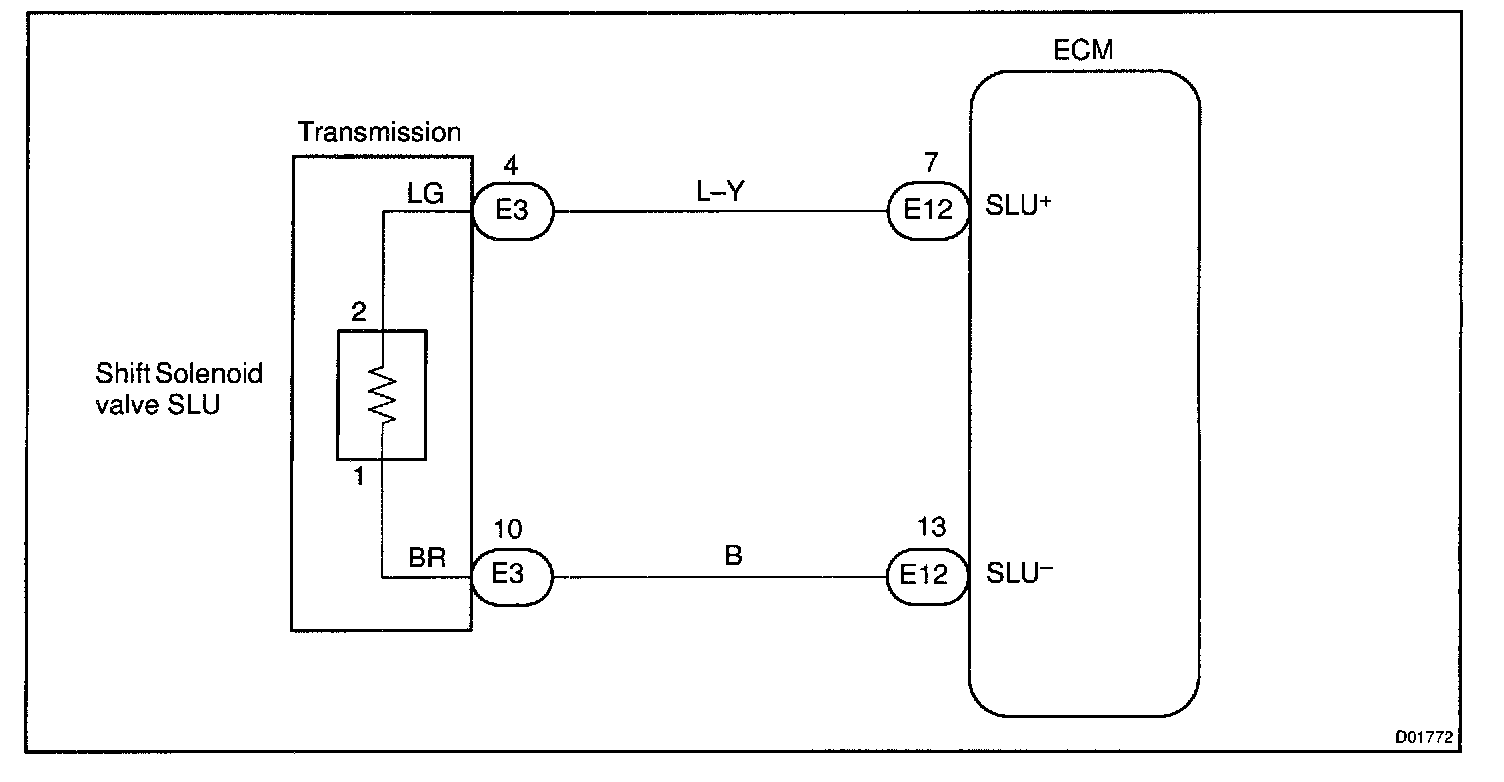

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

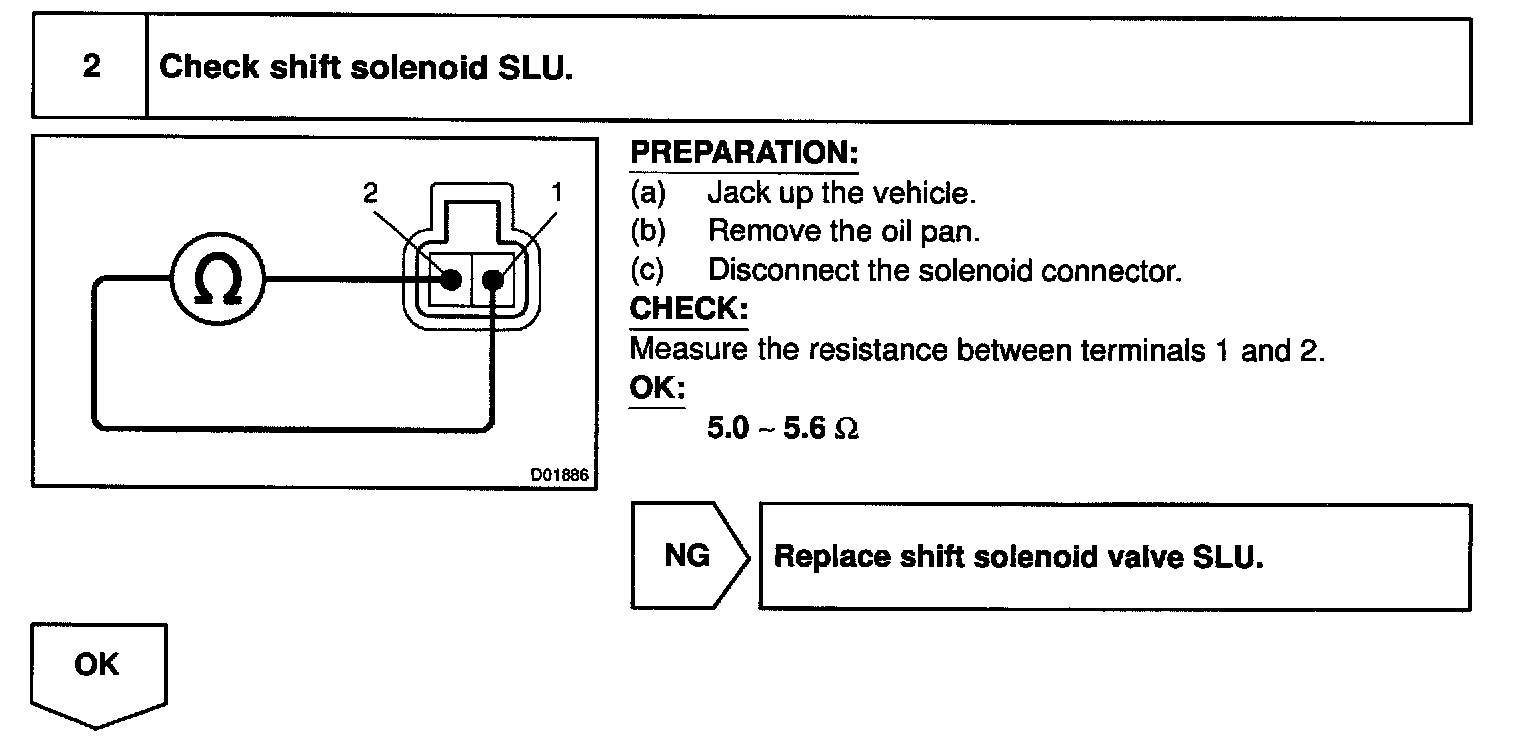

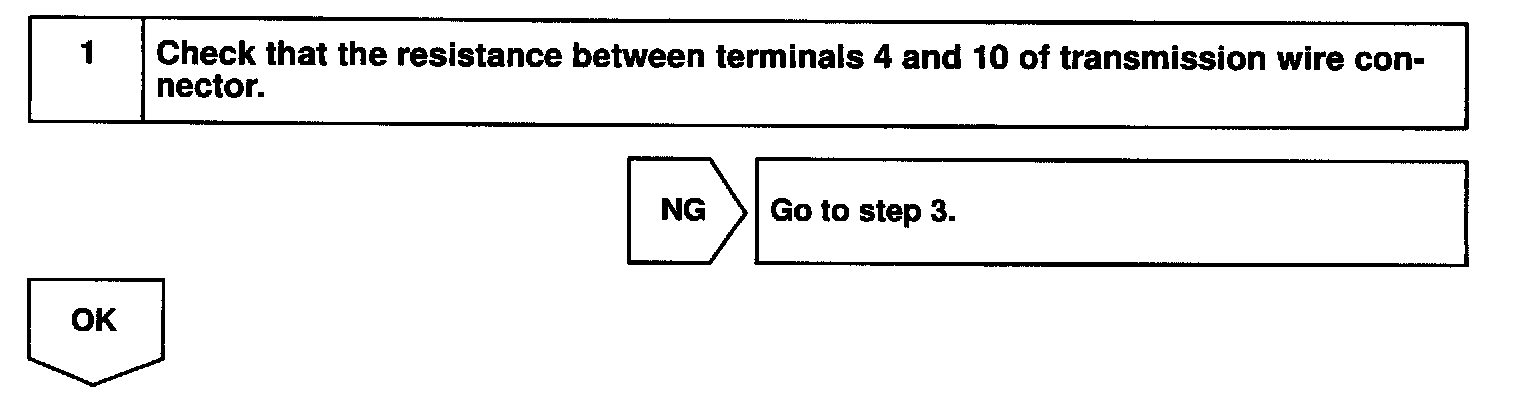

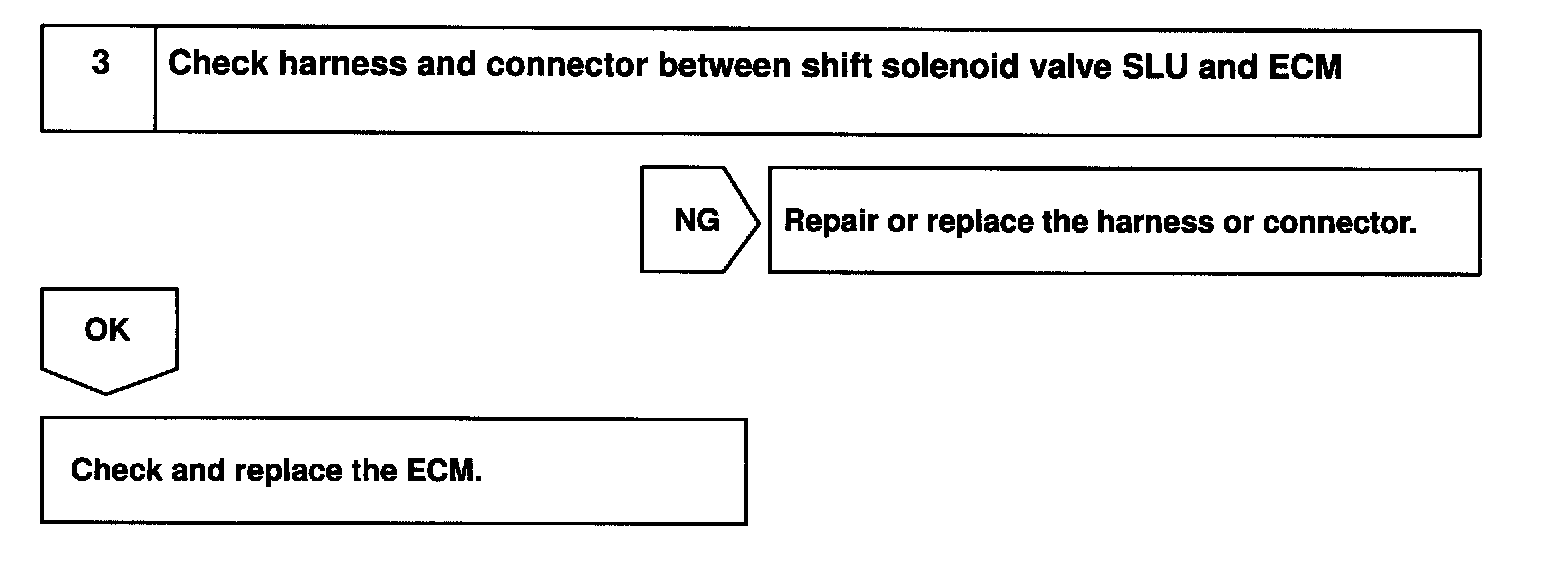

INSPECTION PROCEDURE
