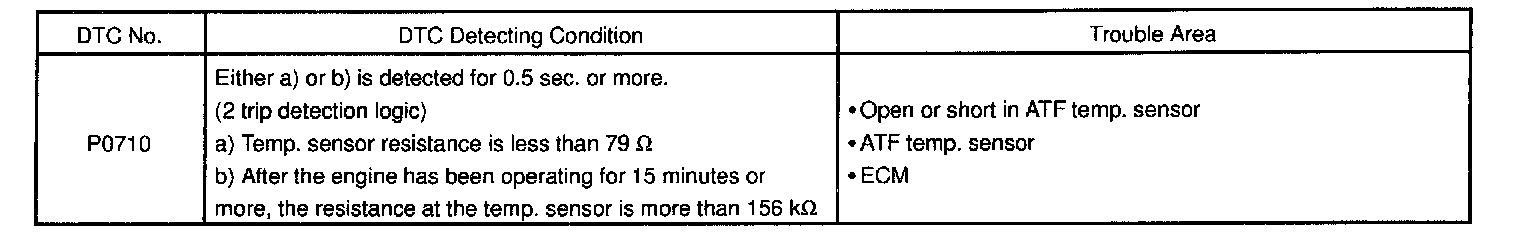

Troubleshooting

CIRCUIT DESCRIPTION
The ATF temperature sensor converts fluid temperature into a resistance value which is in put into the ECM.

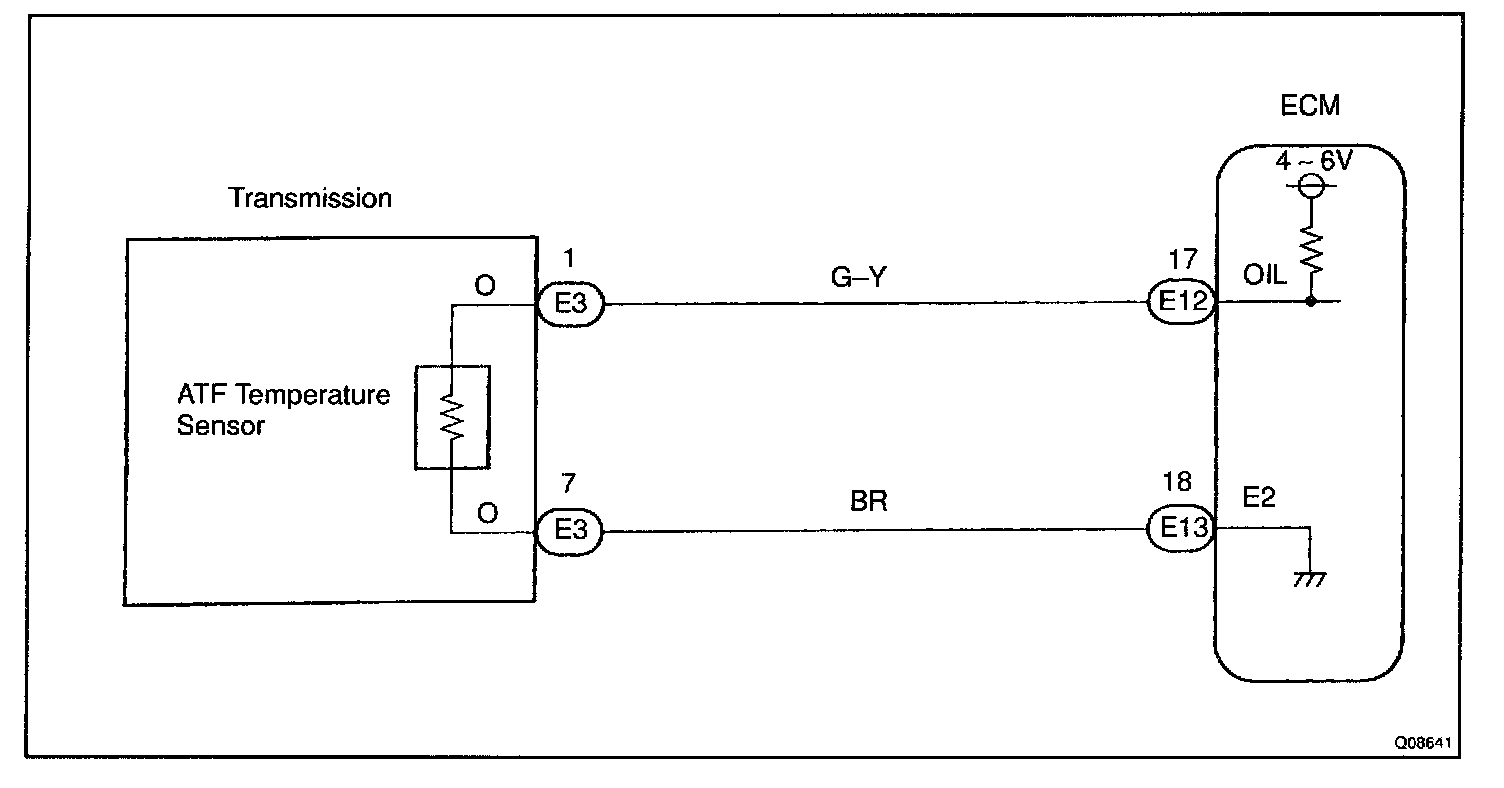

WIRING DIAGRAM

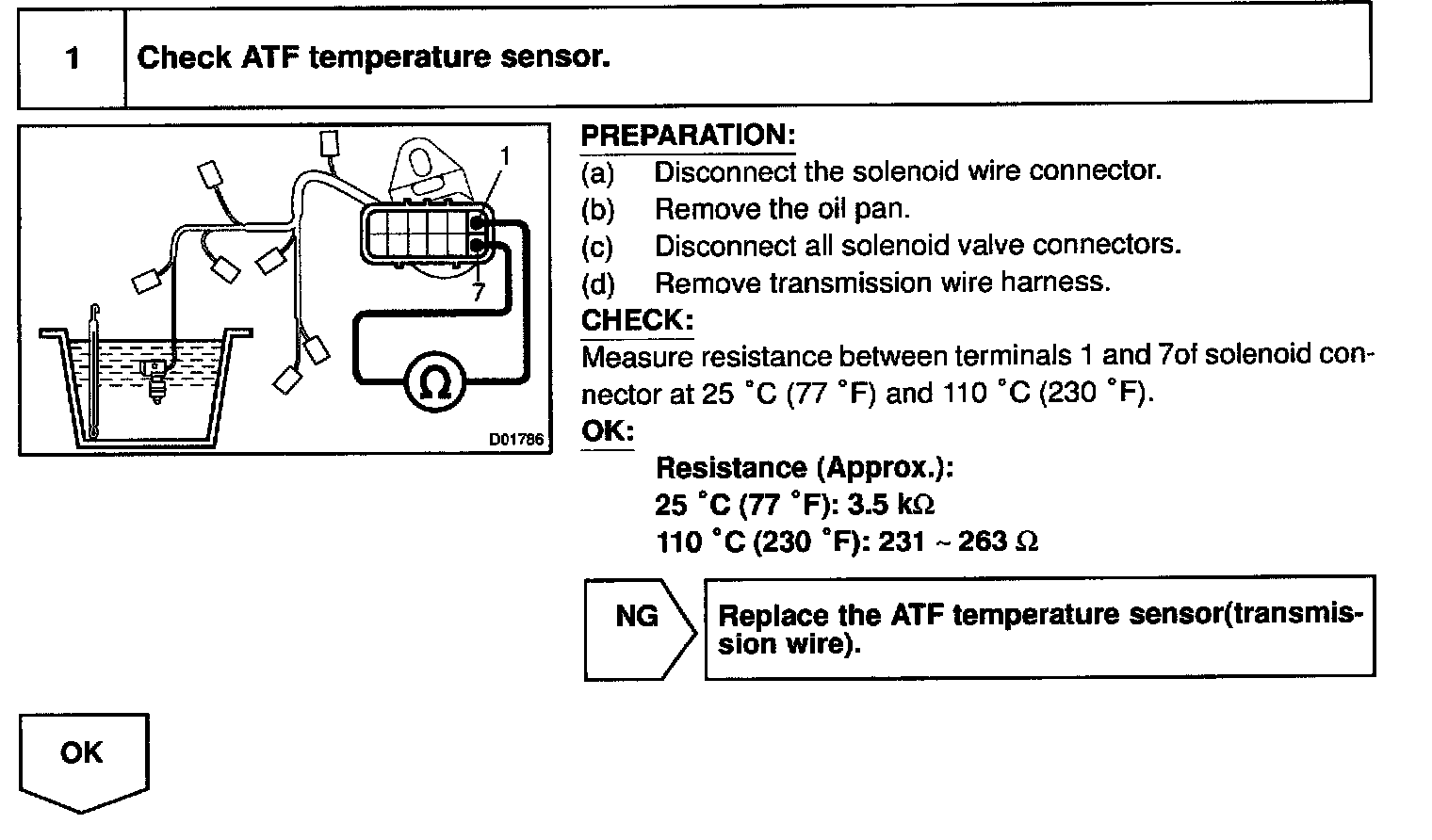

Step 1:

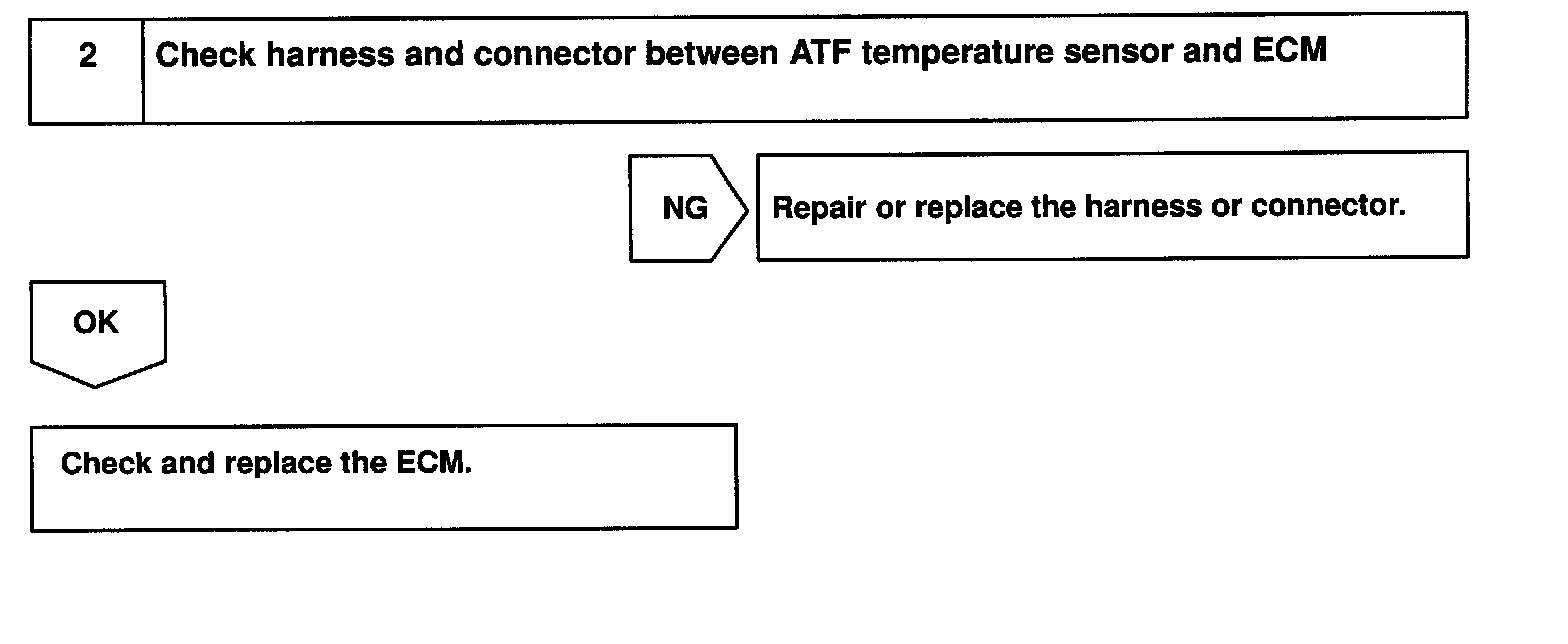

Step 2:

INSPECTION PROCEDURE
