DTC 86

CIRCUIT DESCRIPTION
The height control switch comes on when it is pressed to the "HIGH" side and goes off when pressed to the "NORM" side. The ECU detects the height control switch condition, and raises or lowers the vehicle height accordingly.

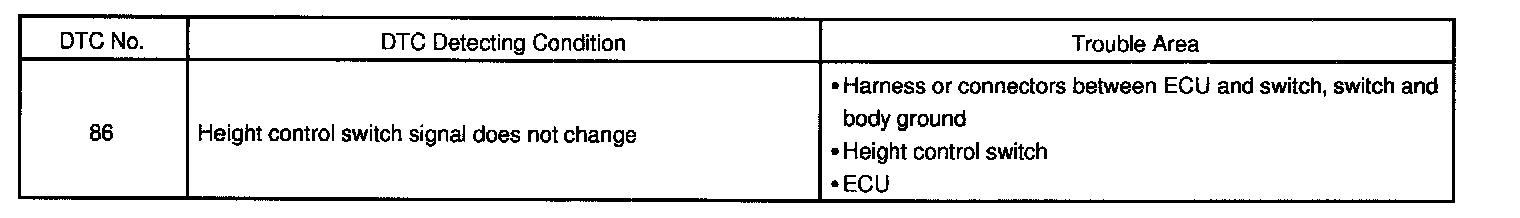

DETECTING CONDITIONS

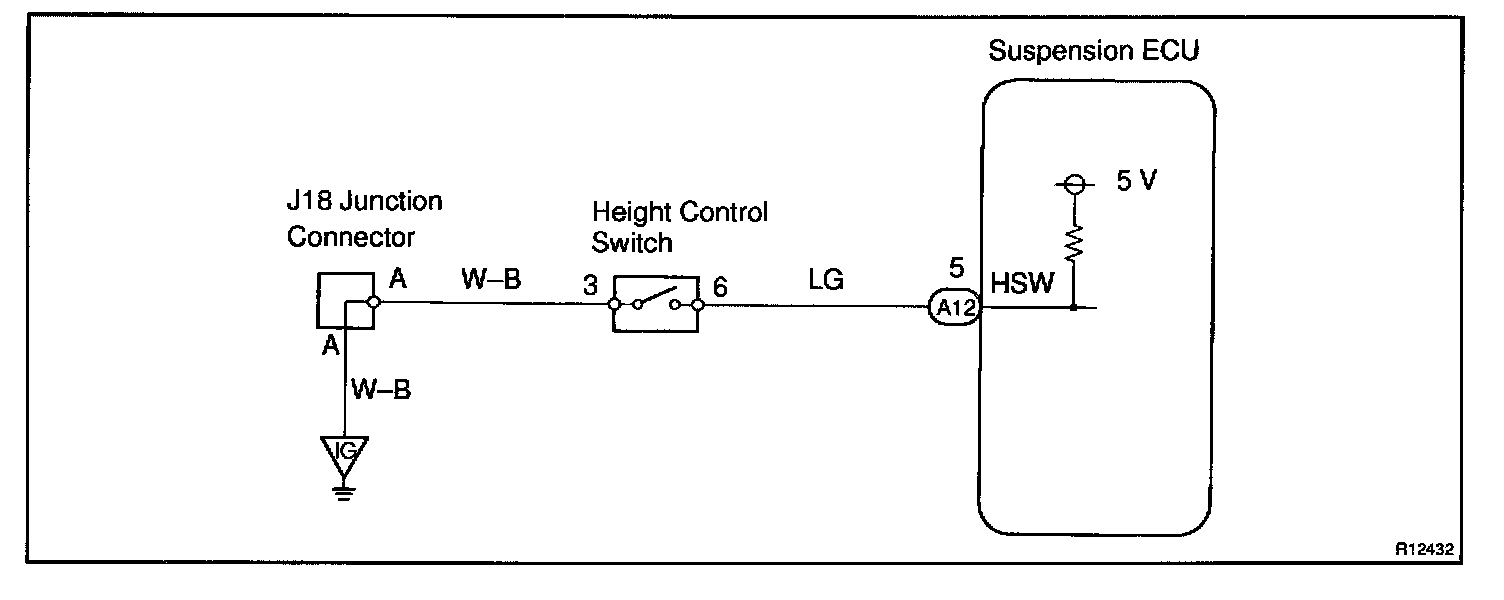

WIRING DIAGRAM

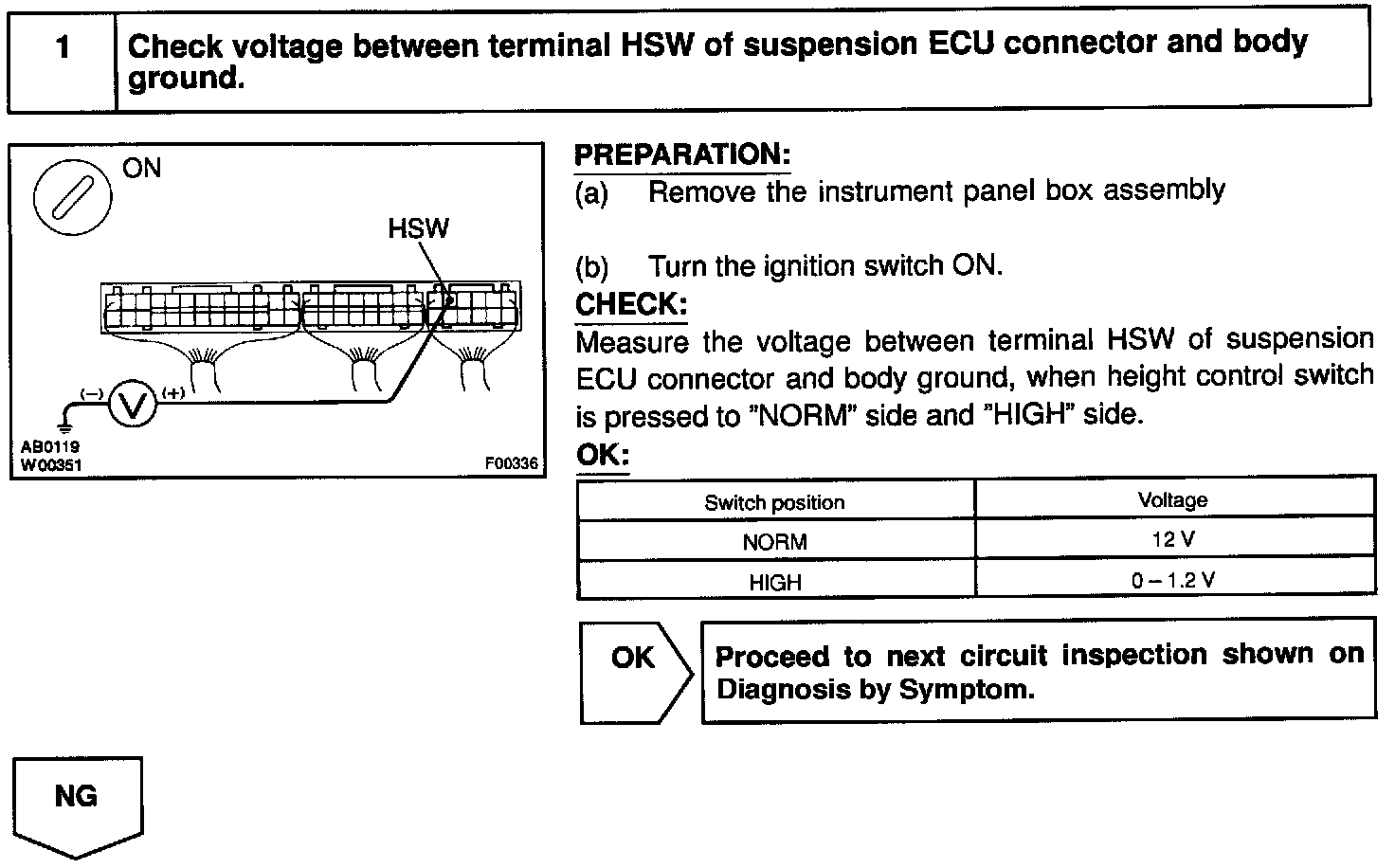

Step 1:

Step 2:

Step 3:

INSPECTION PROCEDURE
