DTC 52

CIRCUIT DESCRIPTION

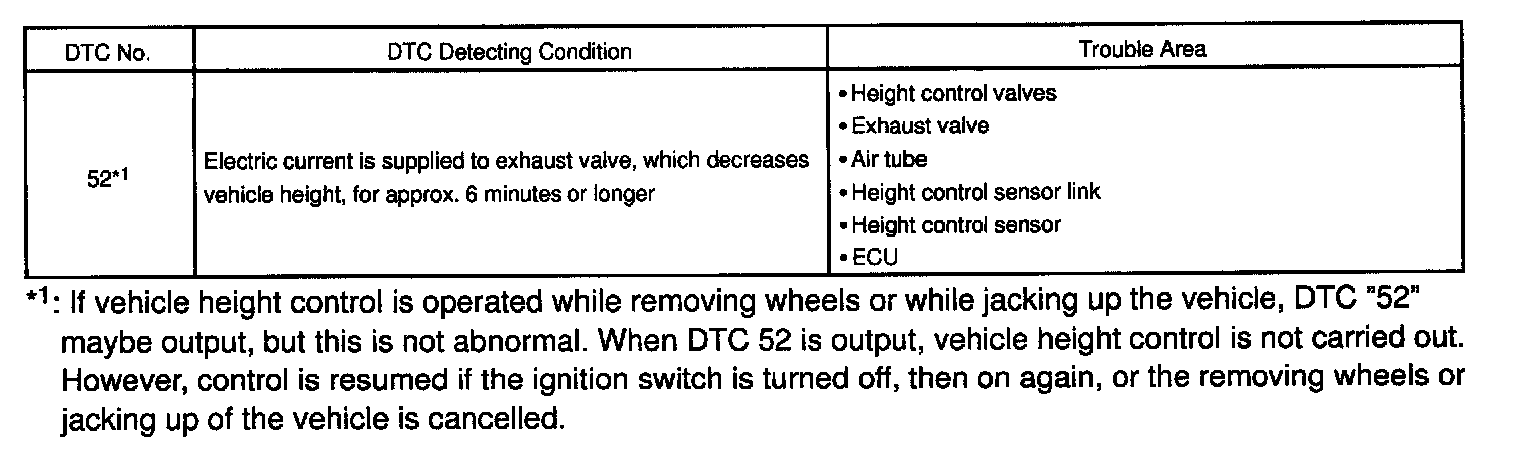

DETECTING CONDITIONS
*1: If vehicle height control is operated while removing wheels or while jacking up the vehicle, DTC "52" maybe output, but this is not abnormal. When DTC 52 is output, vehicle height control is not carried out. However, control is resumed if the ignition switch is turned off, then on again, or the removing wheels or jacking up of the vehicle is cancelled.

Step 1:

Step 2:

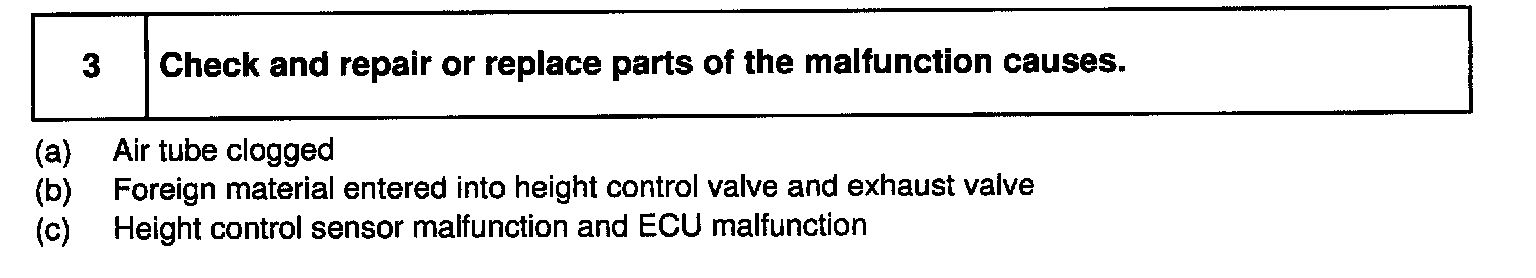

Step 3:

INSPECTION PROCEDURE
