DTC 14
CIRCUIT DESCRIPTIONInside each sensor, a brush integrated with the control sensor rotor shaft moves above the resister, proving linear output. The resistance value between the brush and resistor terminal changes in proportion to the shaft rotation angle, so the fixed voltage applied to the resistor by the ECU is modified by the sensor and output to the ECU as a voltage indication the shaft rotation angle.

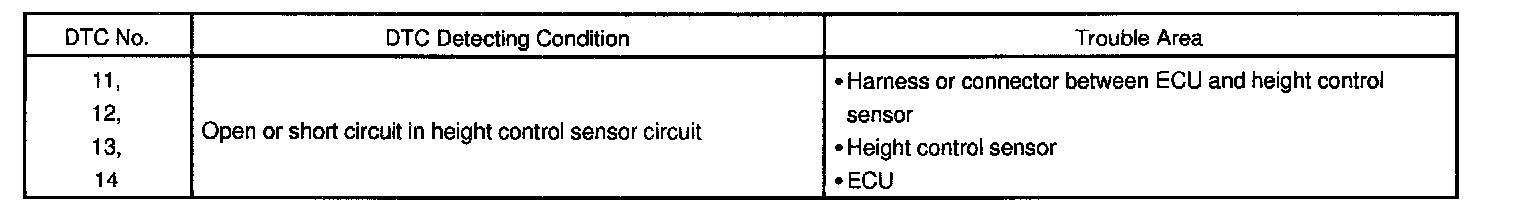

DETECTING CONDITIONS
HINT: Code 14 corresponds to the rear LH height control sensor circuit.
Once ECU stores DTC 11,12,13, or 14 in memory, vehicle height control, damping force control are not carried out until a normal signal is input to the ECU from the height control sensor.
However, control is resumed if the ignition switch is turned off, then on again.

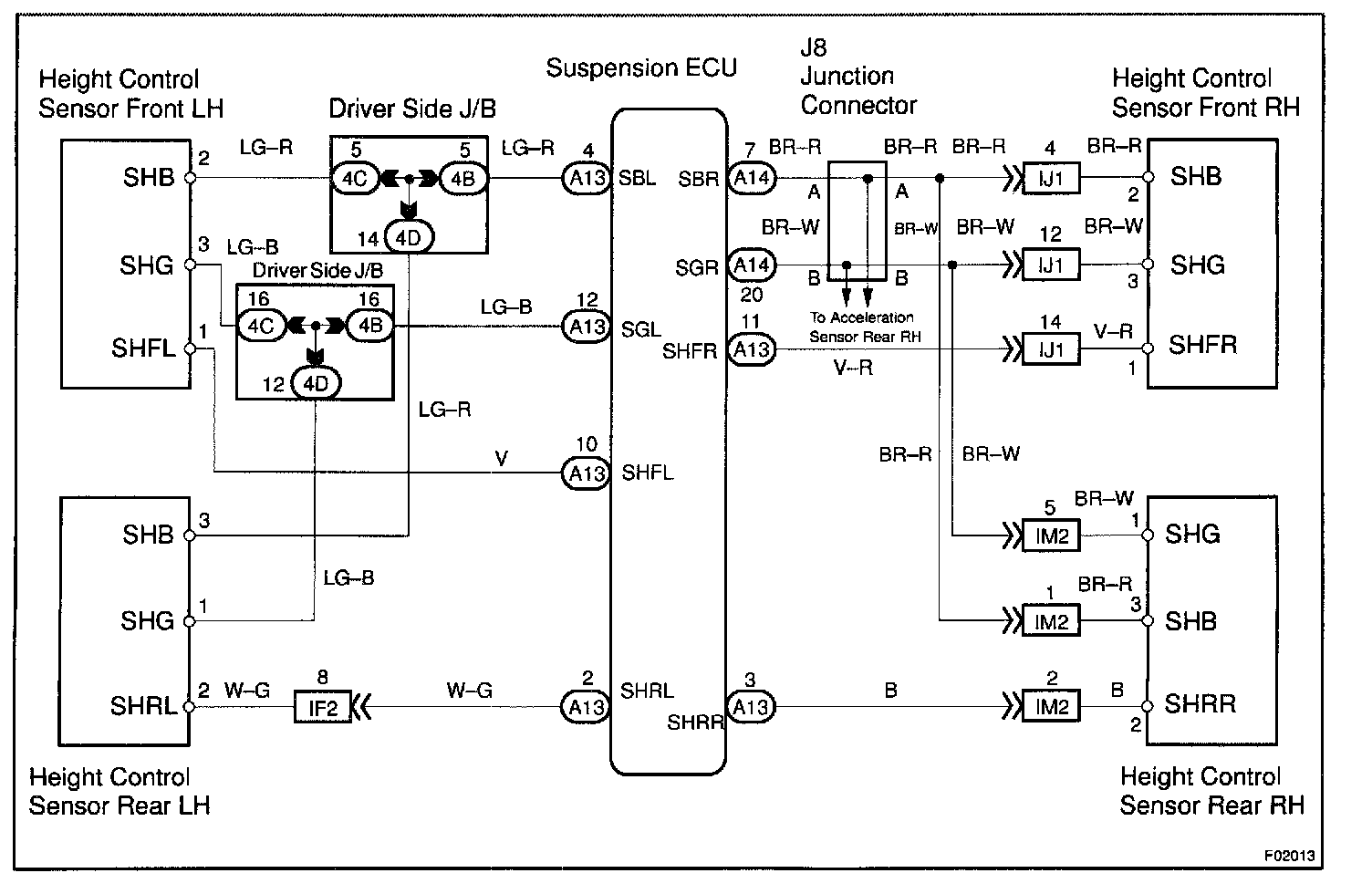

WIRING DIAGRAM

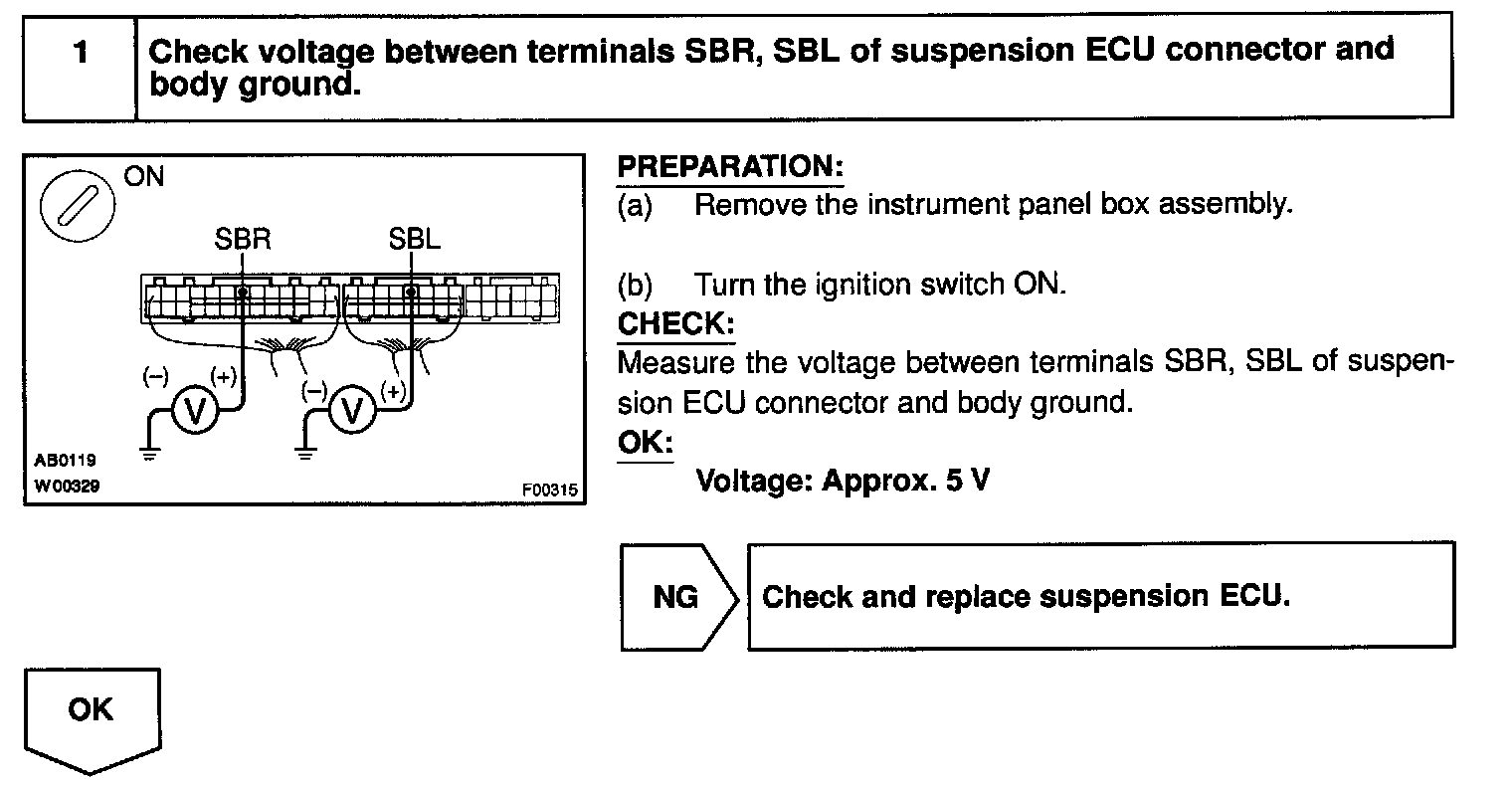

Step 1:

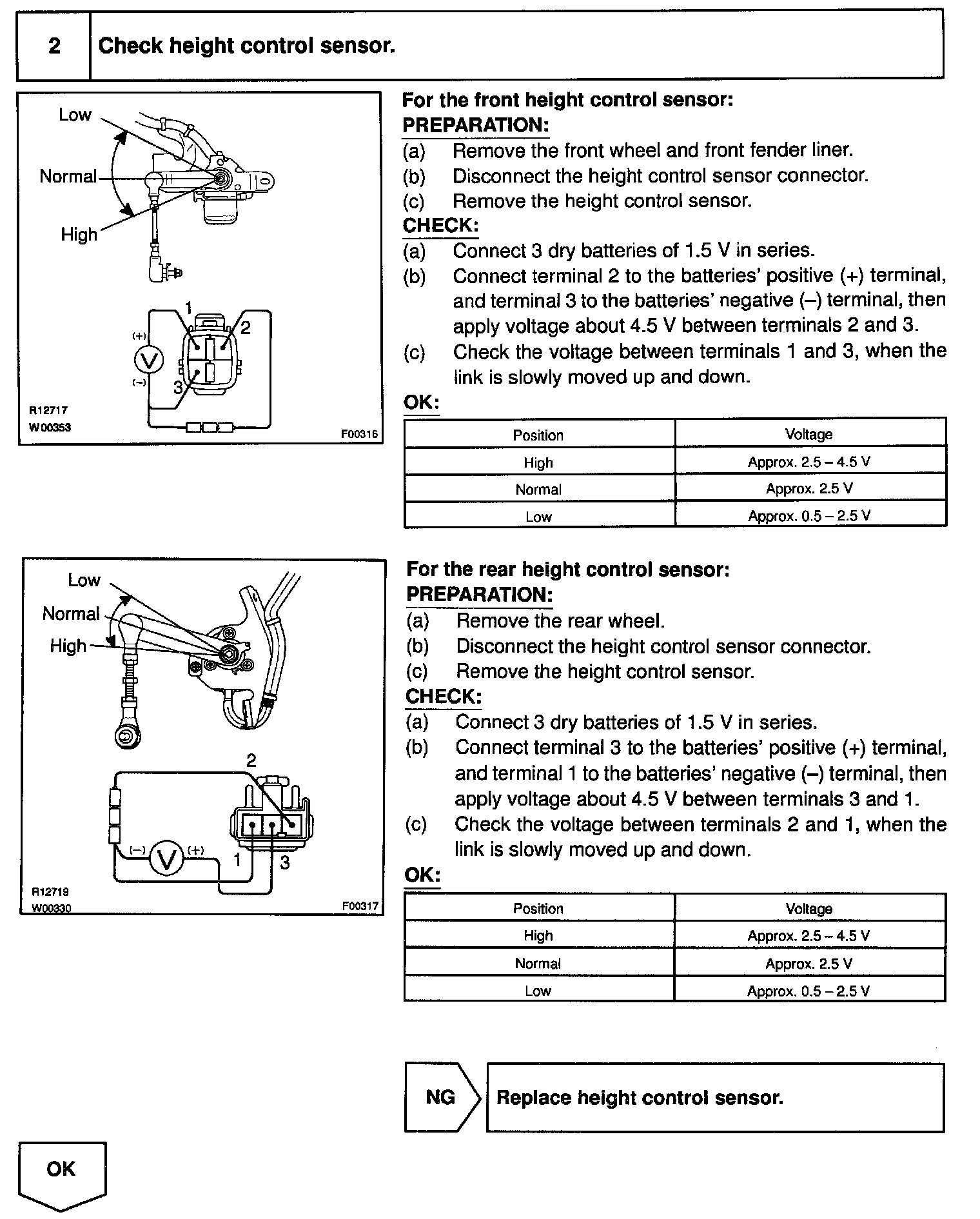

Step 2:

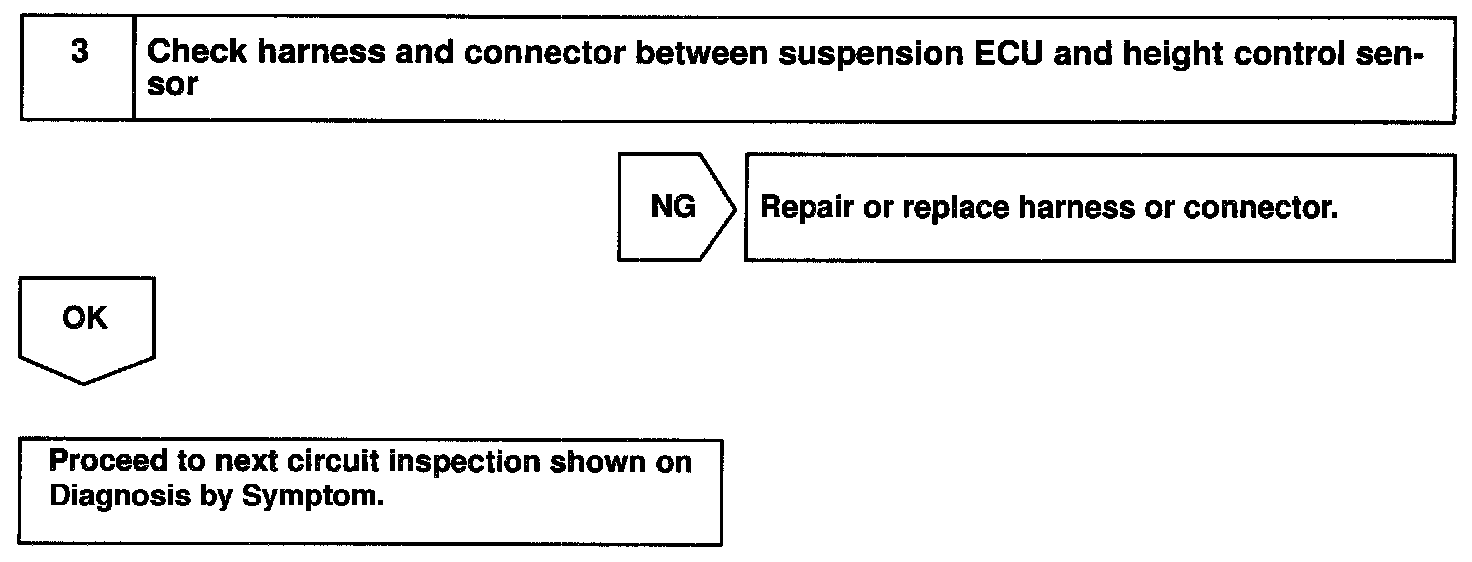

Step 3:
INSPECTION PROCEDURE
HINT: When DTC 14 is displayed, check rear LH height control sensor circuit.
