DTC 66

CIRCUIT DESCRIPTION
This DTC is output when +B or GND short occurs on instrument panel system communication bus. If +B or GND short is detected on instrument panel system communication bus, separate it by bus cut relay in body ECU to prevent while communication buses' failure.

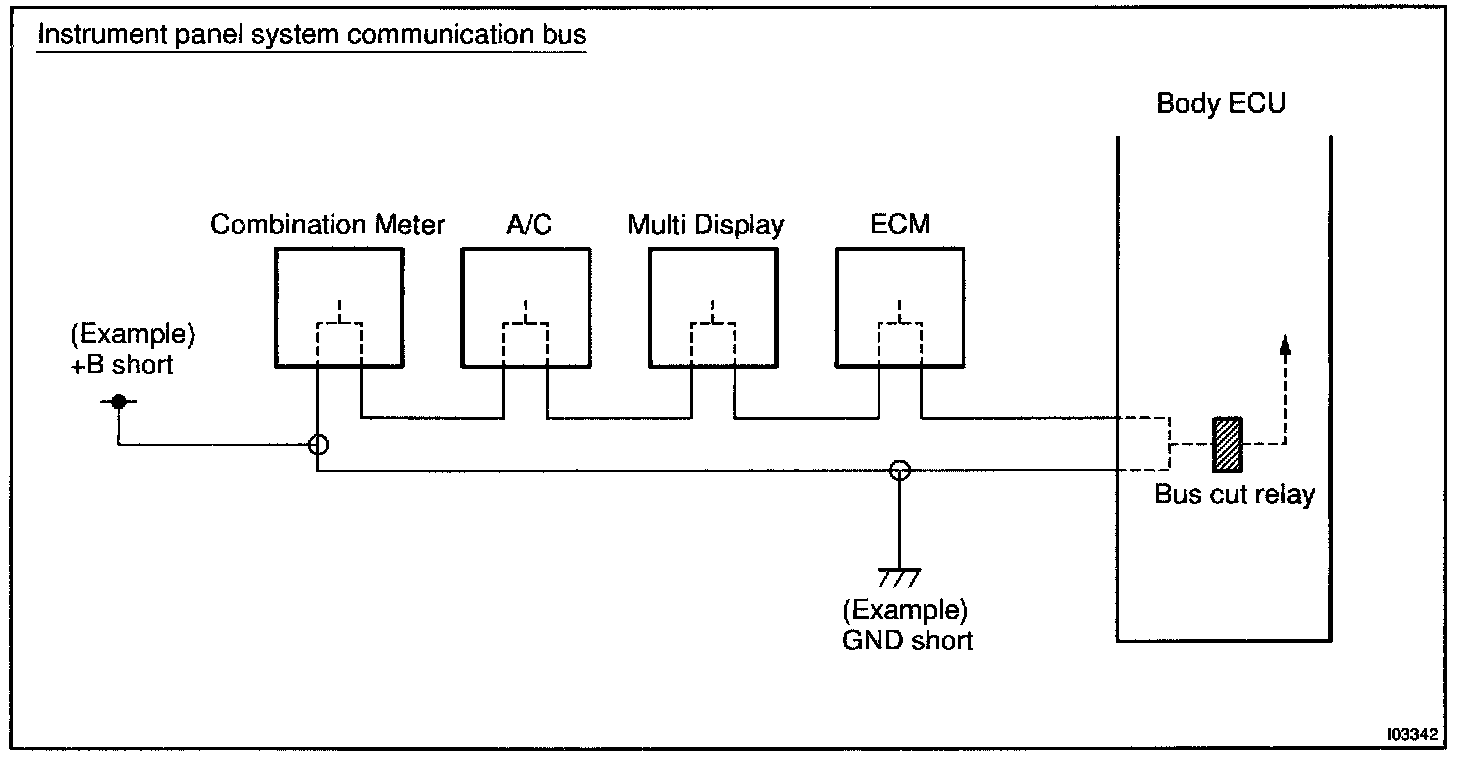

Wiring Diagram:

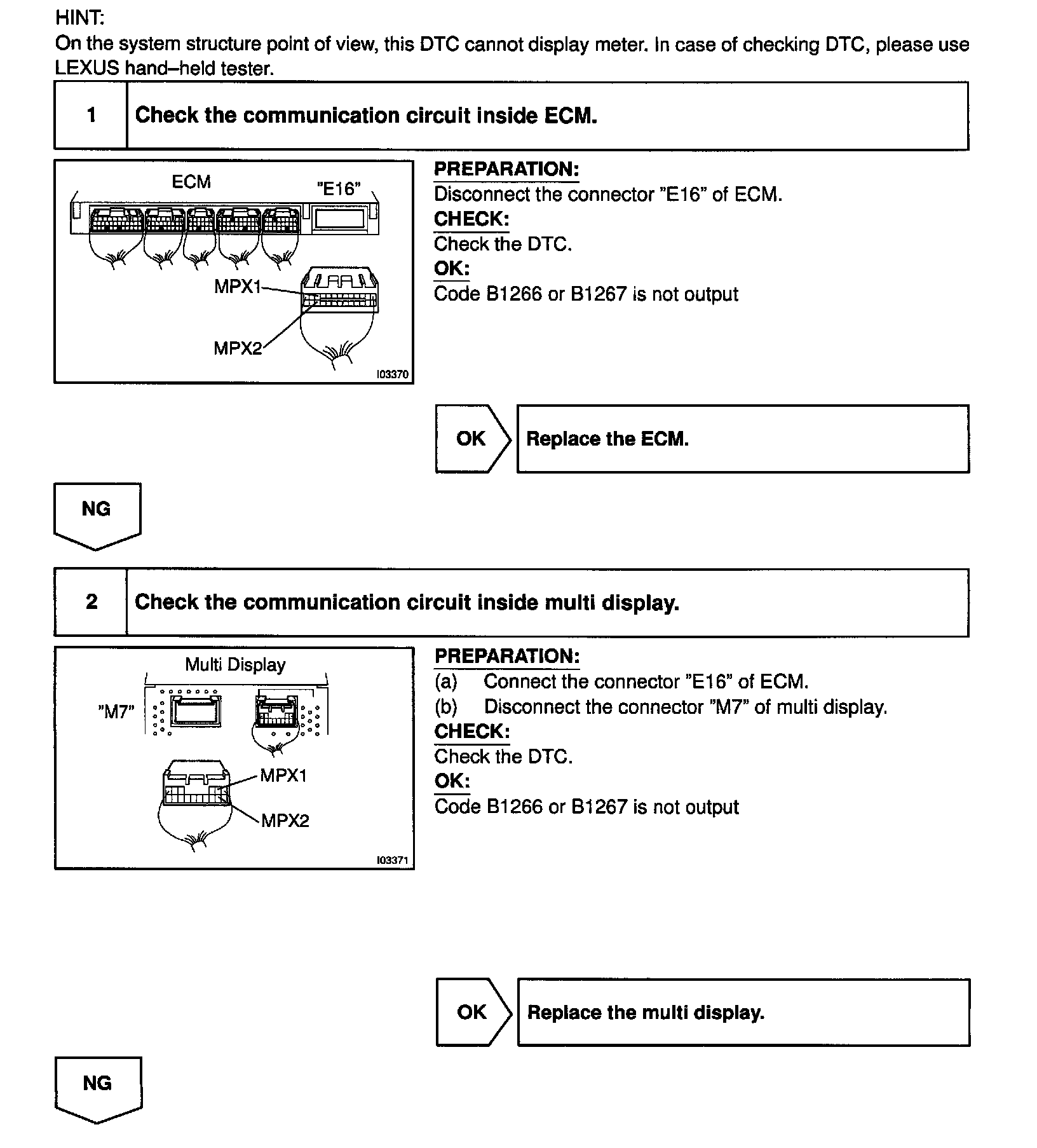

Steps 1 - 2:

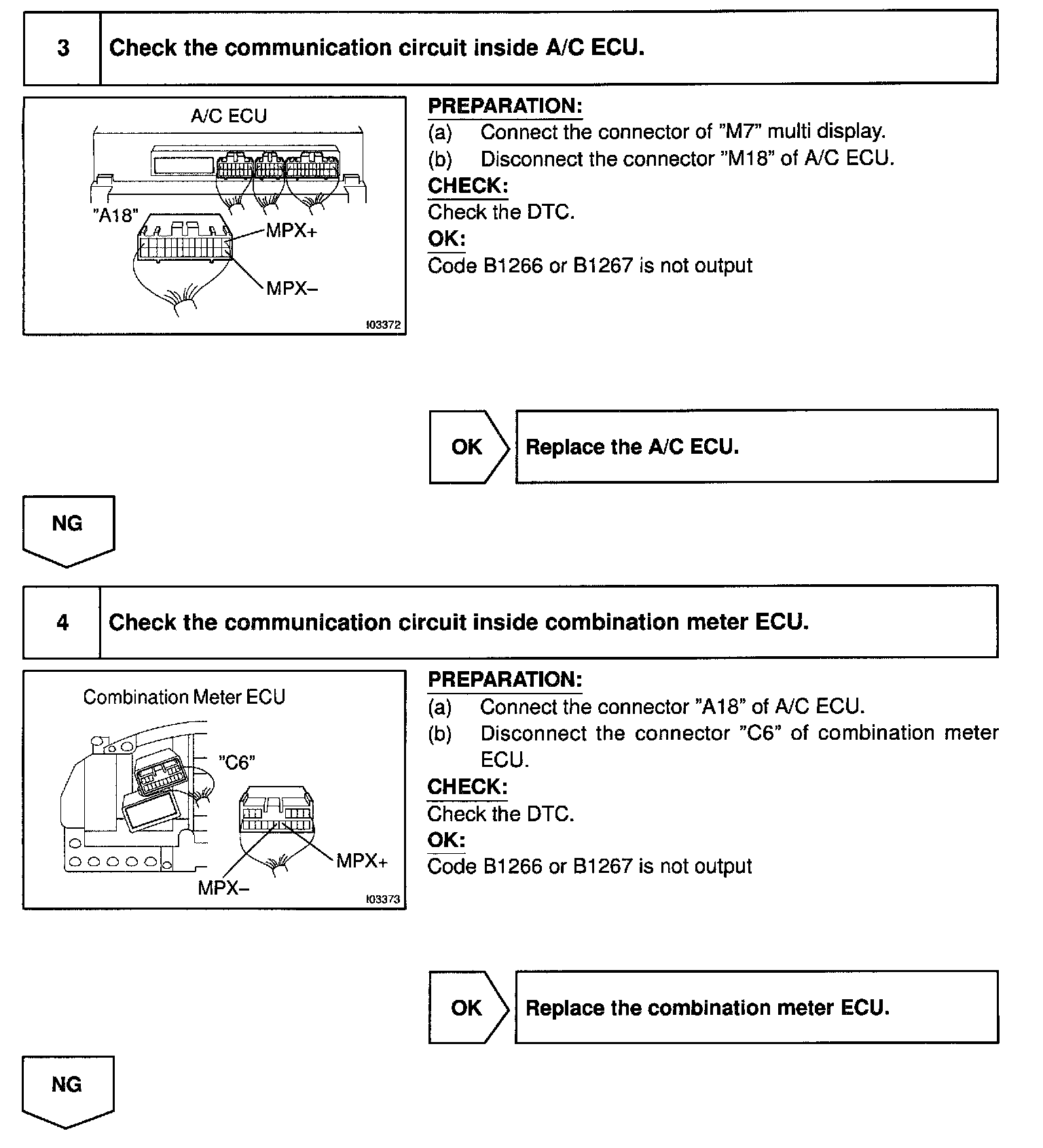

Steps 3 - 4:

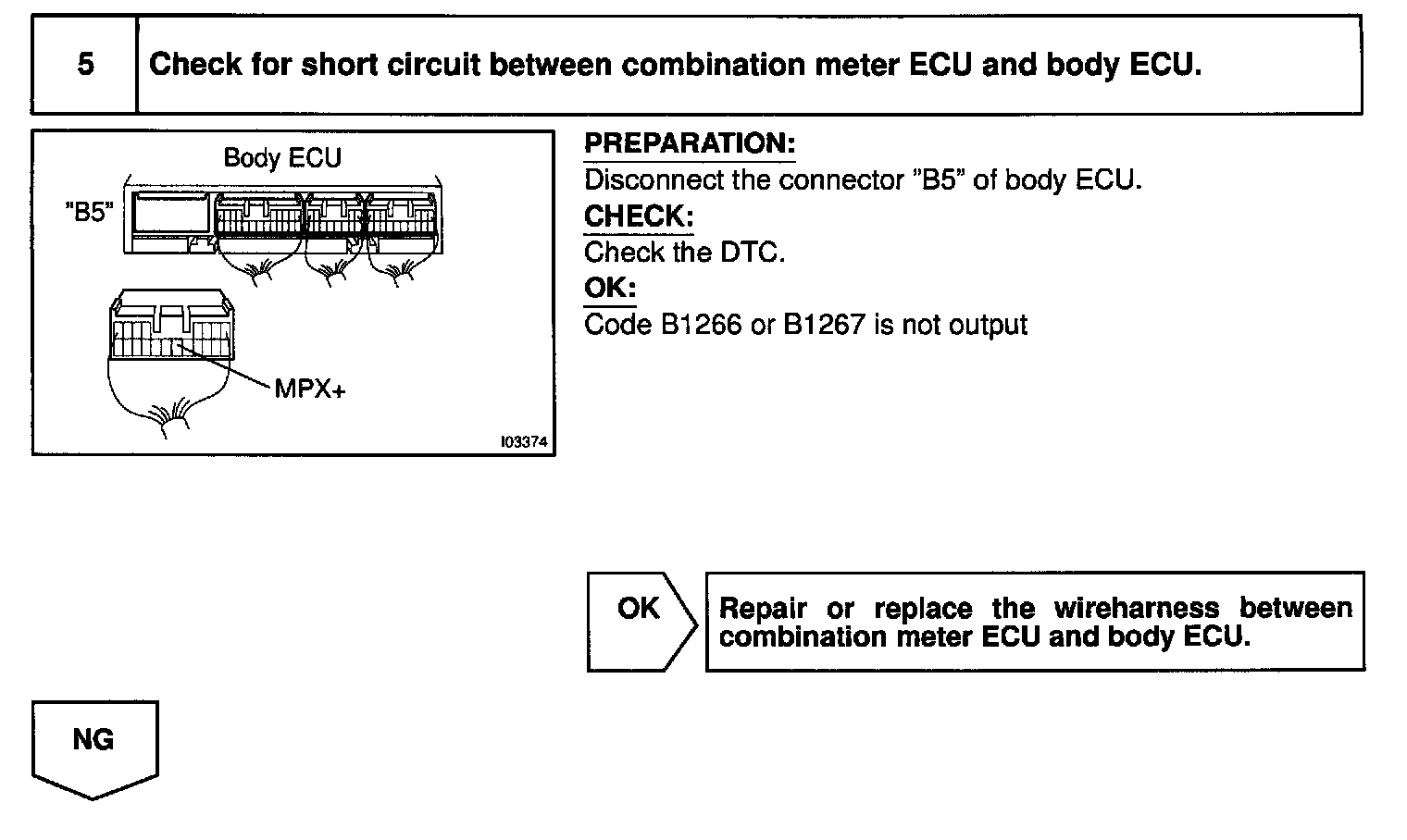

Step 5:

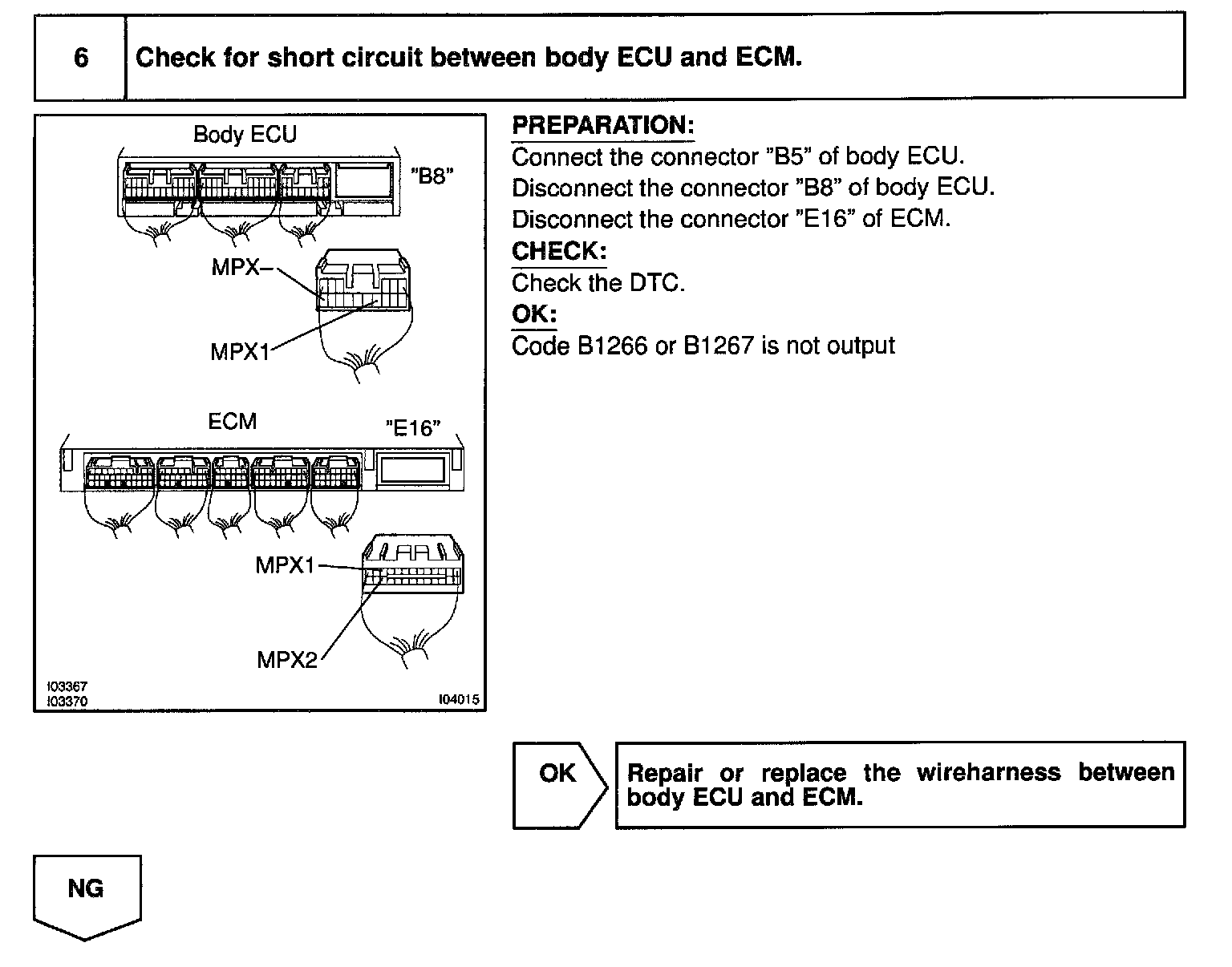

Step 6:

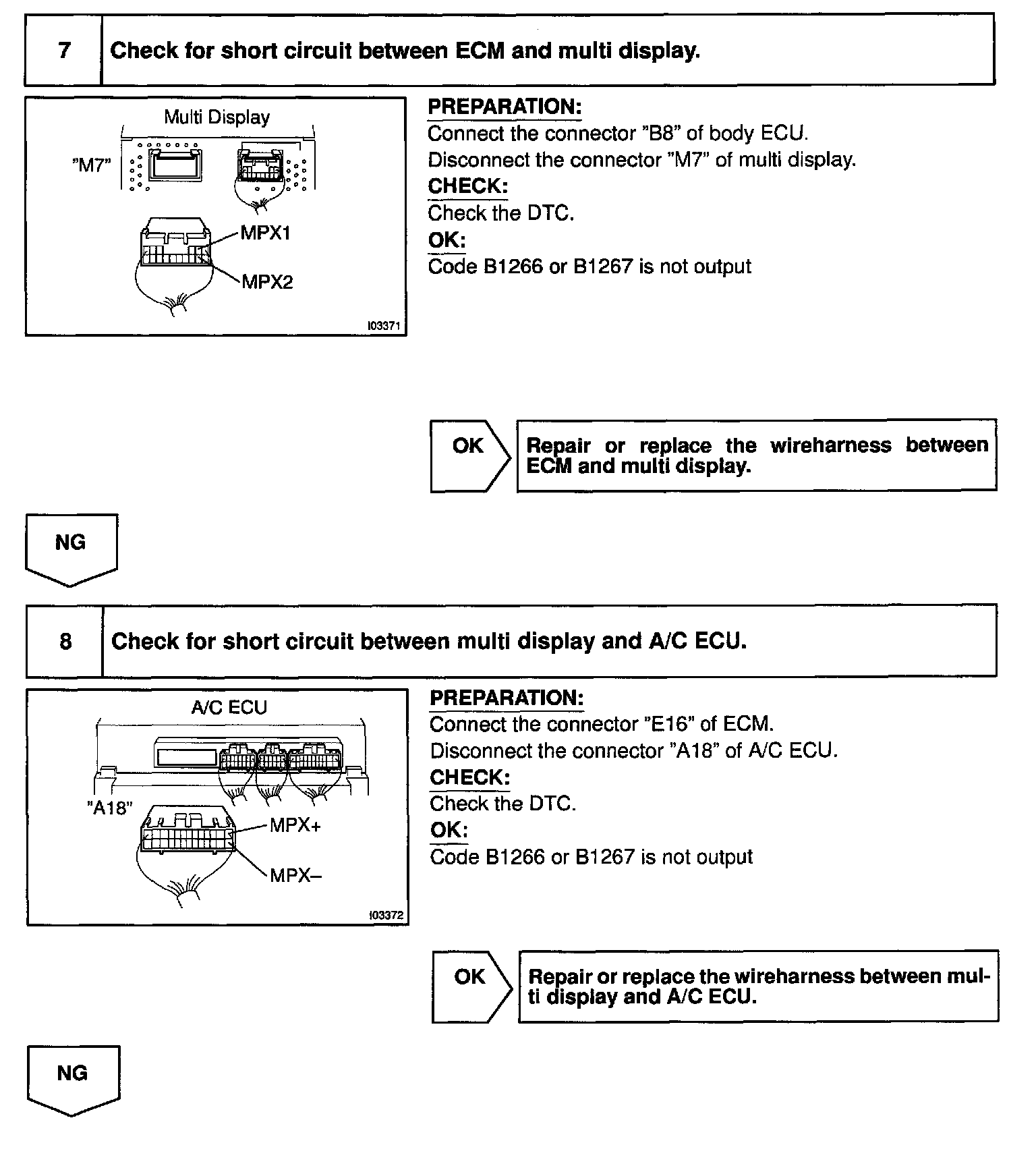

Steps 7 - 8:

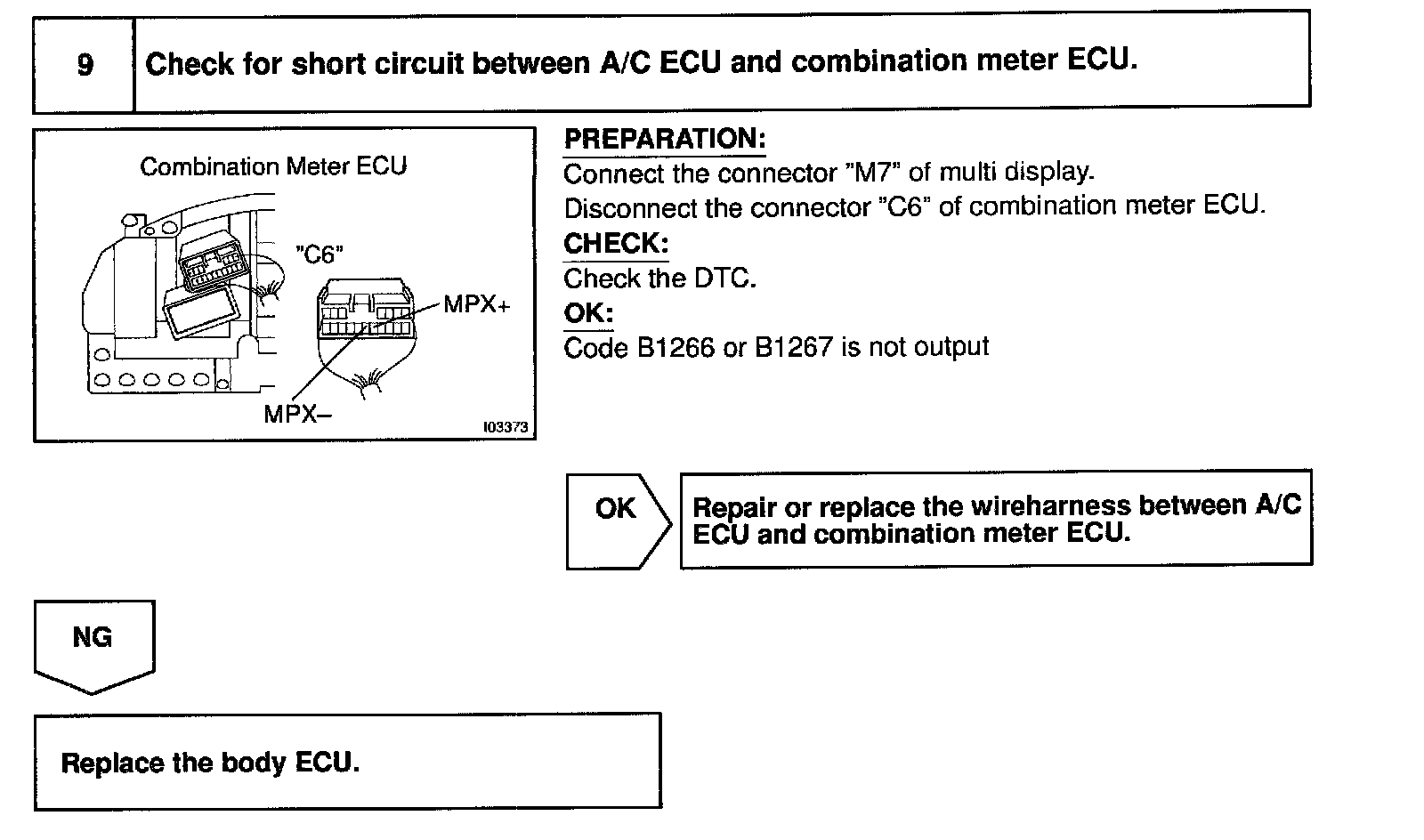

Step 9:

INSPECTION PROCEDURE
