Suspension Control ( Automatic - Electronic Level )

TEST DTC CHART

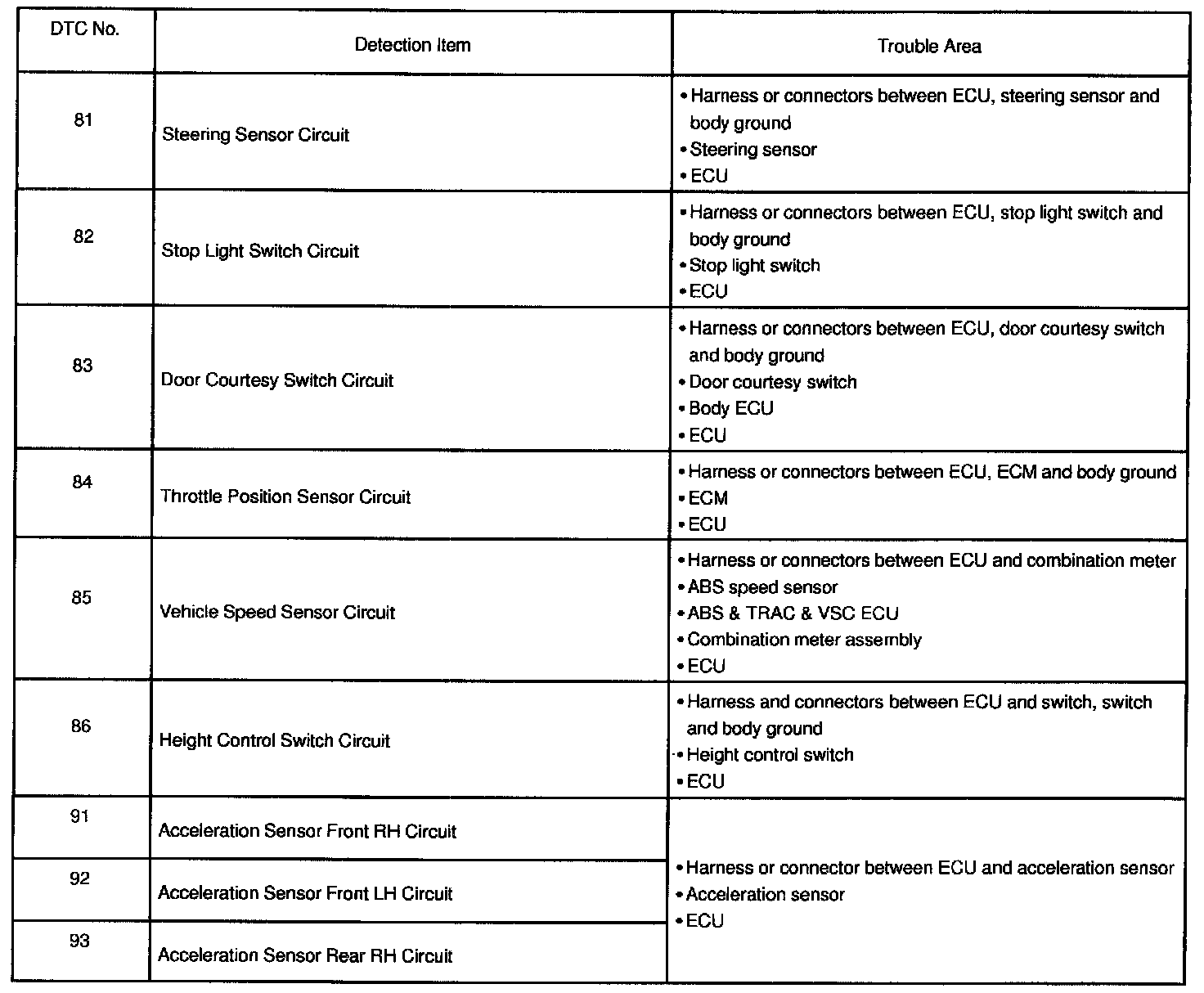

81 - 93:

If a malfunction code is displayed during the test DTC check, check the circuit listed for that code. For details of each code, refer to the respective "DTC NO." under "Trouble Code Diagnostic Procedures".

11 - 42:

51 - 75:

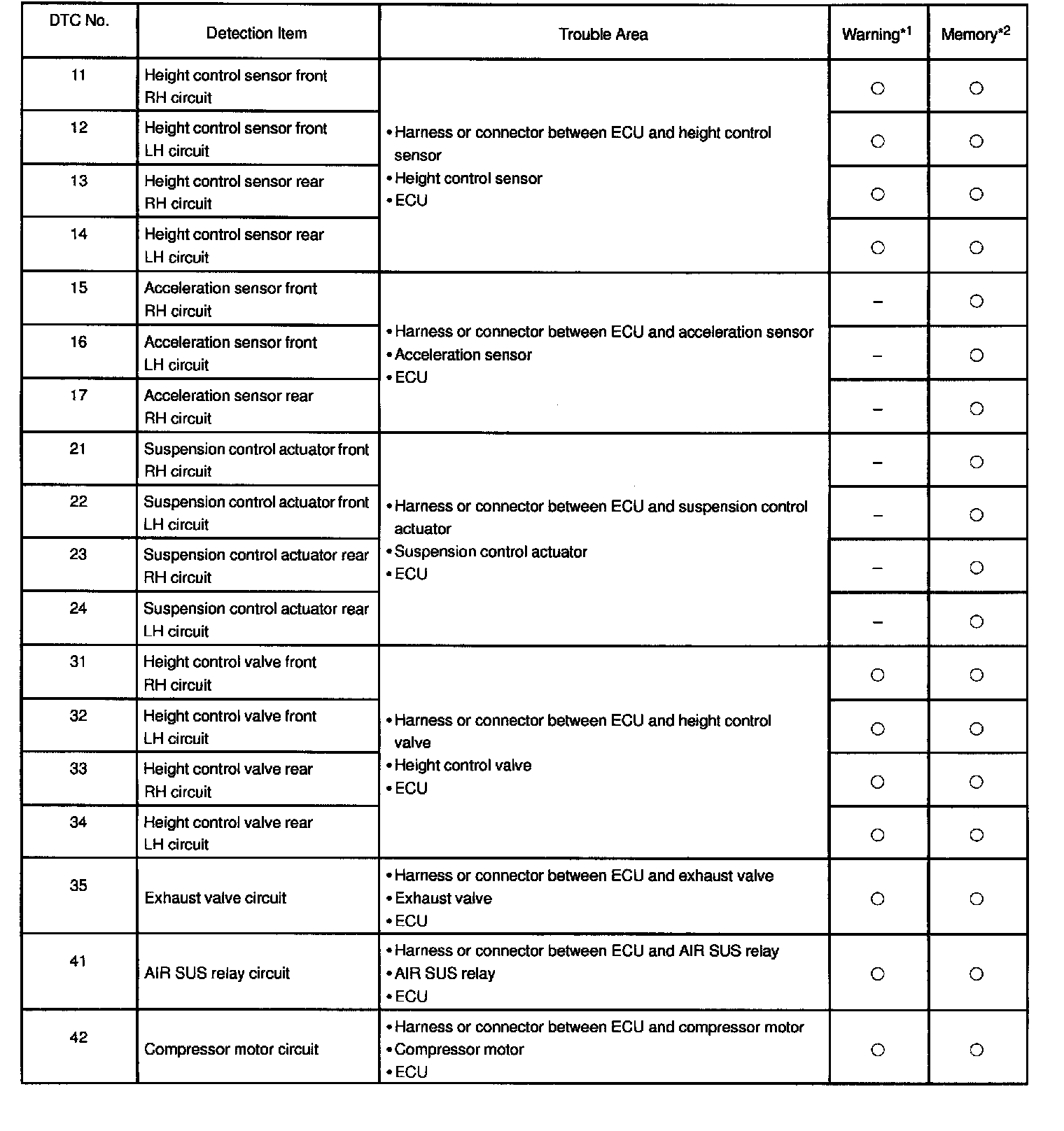

DIAGNOSTIC TROUBLE CODE CHART
If a malfunction code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to the respective "DTC NO." under "Trouble Code Diagnostic Procedures".

*1: For codes in the Warning column with a O mark, the height control indicator "HEIGHT HI" light blinks at 1 second intervals. For codes with the "-" mark, it does not blink.
*2: Codes with the 0 mark in the Memory column are stored in memory even when the ignition switch is off.

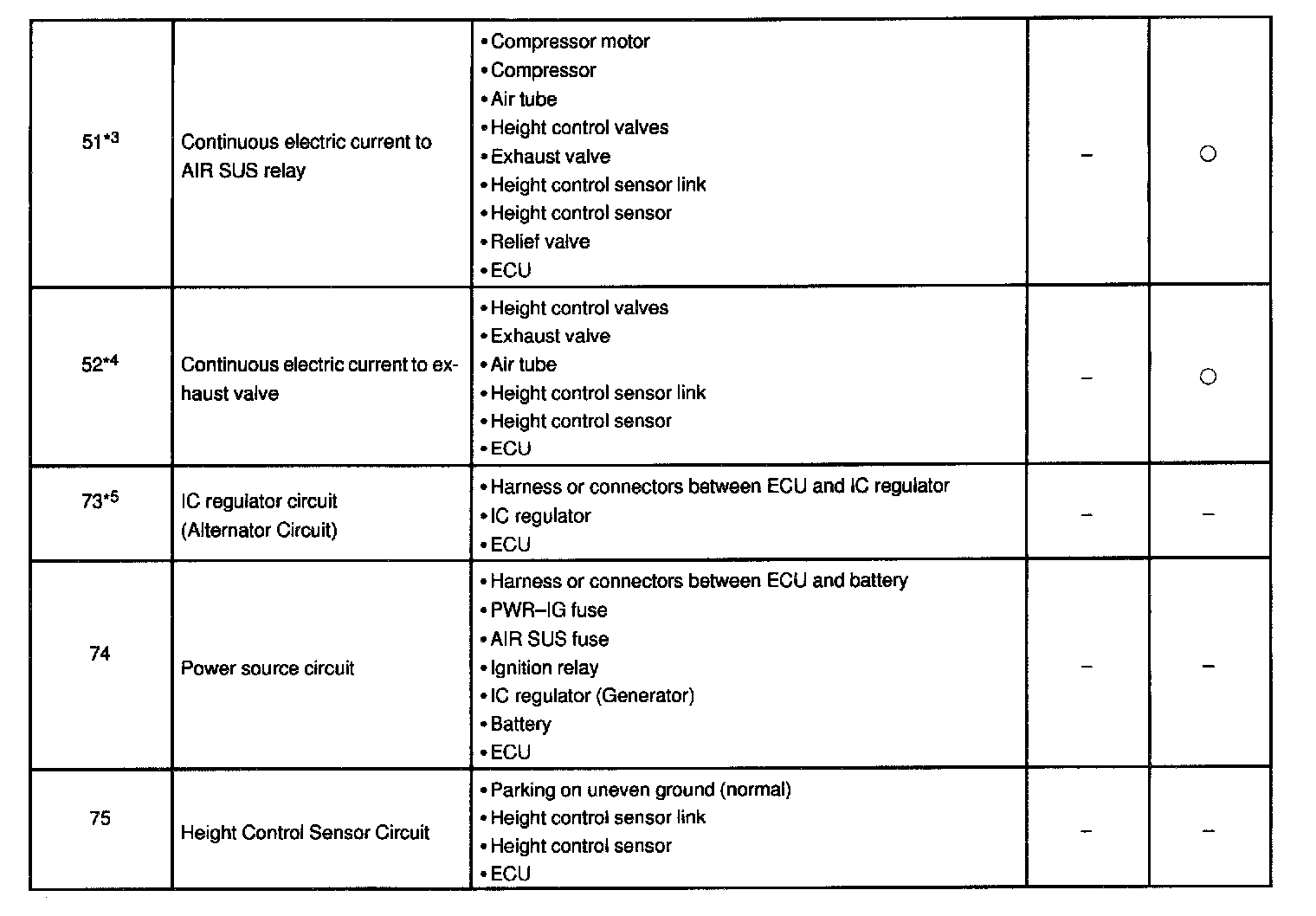

*3: Since the relief pressure of the compressed air is 980 kPa (10 kg/sq.cm, 142 psi), if vehicle height control is attempted on a steeply sloping road, when the vehicle is overloaded, or when the vehicle height jacked up with the engine is running, code "51" may be output and vehicle height control may be suspended. (This is not abnormal.) However, in this case, when detecting the first error, approx. 10 minutes after the ignition switch was turned ON, vehicle height control is resumed. When detecting the following errors it takes 70 minutes until the control is resumed.
*4: If vehicle height control is operated while removing wheels or while jacking up the vehicle, code "52" may be output, but this is not abnormal. When code "52" is output, vehicle height control is not carried out. However, control is resumed if the ignition switched is turned off, then on again, or the removing wheels or jacking up of the vehicle is cancelled.
*5: When the engine is not running, DTC "73" is output.
